DMW Industries
GVM upgrade

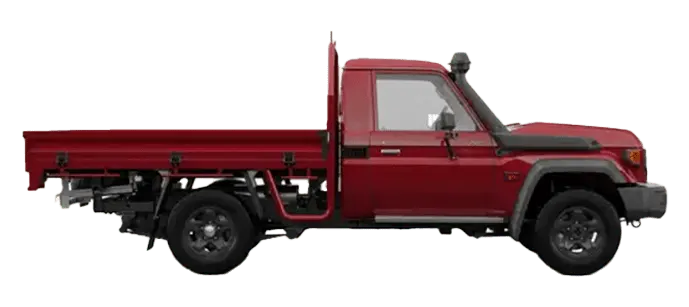

Toyota LandCruiser 76, 78 and 79 Series
DMW Industries's GVM upgrade for the Toyota LandCruiser 76, 78 and 79 Series: a complete approved kit that lifts the legal weight your vehicle can carry. We fit it in Miami and complete the certification paperwork.
- New GVM
- 3,999 kg or 4,499 kg
- Original GVM
- Not stated by DMW
- Lift front / rear
- 40 to 75 mm depending /
- Registration
- Pre or post rego
From $9,148 fitted and certified DMW package price: kit, fitting and certification.
- ★ 4.9 from 1,732 Google reviews of The Garage Miami, home of Opposite Lock Gold Coast
- Opposite Lock network member, nationwide warranty
- Fitted in our Miami workshop. We only fit parts we supply.
- Zip and Afterpay
Options

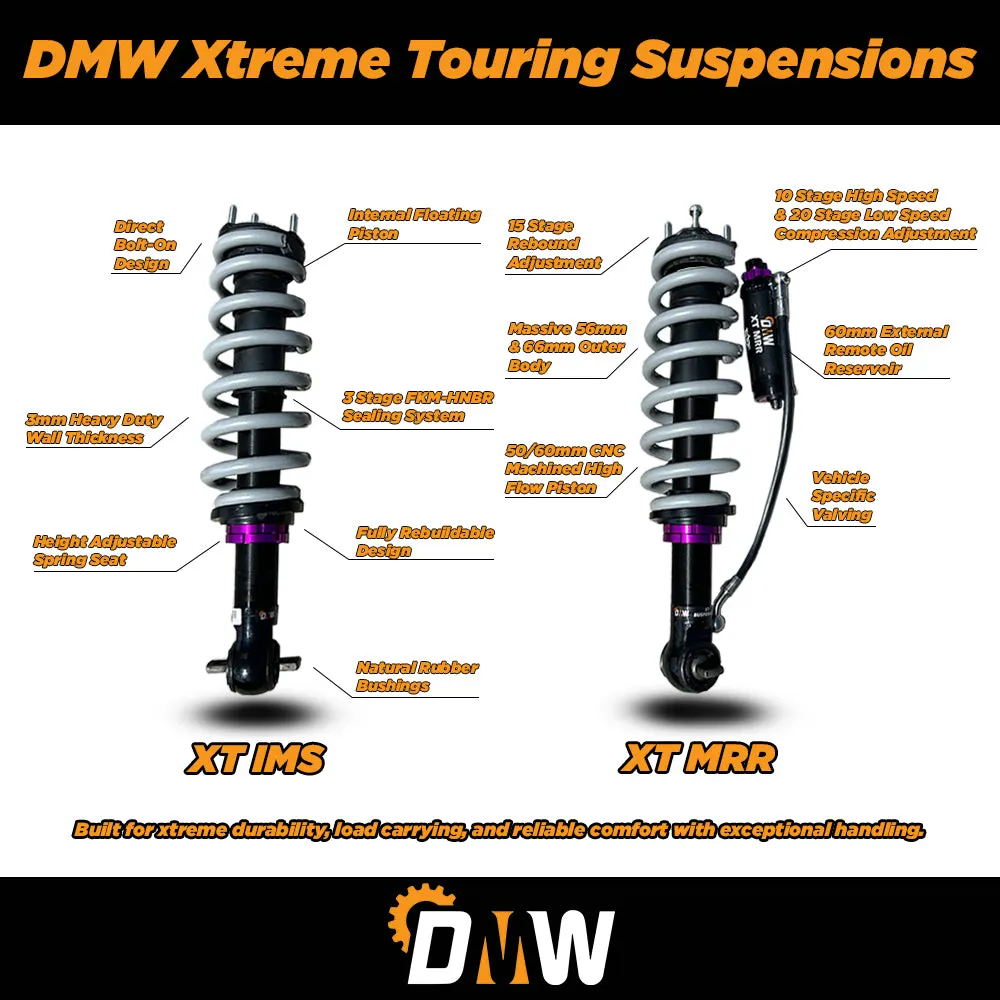

Suspension based upgrade with IMS or MRR shocks for touring and work.
For the heaviest builds; adds new diff housing, track correction, bracing and brake upgrades.
Moves the rear wheels back so less load sits behind the axle; DMW's top recommended add on.
Simple, no nonsense monotube shock for most touring and work builds.
For owners who want to tune damping for heavy loads and rough, corrugated roads.
Ready to book it in? Tell us your vehicle and what you carry, and we text you a fitted price within one business day.
Get your fitted priceCall (07) 5572 1711Front end
Front components
Rear end
Rear components
Specifications
| New GVM | 3,999 kg or 4,499 kg |
|---|---|
| Rear axle | 2,900 kg (4,499 kg kit); not stated for 3,999 kg kit |
| Lift front | 40 to 75 mm depending on load and distribution |
| Lift rear | 40 to 75 mm depending on load and distribution |
| Registration | Both (pre registration under SSM federal approval with extra compliance plate; post registration via state engineer using the federal data). Some state and territory limits apply post registration to lift, wheel size and offset |
| Approval | Federally approved SSM (DMW is a Second Stage Manufacturer). Approval number not published on the DMW site. |
| Wheels and tyres | Up to 35 inch |

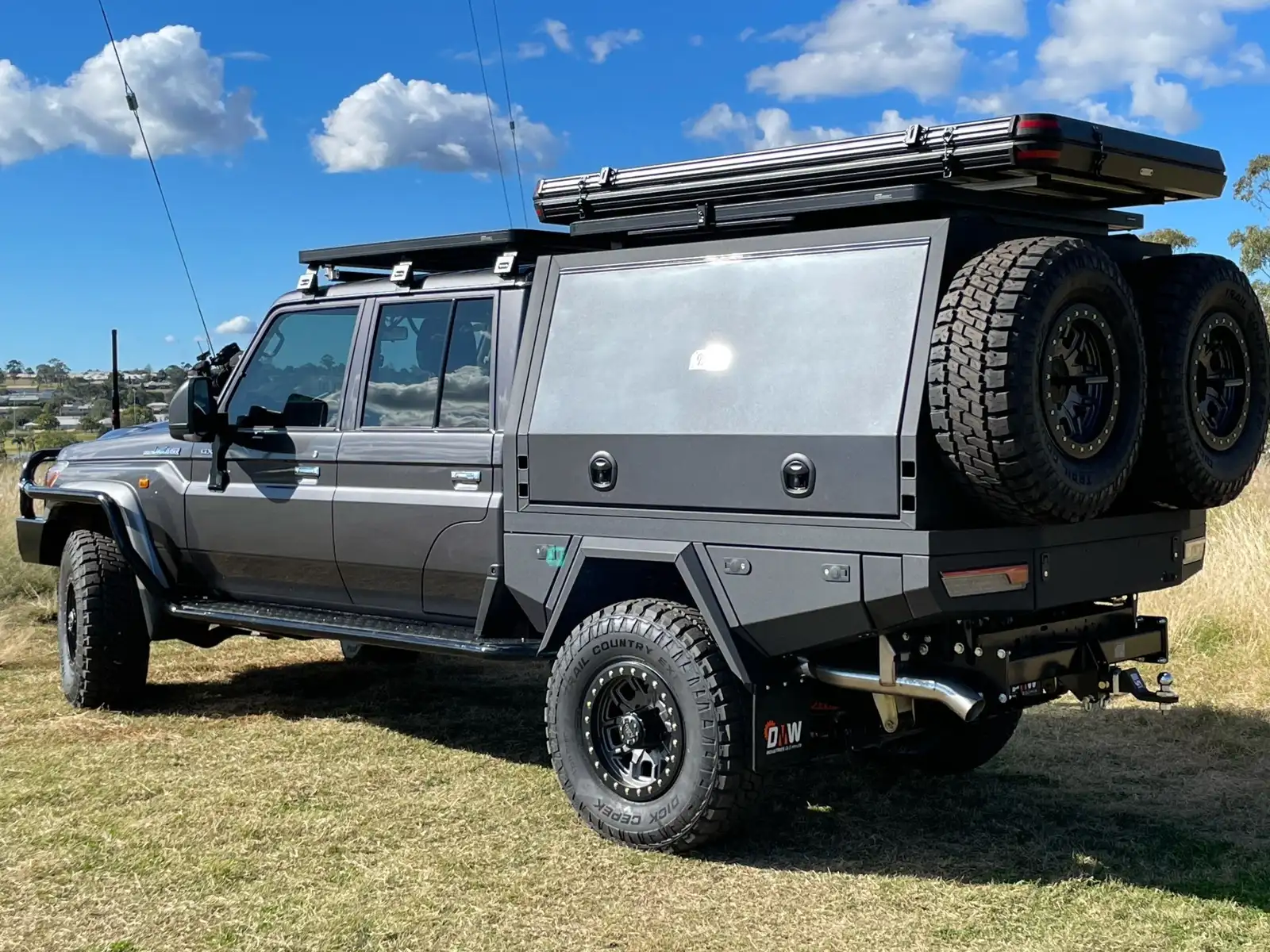

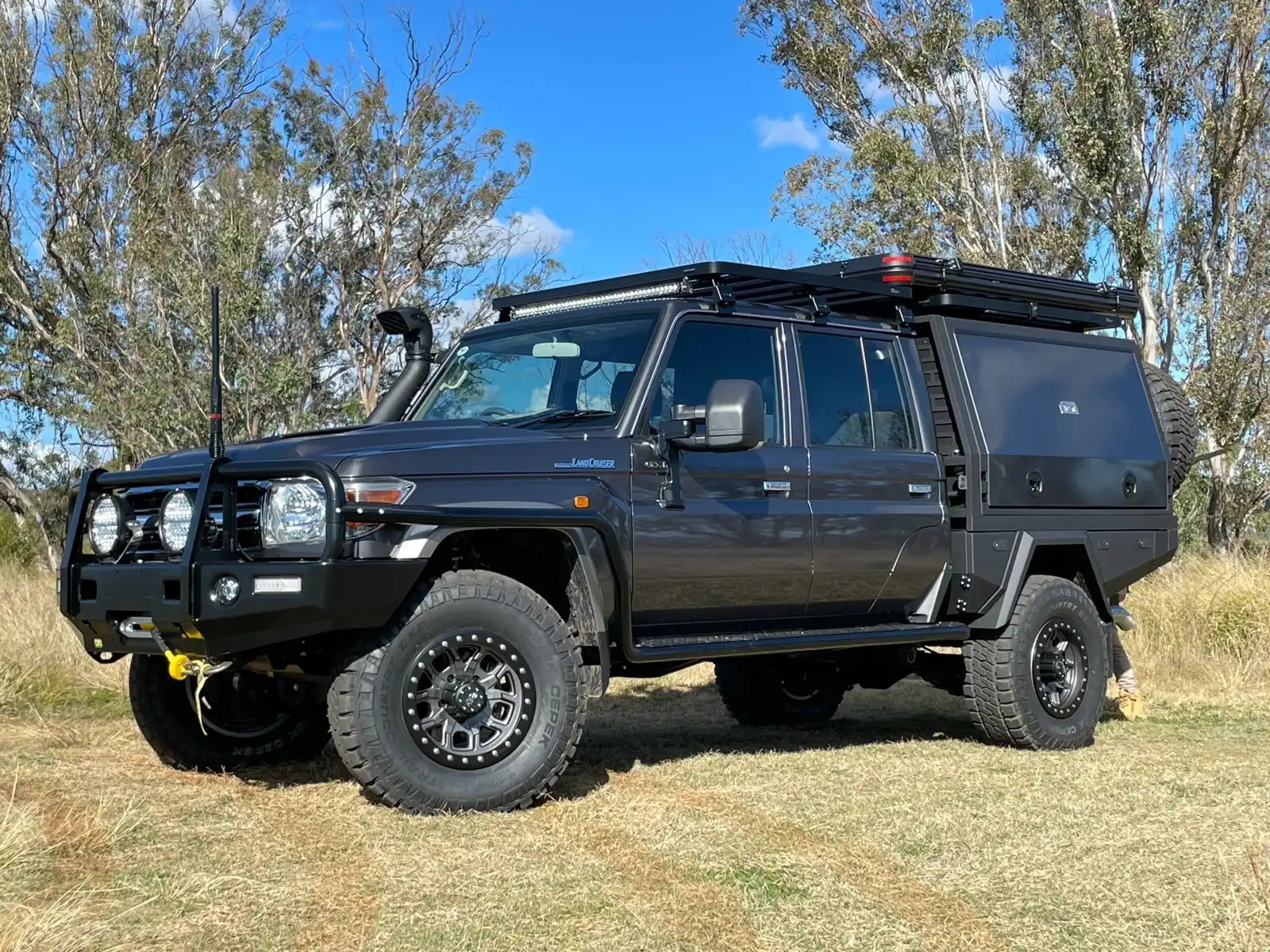

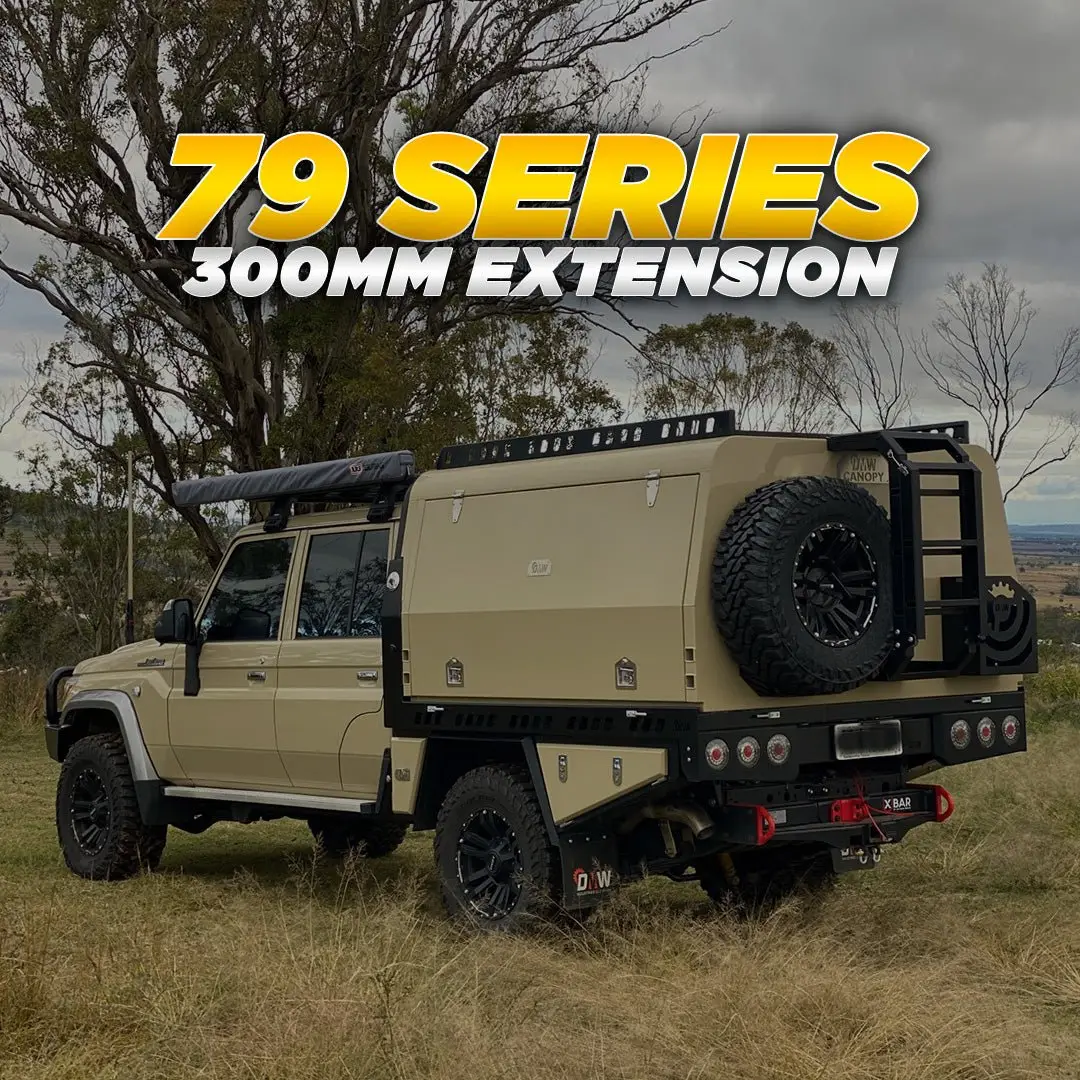

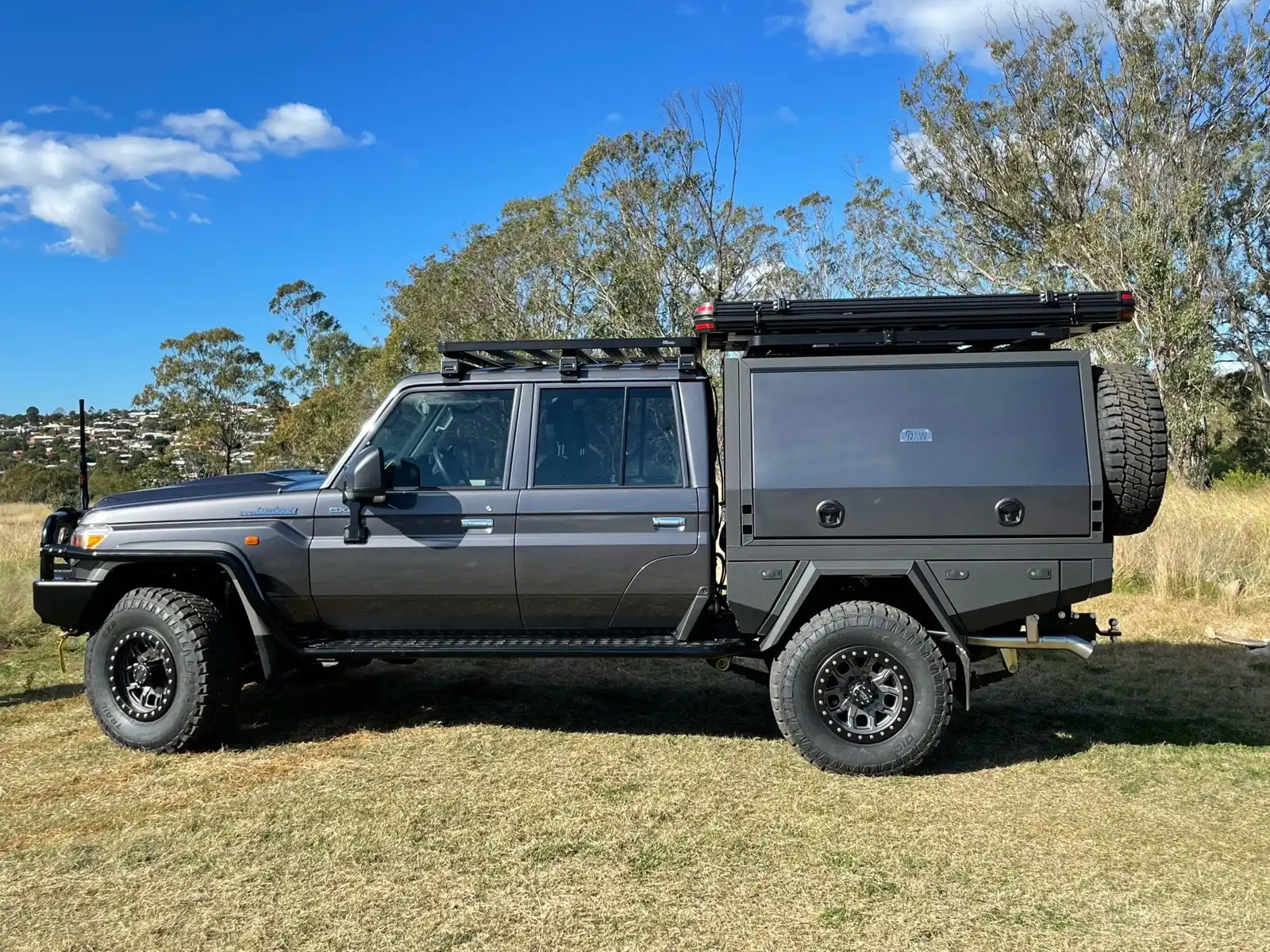

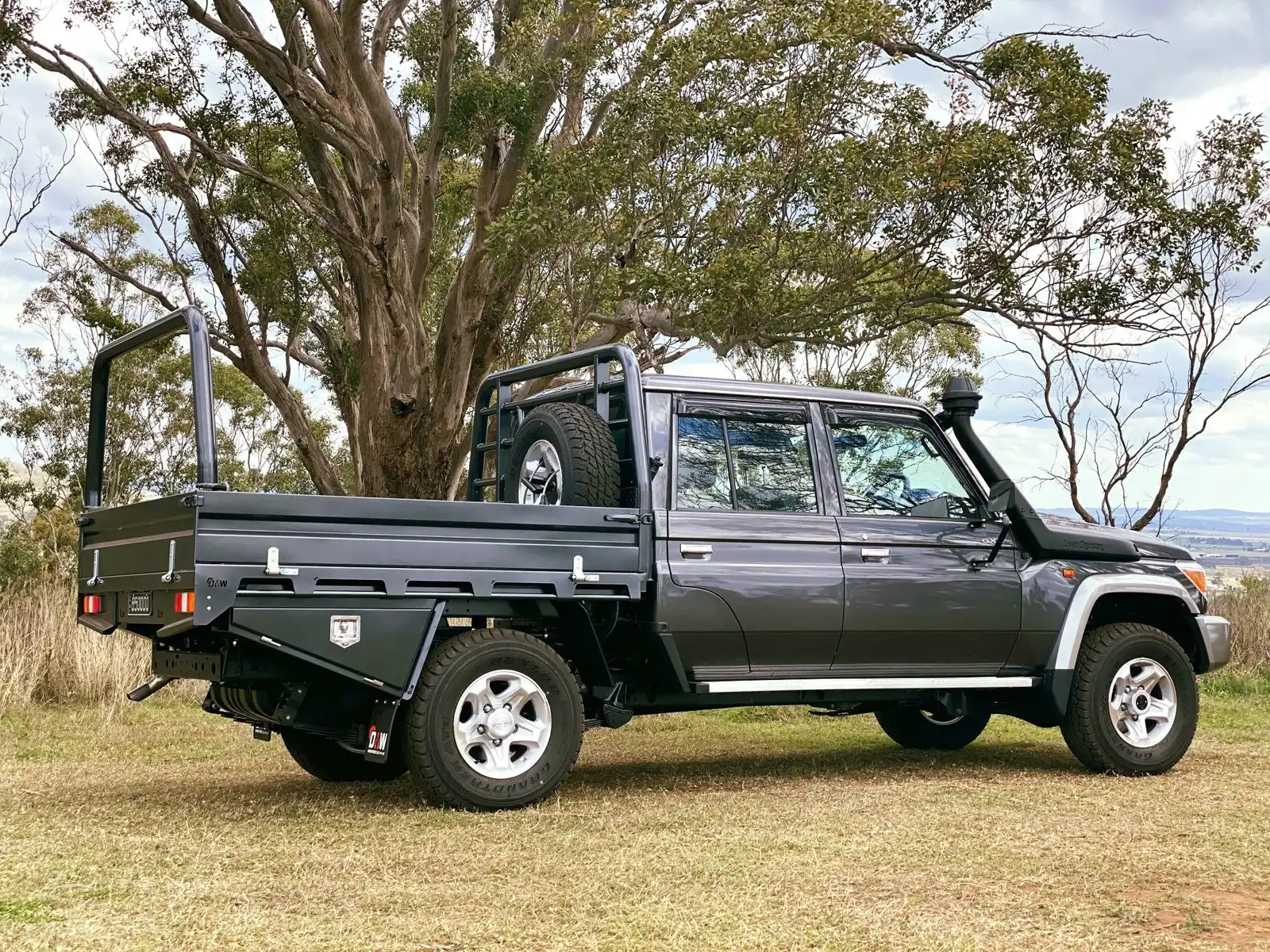

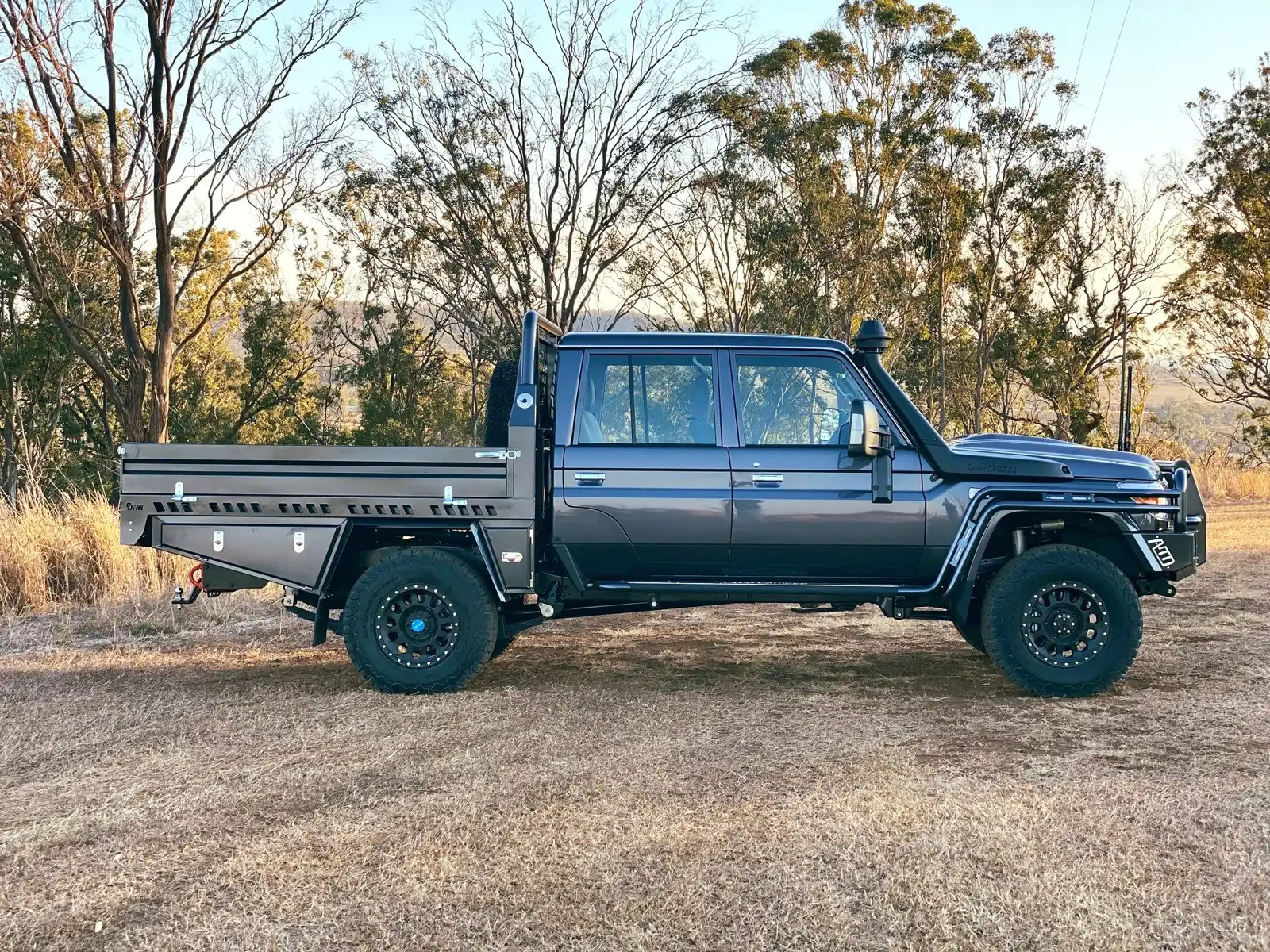

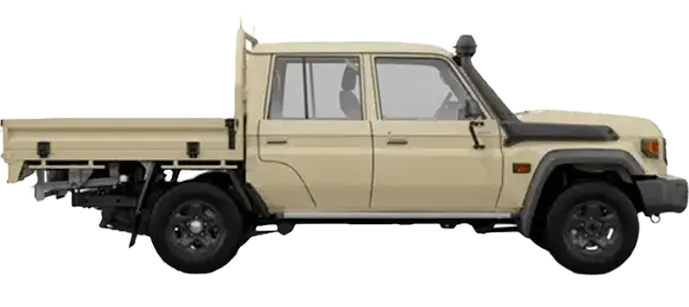

| Chassis extension | 300 mm or 600 mm for 79 dual cab, with either kit |
Warranty
DMW Industries warranty
For offline purchases, please refer to the warranty outlined on your signed and accepted quote and refer to the terms and conditions.
Fitted by us in Miami and backed by the Opposite Lock network nationwide.
Fitted and certified in Miami
We fit and certify it on site
We fit DMW Industries GVM upgrades at our Miami workshop and complete the certification on site, so you drive away with the paperwork done.
An approved GVM kit has to be fitted complete, under its own kit part number, to be certified. We fit every part in the approved kit for your exact vehicle, and nothing is swapped or left out.
Ready to book it in? Tell us your vehicle and what you carry, and we text you a fitted price within one business day.
Get your fitted priceCall (07) 5572 1711Video
