Outback Armour
GVM upgrade

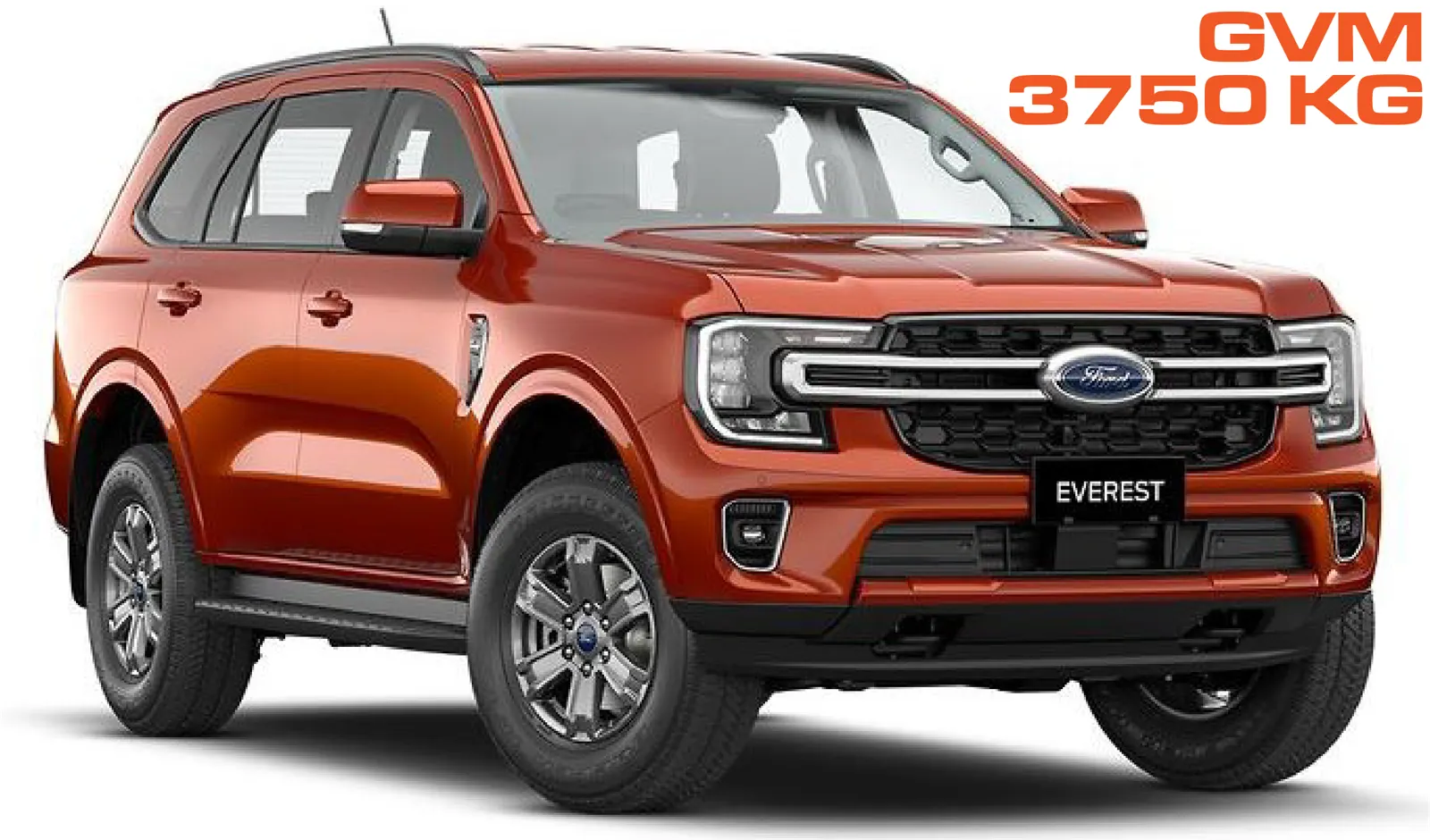

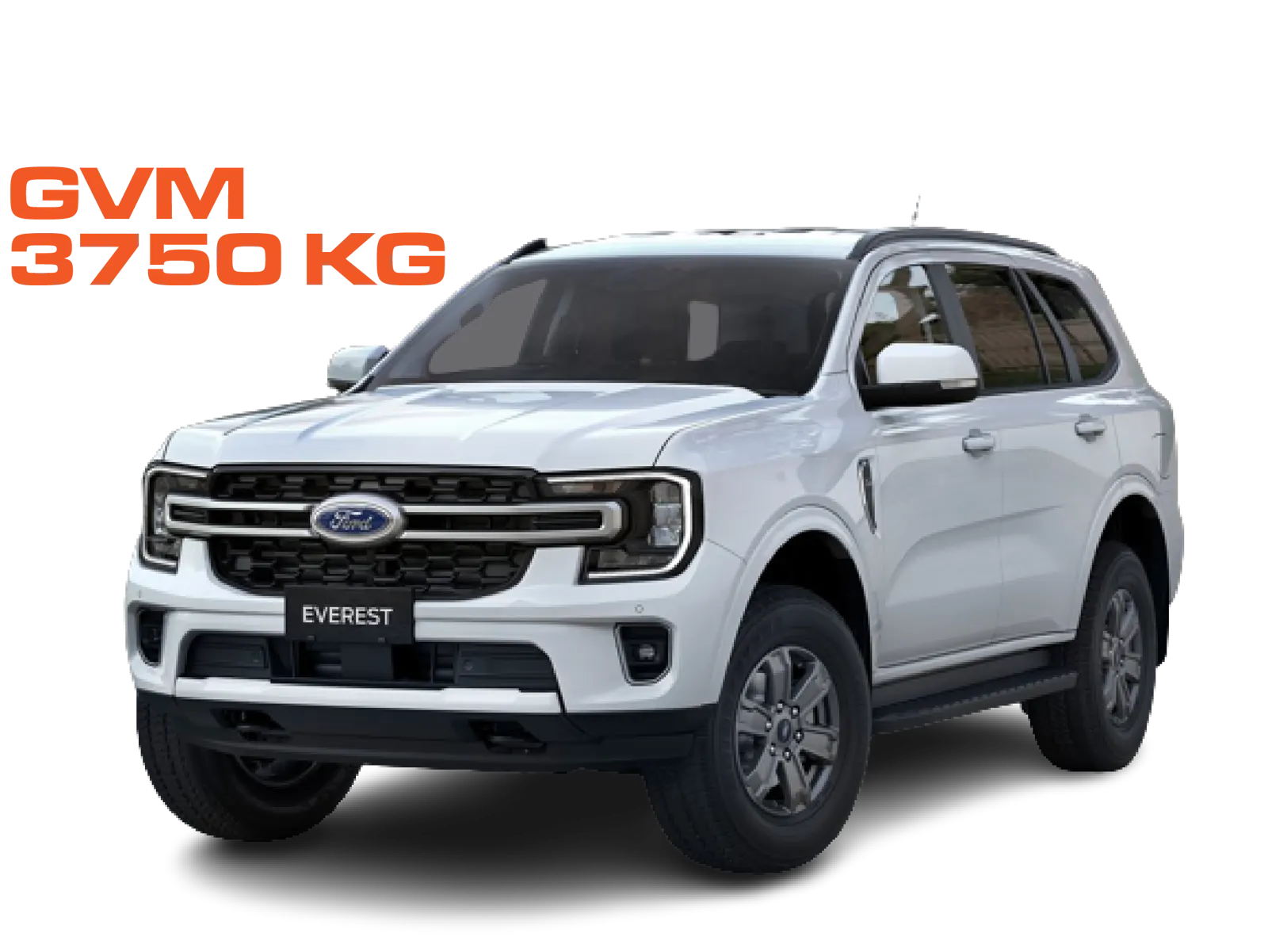

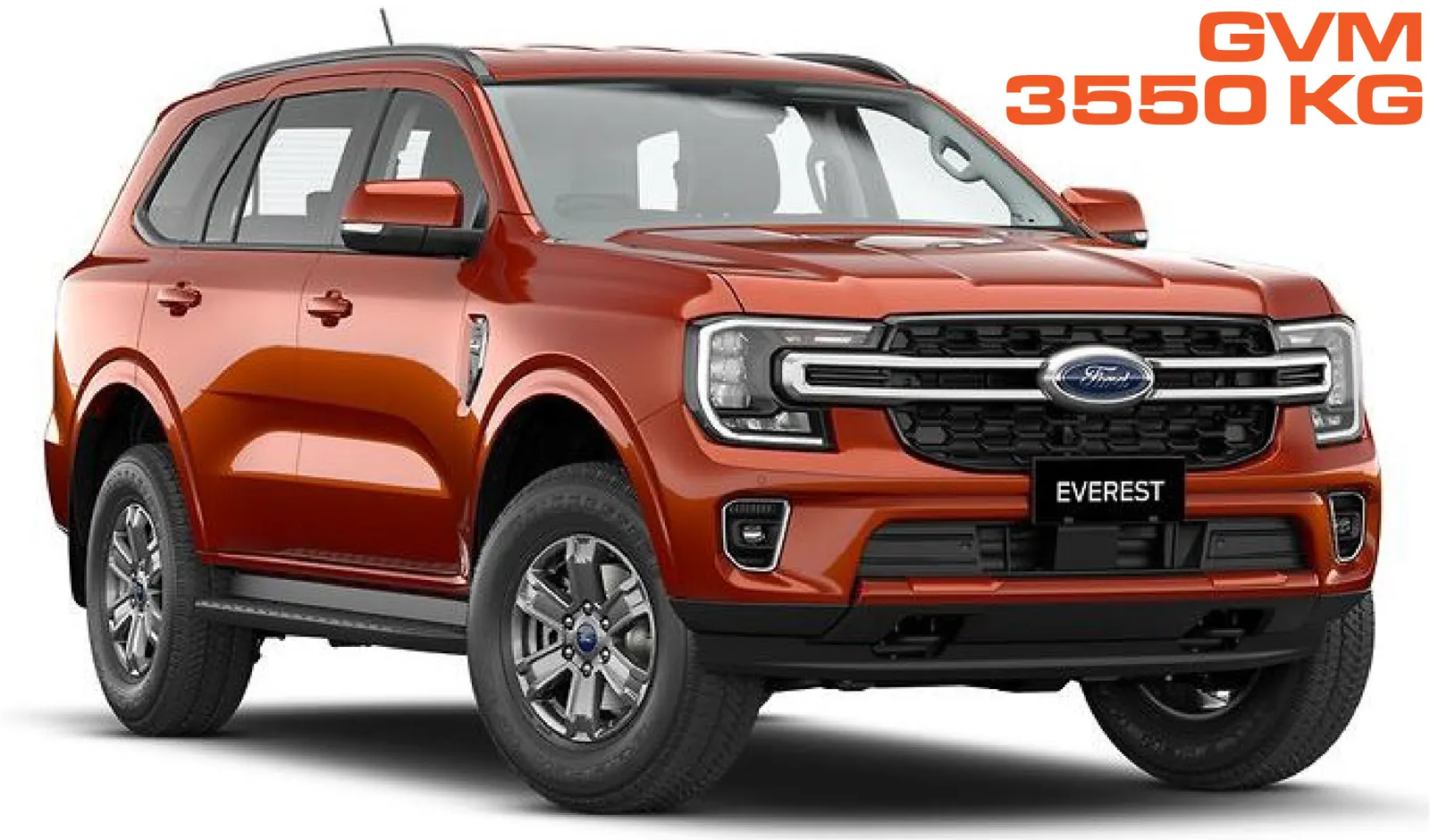

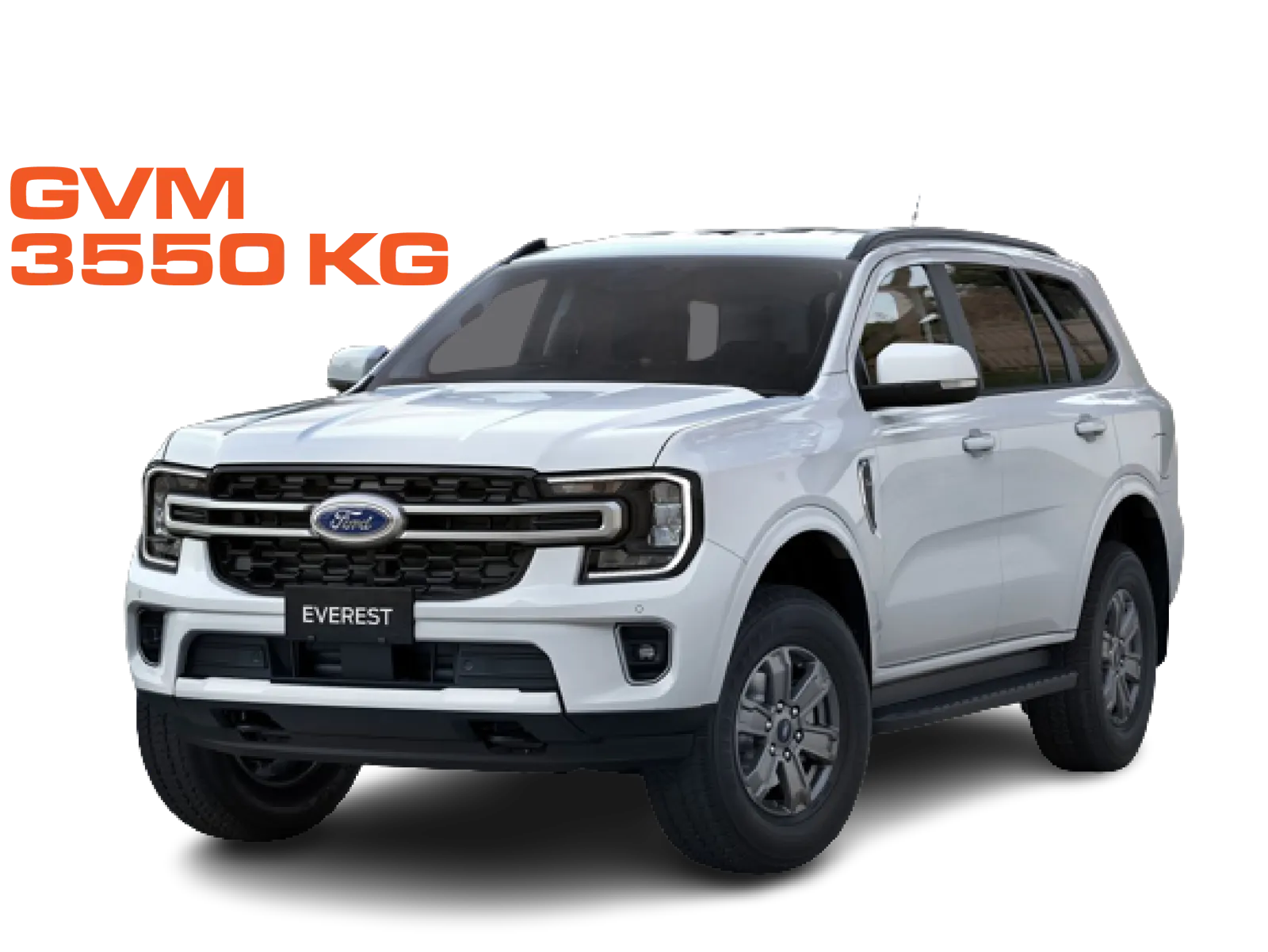

Ford Everest Next Gen (UB 2022 on), 4 cyl and V6
Outback Armour's GVM upgrade for the Ford Everest Next Gen (UB 2022 on), 4 cyl and V6: a complete approved kit that lifts the legal weight your vehicle can carry. We fit it in Miami and complete the certification paperwork.
- New GVM
- 3,550 kg or 3,750 kg
- Original GVM
- 3,240 kg
- Lift front / rear
- 30 to 35mm / 40mm
- Registration
- Pre or post rego
Call or click for fitted price Fitting and certification are quoted for your vehicle.
- ★ 4.9 from 1,732 Google reviews of The Garage Miami, home of Opposite Lock Gold Coast
- Opposite Lock network member, nationwide warranty
- Fitted in our Miami workshop. We only fit parts we supply.
- Zip and Afterpay
Options
OEM bumper, unladen
approx 50 to 100kg constant front load, such as a steel bullbar
approx 100 to 150kg constant front load, such as a steel bullbar and winch
40mm lift unladen
40mm lift at approx 250kg; 150kg minimum rear load required
40mm lift at approx 250kg; 150kg minimum rear load required
Outback Armour: designed for endurance and to resist shock fade and heat, specifically for touring and fleet vehicles, with comfort and control on corrugations and rough roads.
Outback Armour: 20+ damping settings to set and forget or adjust; suits vehicles with varying loads, on and off road.
Ready to book it in? Tell us your vehicle and what you carry, and we text you a fitted price within one business day.
Get your fitted priceCall (07) 5572 1711Front end
Front components
Rear end
Rear components
Compliance
Certification items
Specifications
| Original GVM | up to 3,240 kg |
|---|---|
| New GVM | 3,550 kg or 3,750 kg |
| Front axle | 1,470 kg to 1,650 kg |
| Rear axle | 1,770 kg to 2,150 kg |
| GCM | 6,250 kg; unchanged by the upgrade |
| Towing | 3,500 kg braked (unchanged). Towing at full GVM: 2,700 kg (3,550 kg upgrade), 2,500 kg (3,750 kg upgrade) |
| Lift front | 30 to 35mm |

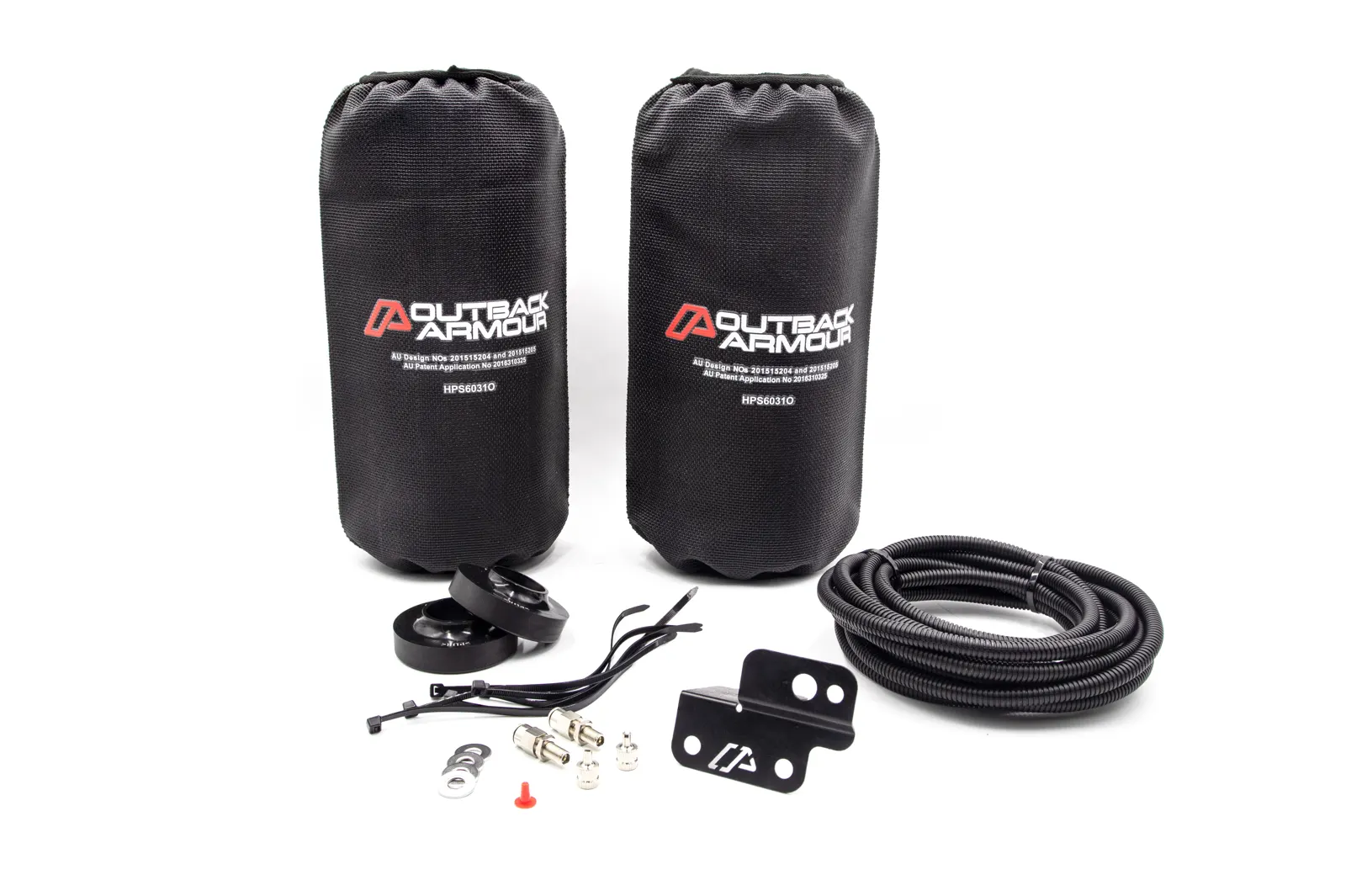

| Lift rear | 40mm (coil springs with rear air bag kit) |
| Registration | Pre or post registration (pre registration under the federal SSM approval through selected Outback Armour dealers; post registration as a state based approval, independently certified) |
| Approval | VTA-064507 (VTA, federal SSM approval) |
| Vehicle category | MC to NB1 |
Warranty
Outback Armour warranty
5 years, unlimited km on shocks, struts, coil and leaf springs, U-bolts, shackles and pins. Strut and shock bushes 1 year. Upper control arms 1 year or 20,000 km. Lifts over 50 mm are excluded.
Fitted by us in Miami and backed by the Opposite Lock network nationwide.
Fitted and certified in Miami
We fit and certify it on site
We fit Outback Armour GVM upgrades at our Miami workshop and complete the certification on site, so you drive away with the paperwork done.
An approved GVM kit has to be fitted complete, under its own kit part number, to be certified. We fit every part in the approved kit for your exact vehicle, and nothing is swapped or left out.
