Outback Armour

GVM upgrade

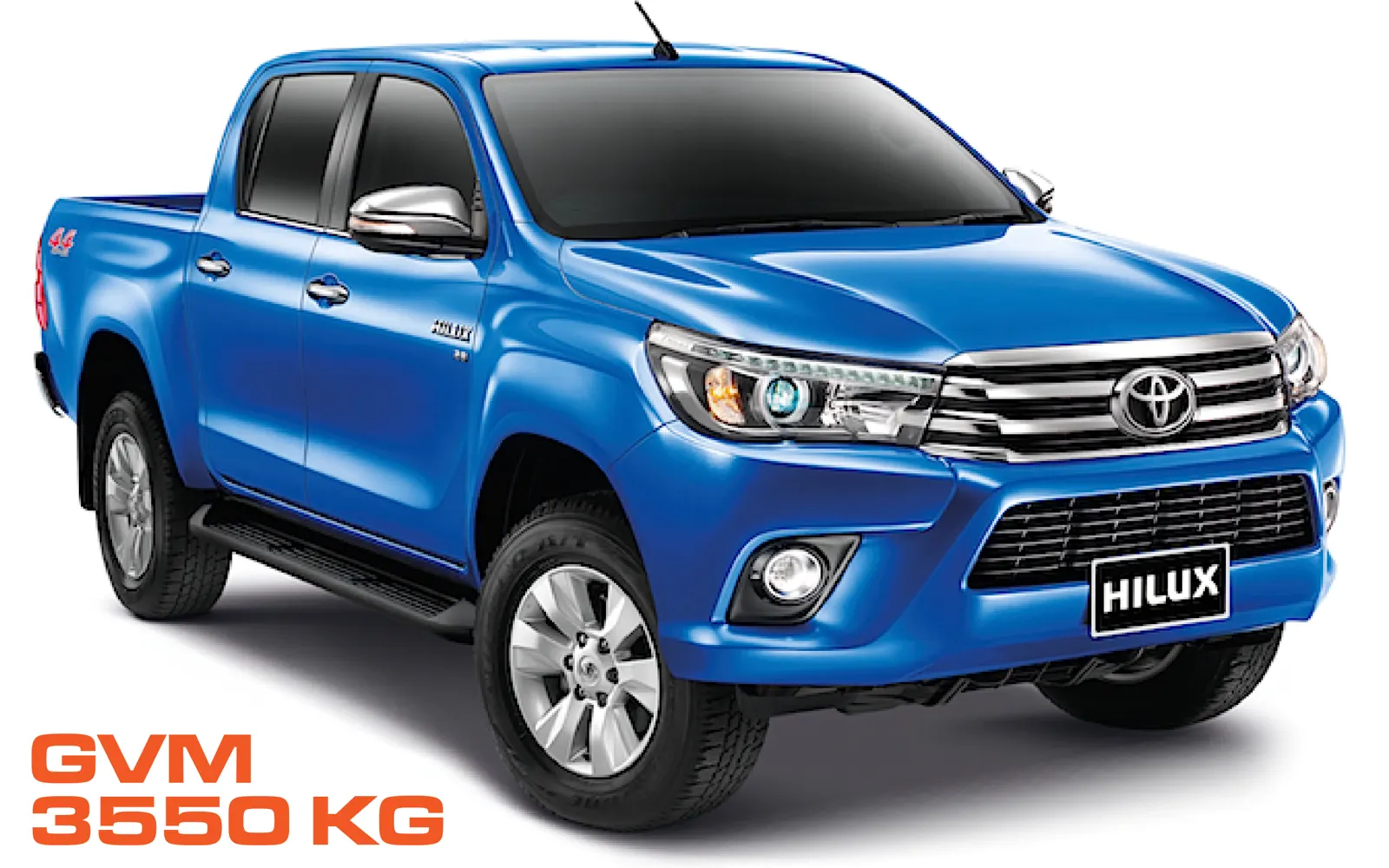

Toyota HiLux N80 (2015 to 11/2025)

Outback Armour's GVM upgrade for the Toyota HiLux N80 (2015 to 11/2025): a complete approved kit that lifts the legal weight your vehicle can carry. We fit it in Miami and complete the certification paperwork.

New GVM: 3,550 kg or 3,750 kg
Original GVM: 3,100 kg
Lift front / rear: 35mm / 50mm
Registration: Pre or post rego

Call or click for fitted price Fitting and certification are quoted for your vehicle.

Get your fitted price Call (07) 5572 1711 Text us

★ 4.9 from 1,732 Google reviews of The Garage Miami, home of Opposite Lock Gold Coast
Opposite Lock network member, nationwide warranty
Fitted in our Miami workshop. We only fit parts we supply.
Zip and Afterpay

We text you a fitted price within one business day.

Options

Trail (front)

OEM bumper, unladen

Expedition (front)

approx 50 to 100kg constant front load, such as a steel bullbar

Expedition HD (front)

approx 100 to 150kg constant front load, such as a steel bullbar and winch

Expedition HD (rear, 3,550 kg GVM)

50mm lift at approx 400kg; 250kg minimum rear load recommended

Expedition XHD (rear, 3,550 kg GVM)

50mm lift at approx 800kg; 500kg minimum rear load required

Expedition XHD (rear, 3,750 kg GVM)

50mm lift at approx 800kg; 500kg minimum rear load required

Digressive (DSV) shocks

Outback Armour: designed for endurance and to resist shock fade and heat, specifically for touring and fleet vehicles, with comfort and control on corrugations and rough roads.

Adjustable Internal Bypass (ADJ) shocks

Outback Armour: 20+ damping settings to set and forget or adjust; suits vehicles with varying loads, on and off road.

Ready to book it in? Tell us your vehicle and what you carry, and we text you a fitted price within one business day.

Get your fitted price Call (07) 5572 1711

Front end

Front components

**Strut Top Mount - FJ Cruiser 15 & Hilux 150 & Prado 150 Series**OASU0715002Strut top mount that locates the strut in the body.

**Strut - Front - Hilux Gen8/150 - (DSV)**OASU0840016-DSVFront strut that controls wheel movement and carries the coil spring.

**Strut - Front - Hilux 150/Gen8 - Adjustable**OASU0865001-ADJFront strut that controls wheel movement and carries the coil spring.

**Coil Springs - Front - Hilux 150 & Prado 120/150**OASU1015001Front coil spring that sets ride height and carries front accessory weight.

**Coil Springs - Front - Hilux 150 & Prado 120/150 - Expedition HD**OASU1015005Front coil spring that sets ride height and carries front accessory weight.

**Bump Stop Kit - Front - Multi Fit (2x per kit)**OASU4210202Bump stops that limit suspension travel and cushion full compression.

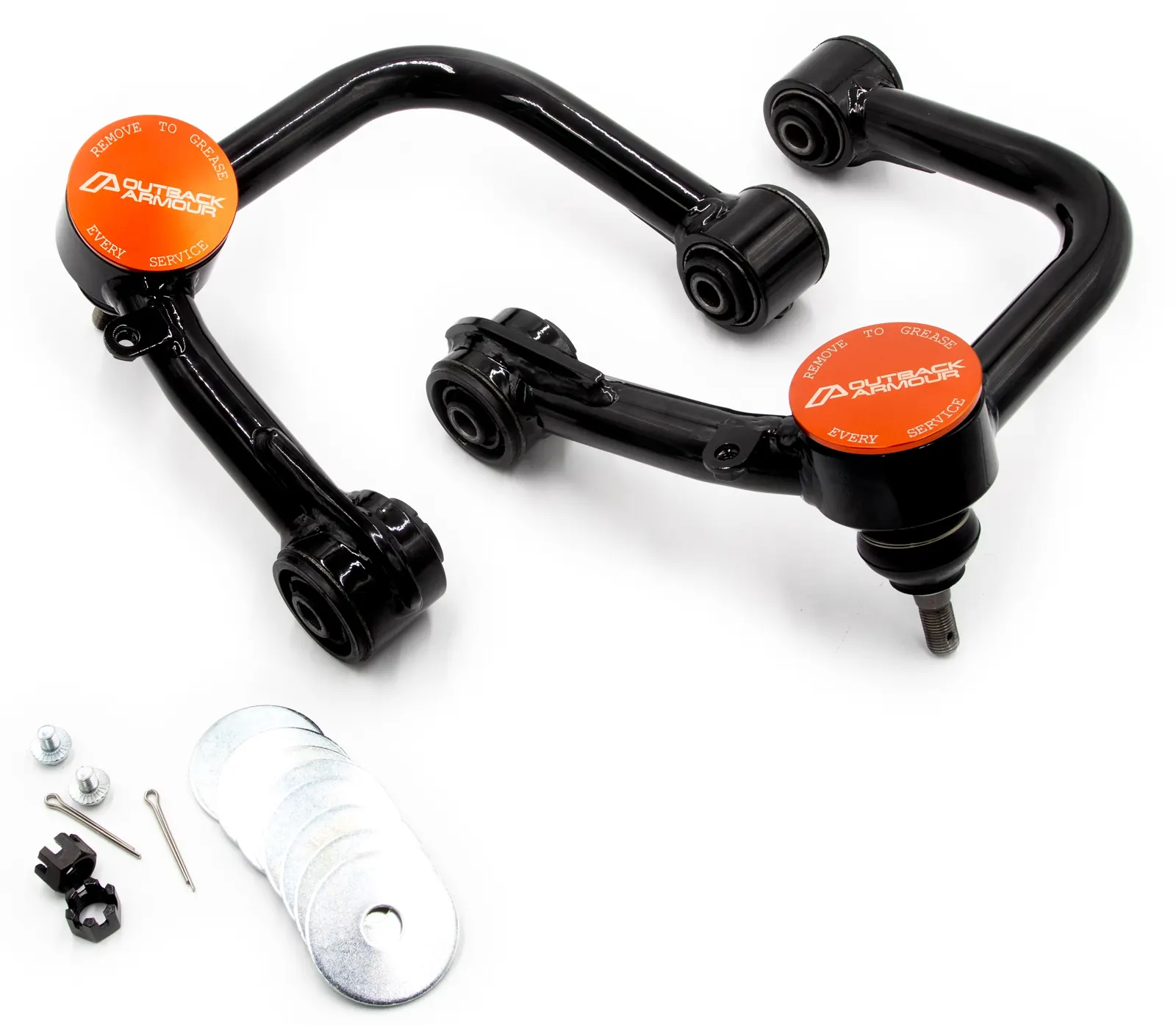

**Fixed Upper Control Arm Kit - Hilux (KUN/GUN) & Fortuner (Version 2)**OASU3516003-FUpper control arm that restores caster and ball joint angle after a lift.

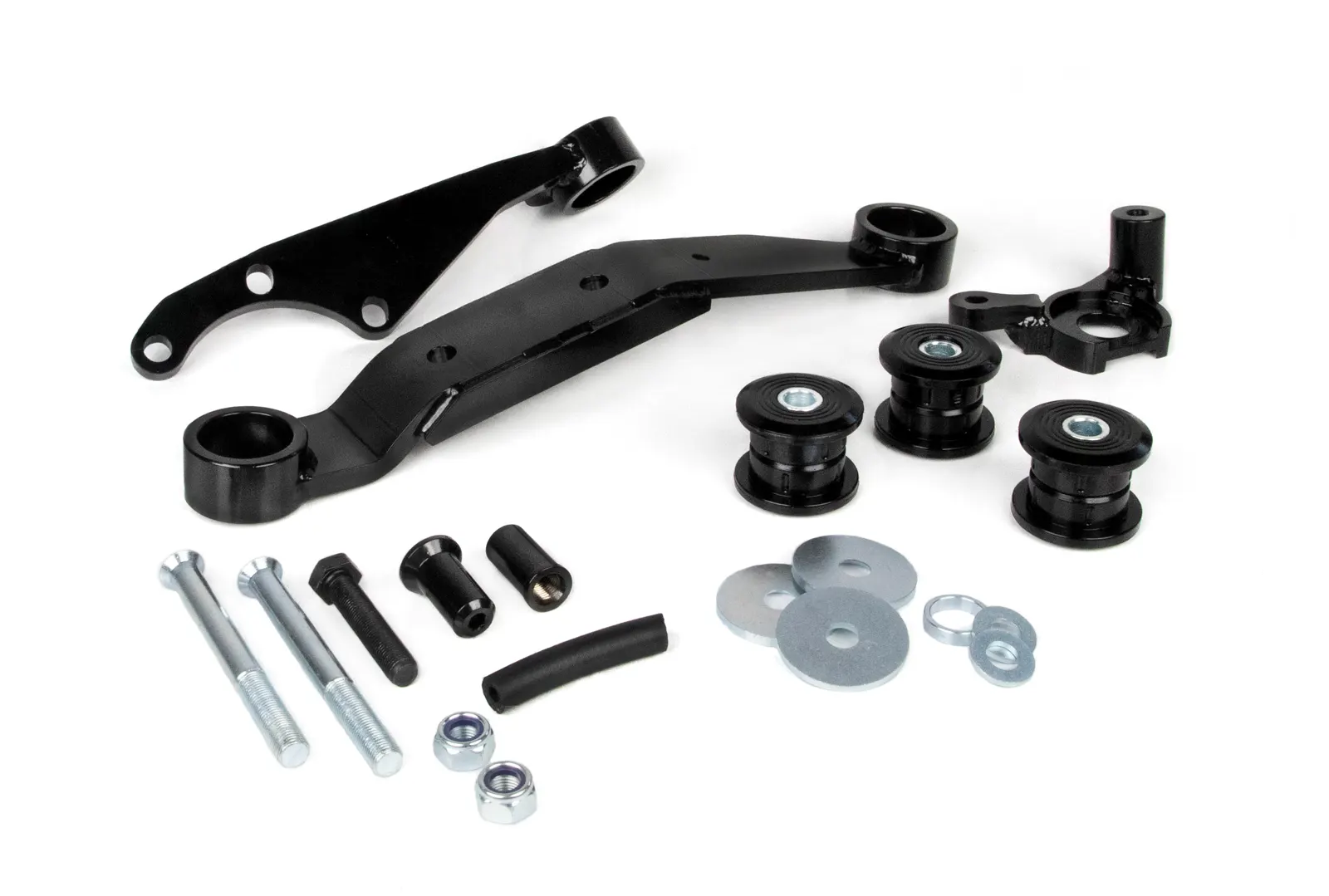

**Diff Drop Kit - Toyota Hilux Gen8/150 Series (30mm)**OASU3216001Diff drop kit that keeps CV angles in range after a front lift.

Show all 11 front parts

**Link Rod - Headlight Adjustment - Hilux Gen8**OASU3716002Headlight adjustment part that brings headlight aim back after a lift.

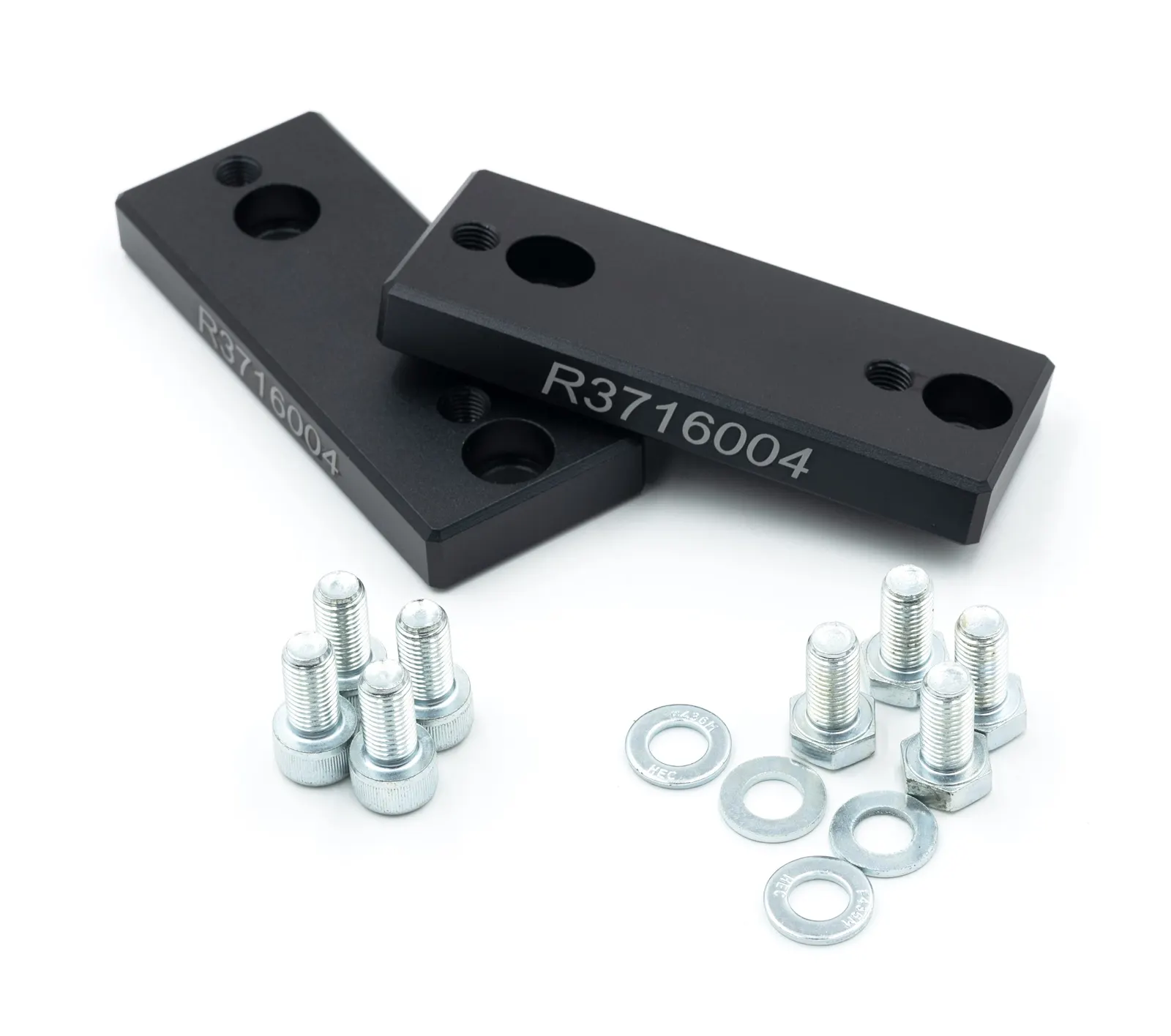

**N80 Hilux Sway Bar Relocation Kit**OASU3716004Sway bar relocation kit that suits the lifted ride height.

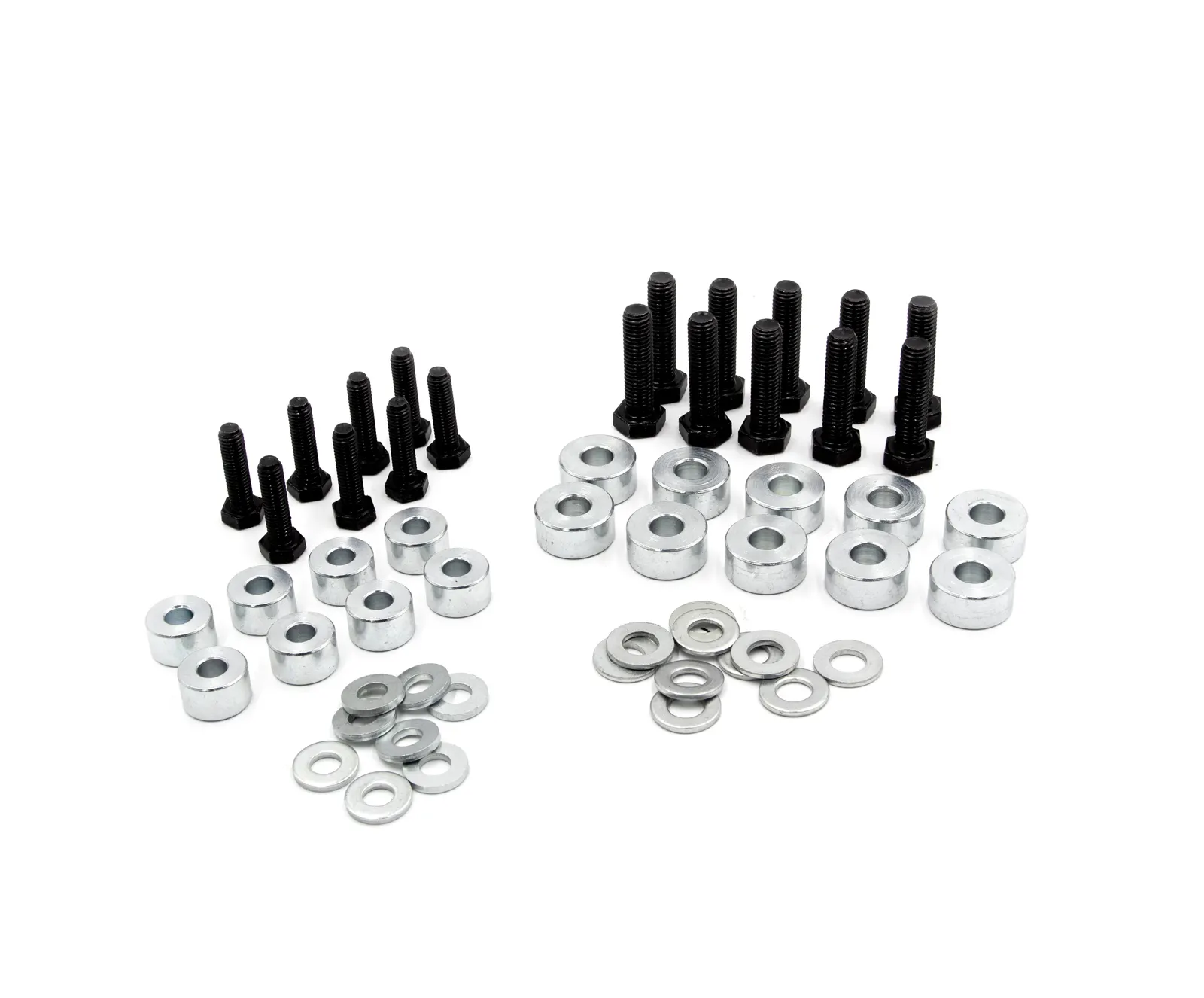

**Bash Plate Drop Kit - Hilux Gen 8**OASU3716008Bash plate drop kit that refits the factory bash plate after the diff drop.

Rear end

Rear components

**Shock Absorber - Rear - Hilux Gen8 - Digressive (DSV)**OASU0140024-DSVShock absorber that controls spring movement and keeps the tyres in contact on rough ground.

**Shock Absorber - Rear - Hilux Gen8 - Adjustable**OASU0165024-ADJShock absorber that controls spring movement and keeps the tyres in contact on rough ground.

Leaf Spring - Hilux Gen8 (2015+) - Expedition HD — **Leaf Spring - Hilux Gen8 (2015 on) - Expedition HD**OASU1116003Rear leaf spring pack that sets ride height and carries the rear load.

Leaf Spring - Hilux Gen8 (2015+) - Expedition XHD — **Leaf Spring - Hilux Gen8 (2015 on) - Expedition XHD**OASU1116004Rear leaf spring pack that sets ride height and carries the rear load.

**Greasable Shackle - Hilux Gen8**OASU2400064REVGreasable shackle that lets the leaf spring change length as it flexes.

**Greasable Pin - Ranger MY22 / Amarok MY23 / Hilux Gen 8 / Rogue**OASU2500051Spring pin that locates the leaf spring eye.

**Leaf Spring Bush Kit - Hilux 150/Gen8**OASU210024KPolyurethane bushes for the leaf spring eyes and shackles.

**U-Bolt - M14 x 62 ID (SQR) x 230 L**OASU2362005U bolts that clamp the leaf spring to the axle.

Show all 10 rear parts

**Bump Stop Kit - Rear - Leaf Spring (2x per kit)**OASU4210004Bump stops that limit suspension travel and cushion full compression.

**Centre Bearing Spacer Kit - Hilux Gen8**OASU3716006Centre bearing spacer that corrects tailshaft angle after a lift.

Compliance

Certification items

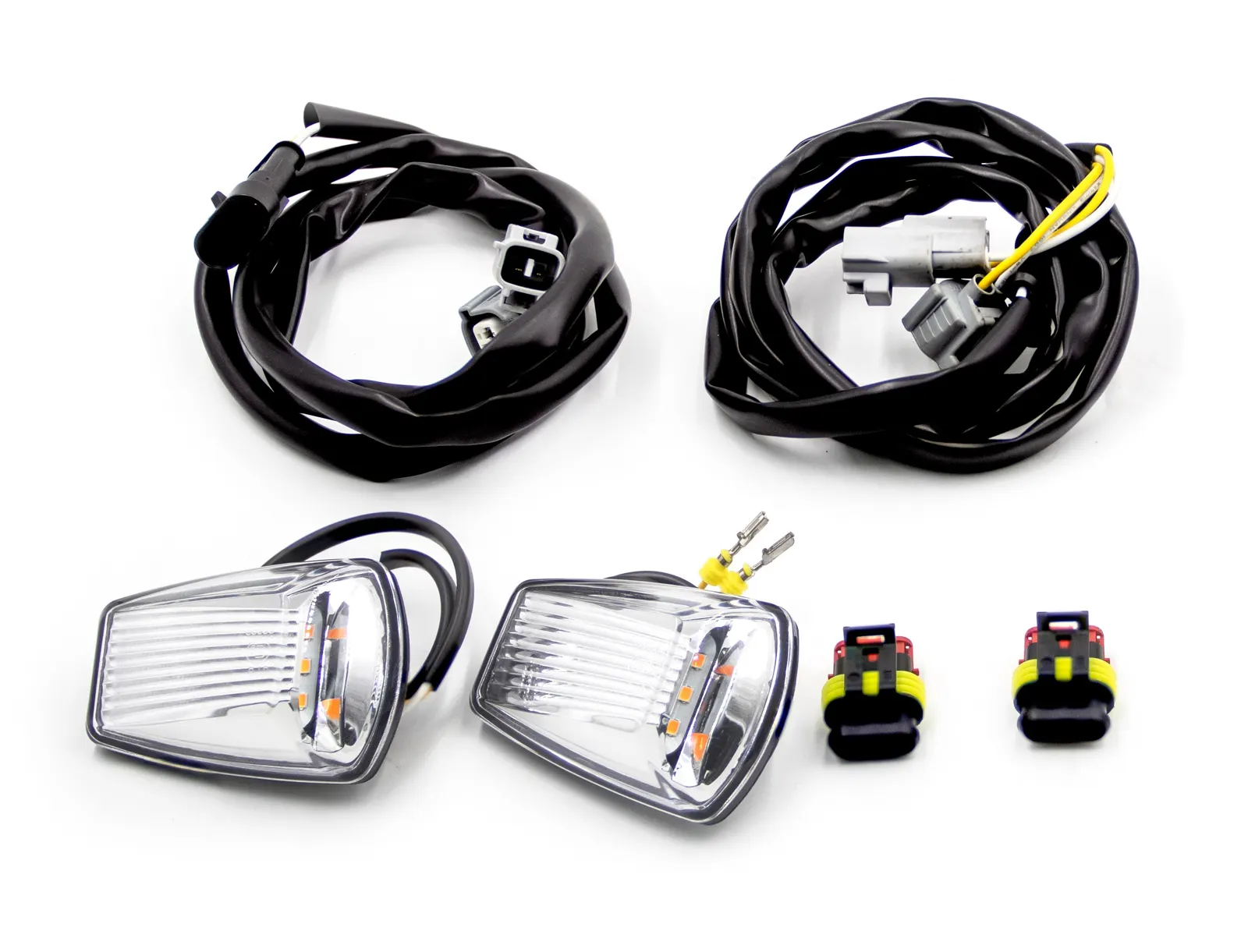

**Hilux N80 GVM - CAT 6 Indicator Light Kit**OASU4516003Side indicator kit needed for ADR compliance after the upgrade.

Outback Armour SVI Plate (AU)OASVIPLATE-AUSecure vehicle identification plate fitted as part of the GVM approval.

**GVM Document Pack (OMS+TPL) - Hilux N80 3550kg GVM**OAGVM063968-3550GVM document pack for the upgraded vehicle.

GVM Upgrade - SSM Approval (AU)OAGVM-SSM-AUFederal SSM approval used for pre registration GVM upgrades.

Vehicle Modification Plate - (WA)OAMODPLATE-WAState modification plate used for post registration approvals.

Vehicle Modification Plate - (NT)OAMODPLATE-NTState modification plate used for post registration approvals.

**GVM Document Pack (OMS+TPL) - Hilux N80 3750kg GVM**OAGVM063968-3750GVM document pack for the upgraded vehicle.

Specifications

Original GVM	up to 3,100 kg (varies by variant)
New GVM	3,550 kg or 3,750 kg
Front axle	1,480 kg to 1,650 kg
Rear axle	1,700 kg to 2,100 kg
GCM	5,850 kg; unchanged by the upgrade
Towing	3,500 kg braked (unchanged). Towing at full GVM: 2,300 kg (3,550 kg upgrade), 2,100 kg (3,750 kg upgrade)
Lift front	35mm
Lift rear	50mm
Registration	Pre or post registration (pre registration under the federal SSM approval through selected Outback Armour dealers; post registration as a state based approval, independently certified)
Approval	VTA-063968 (VTA, federal SSM approval)

Warranty

Outback Armour warranty

5 years, unlimited km on shocks, struts, coil and leaf springs, U-bolts, shackles and pins. Strut and shock bushes 1 year. Upper control arms 1 year or 20,000 km. Lifts over 50 mm are excluded.

Fitted by us in Miami and backed by the Opposite Lock network nationwide.

Fitted and certified in Miami

We fit and certify it on site

We fit Outback Armour GVM upgrades at our Miami workshop and complete the certification on site, so you drive away with the paperwork done.

An approved GVM kit has to be fitted complete, under its own kit part number, to be certified. We fit every part in the approved kit for your exact vehicle, and nothing is swapped or left out.

How GVM upgrades work, pre and post registration

Ready to book it in? Tell us your vehicle and what you carry, and we text you a fitted price within one business day.

Get your fitted price Call (07) 5572 1711
