GVM upgrade

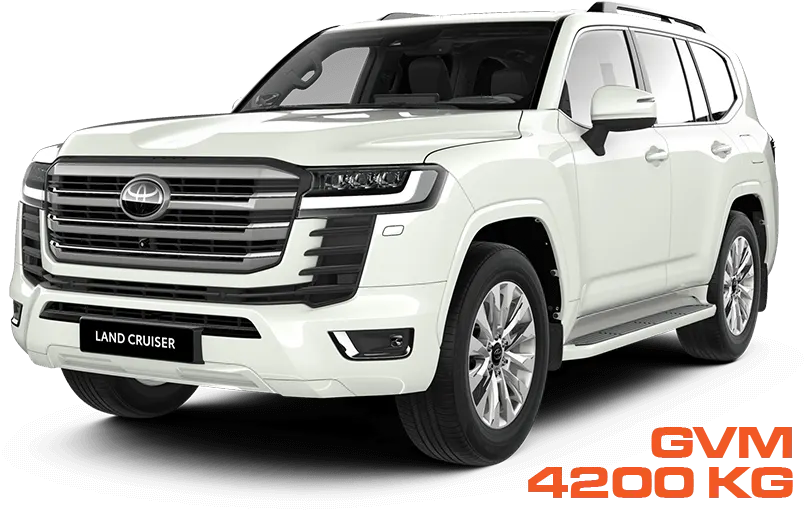

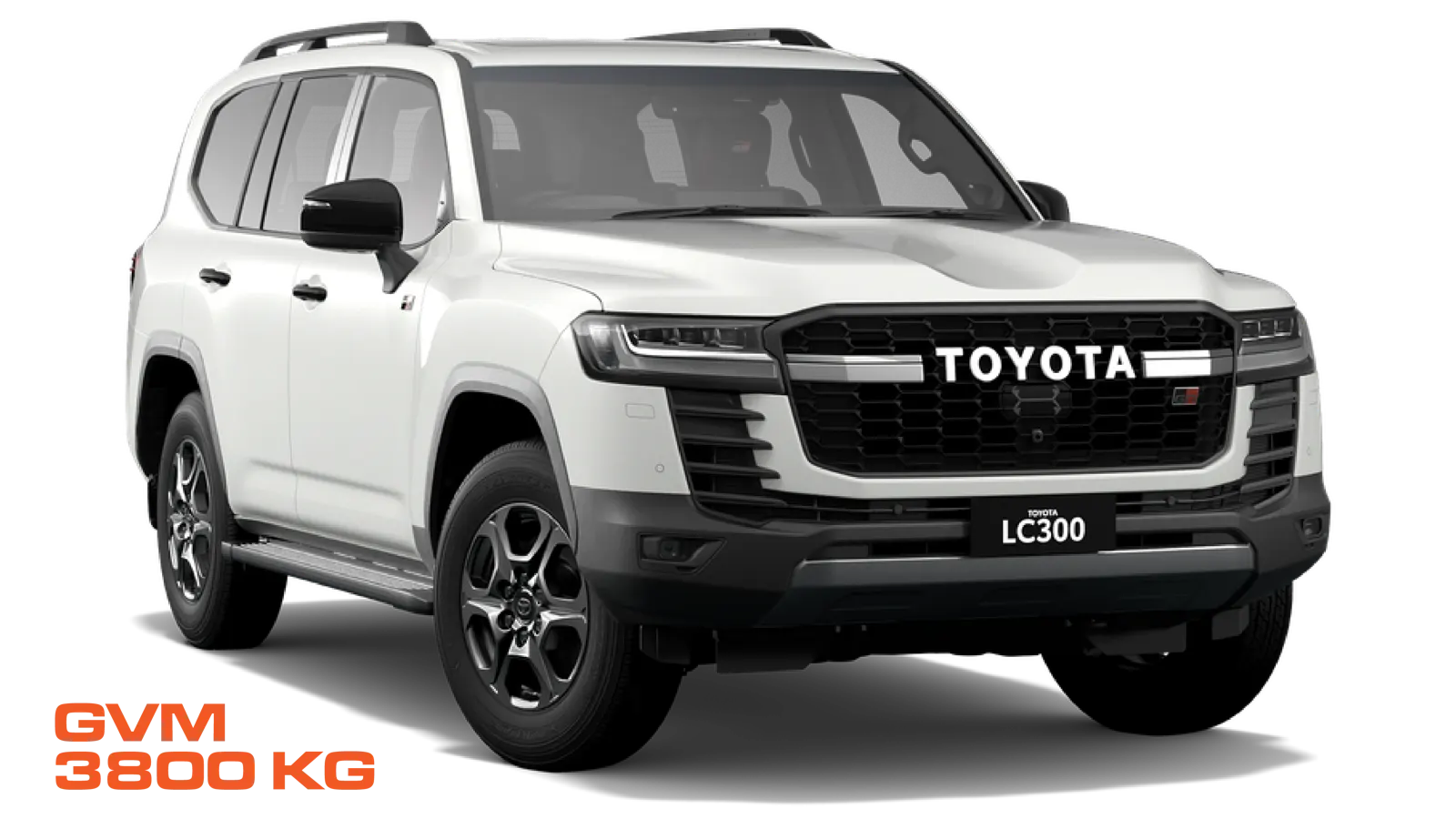

Toyota LandCruiser 300 Series (incl. GR Sport)

Outback Armour's GVM upgrade for the Toyota LandCruiser 300 Series (incl. GR Sport): a complete approved kit that lifts the legal weight your vehicle can carry. We fit it in Miami and complete the certification paperwork.

New GVM: 3,800 kg or 4,200 kg
Original GVM: 3,280 kg
Lift front / rear: 35mm / 50mm
Registration: Pre or post rego

Call or click for fitted price Fitting and certification are quoted for your vehicle.

Get your fitted price Call (07) 5572 1711 Text us

★ 4.9 from 1,732 Google reviews of The Garage Miami, home of Opposite Lock Gold Coast
Opposite Lock network member, nationwide warranty
Fitted in our Miami workshop. We only fit parts we supply.
Zip and Afterpay

We text you a fitted price within one business day.

Options

Trail (front)

OEM bumper, unladen

Expedition (front)

approx 50 to 100kg constant front load, such as a steel bullbar

Expedition HD (front)

approx 100 to 150kg constant front load, such as a steel bullbar and winch

Expedition (rear, 3,800 kg GVM)

50mm lift at approx 150kg; 150kg minimum rear load recommended

Expedition HD (rear, 3,800 kg GVM)

50mm lift at approx 300kg; 300kg minimum rear load required

Expedition HD (rear, 4,200 kg GVM)

50mm lift at approx 300kg; 300kg minimum rear load required

Digressive (DSV) shocks

Outback Armour: designed for endurance and to resist shock fade and heat, specifically for touring and fleet vehicles, with comfort and control on corrugations and rough roads.

Adjustable Internal Bypass (ADJ) shocks

Outback Armour: 20+ damping settings to set and forget or adjust; suits vehicles with varying loads, on and off road.

Ready to book it in? Tell us your vehicle and what you carry, and we text you a fitted price within one business day.

Get your fitted price Call (07) 5572 1711

Front end

Front components

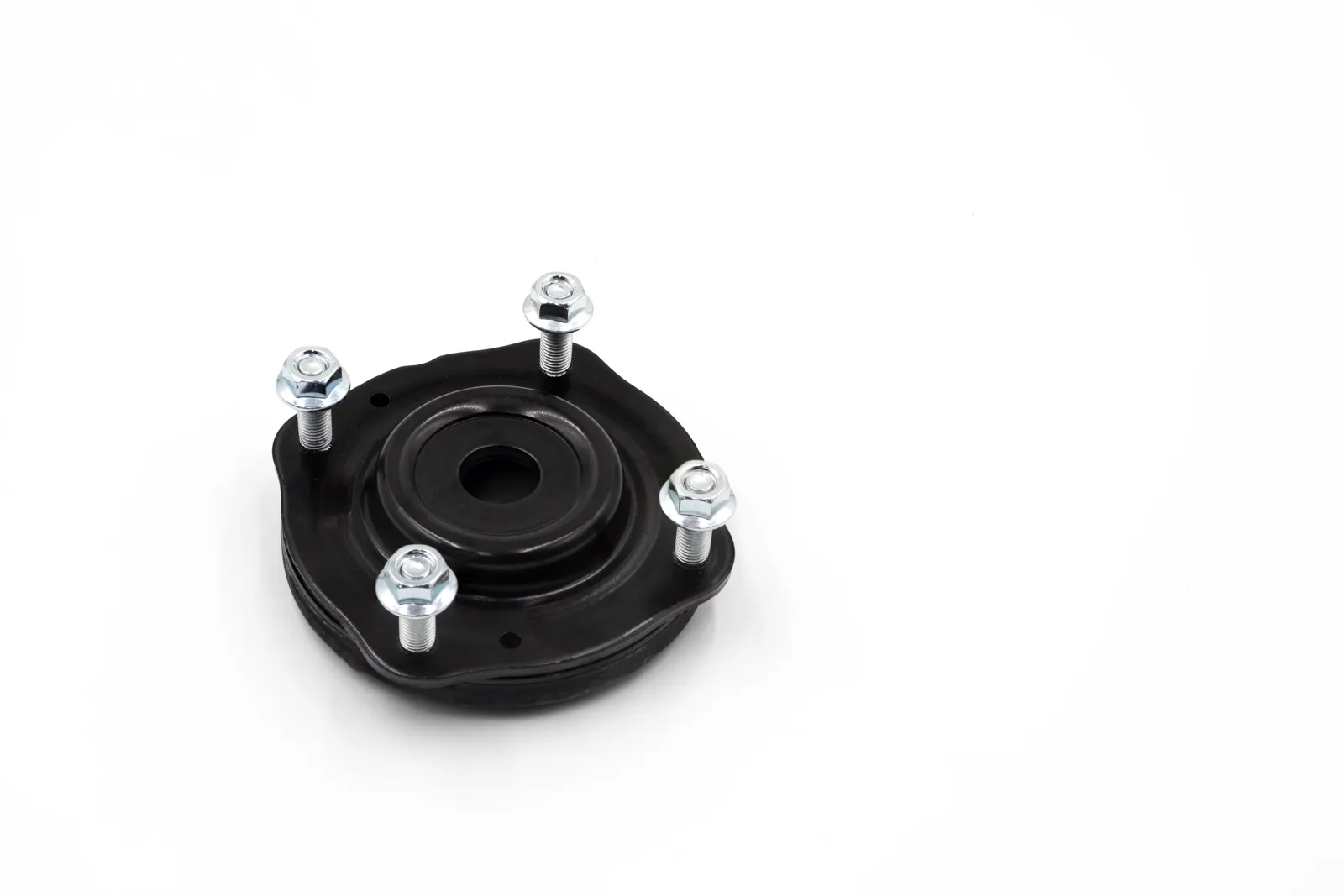

**Strut Top Mount - LC200 Series**OASU0720003Strut top mount that locates the strut in the body.

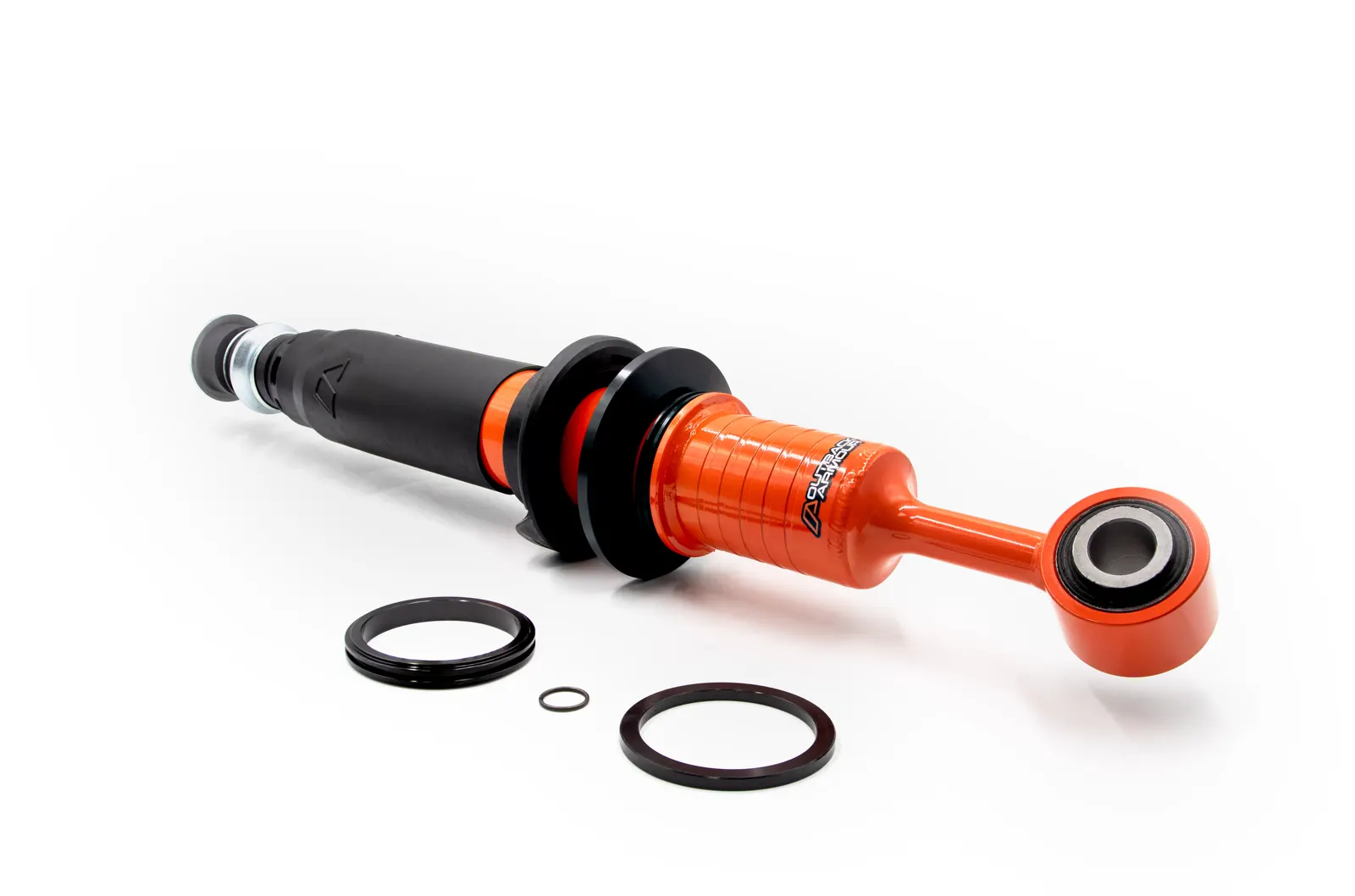

**Strut - Front - TLC300 Series - Digressive**OASU0840032-DSVFront strut that controls wheel movement and carries the coil spring.

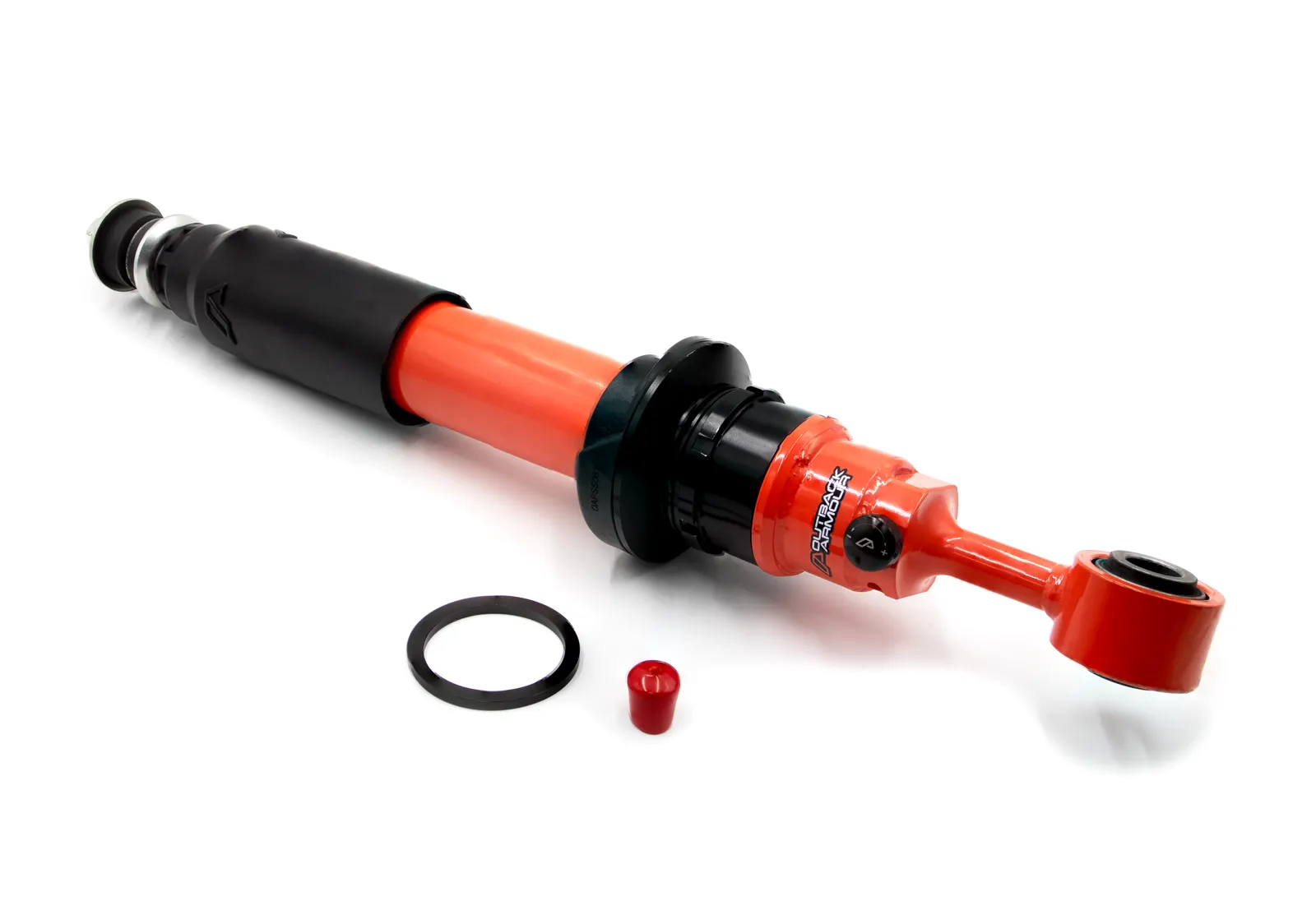

**Strut - Front - TLC300 Series - Bottom Adjuster**OASU0865032-GVMFront strut that controls wheel movement and carries the coil spring.

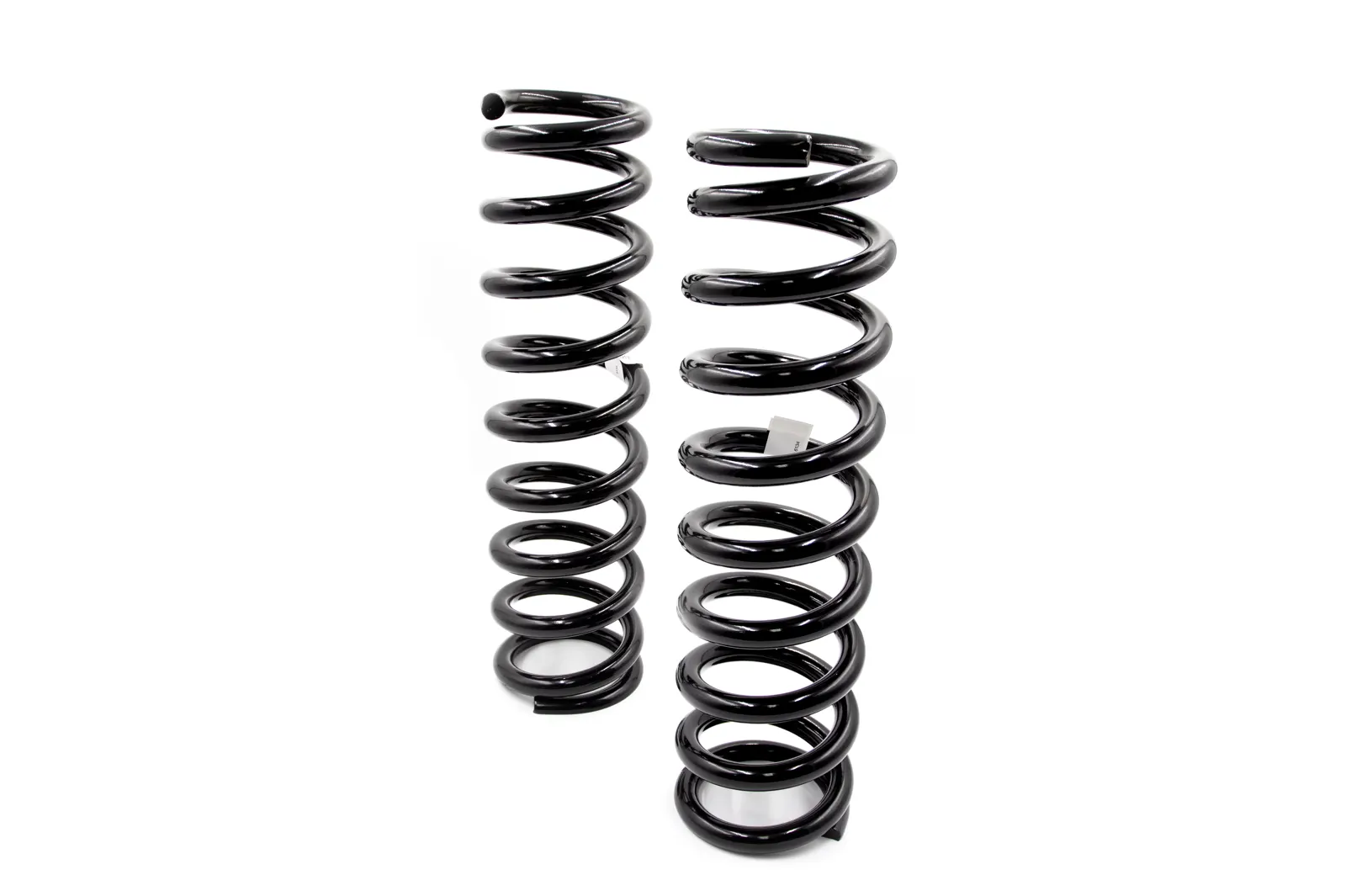

**Coil Springs - Front - TLC300 - Trail**OASU1020021Front coil spring that sets ride height and carries front accessory weight.

**Coil Springs - Front - TLC300 - Exped/Expd HD**OASU1020023Front coil spring that sets ride height and carries front accessory weight.

**Coil Springs - Front - TLC300 - Expd XHD**OASU1020025Front coil spring that sets ride height and carries front accessory weight.

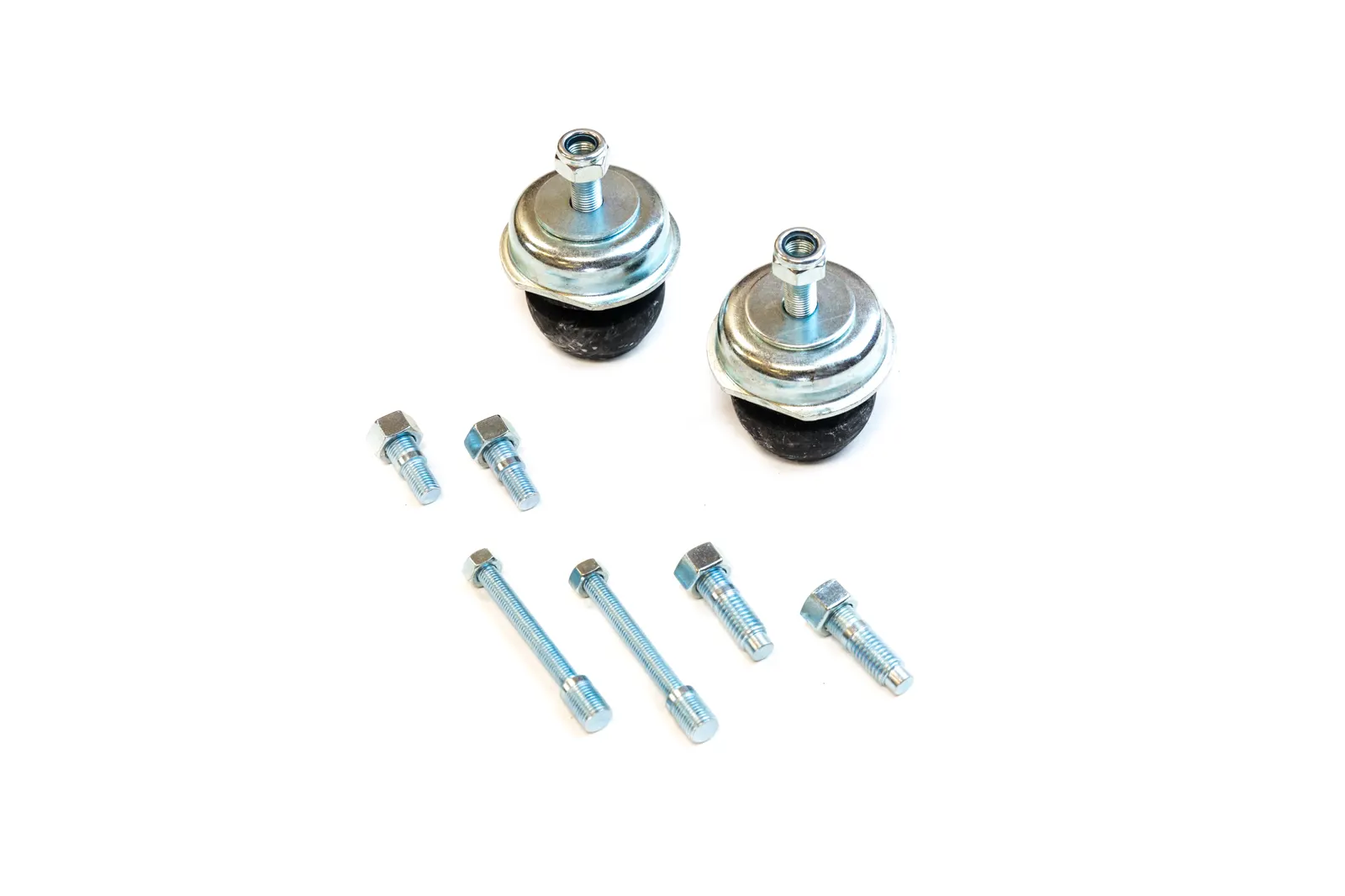

**Bump Stop Kit - Front - Multi Fit (2x per kit)**OASU4210202Bump stops that limit suspension travel and cushion full compression.

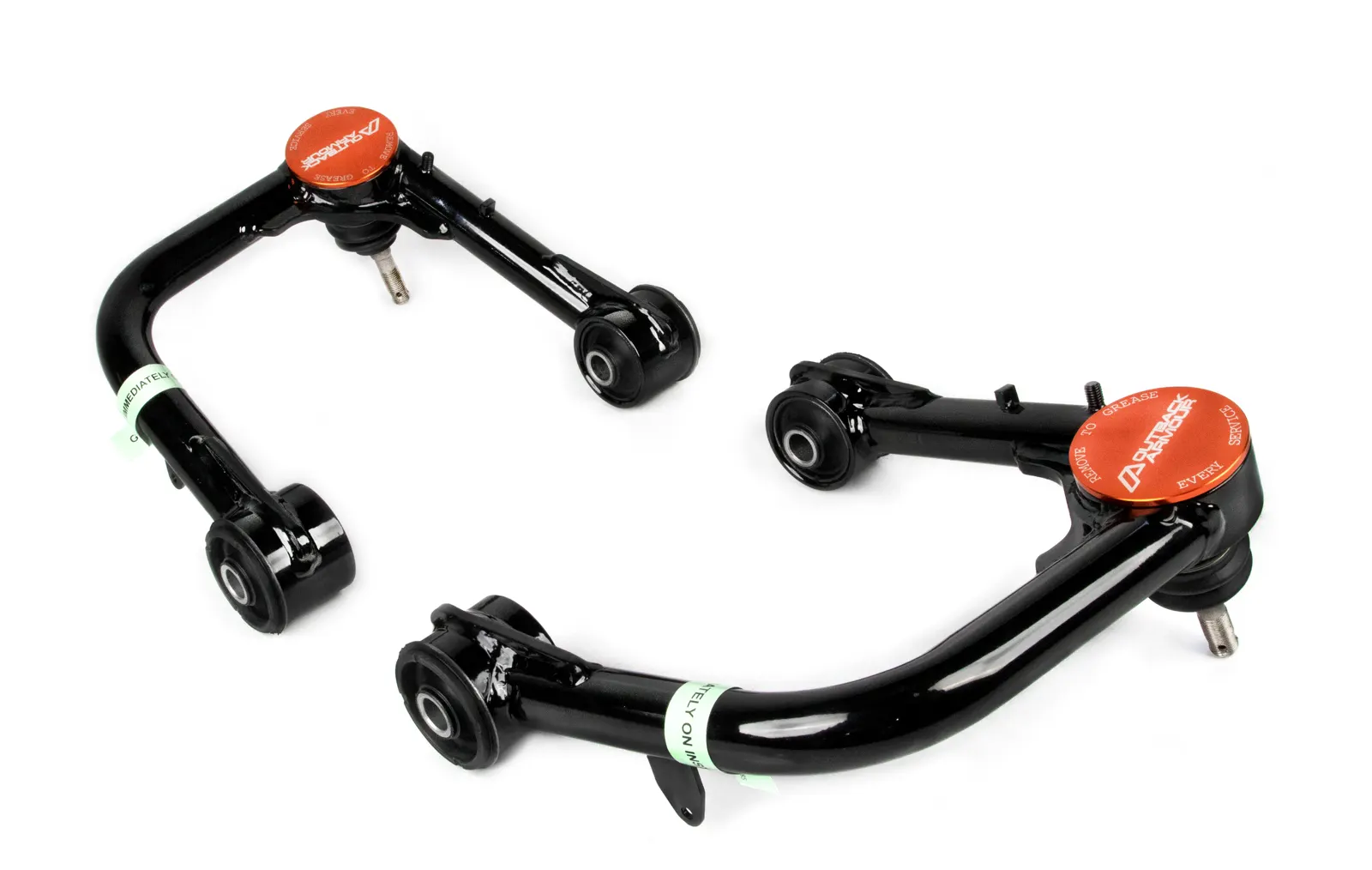

**Fixed Upper Control Arm Kit - TLC300**OASU3532001-FUpper control arm that restores caster and ball joint angle after a lift.

Show all 10 front parts

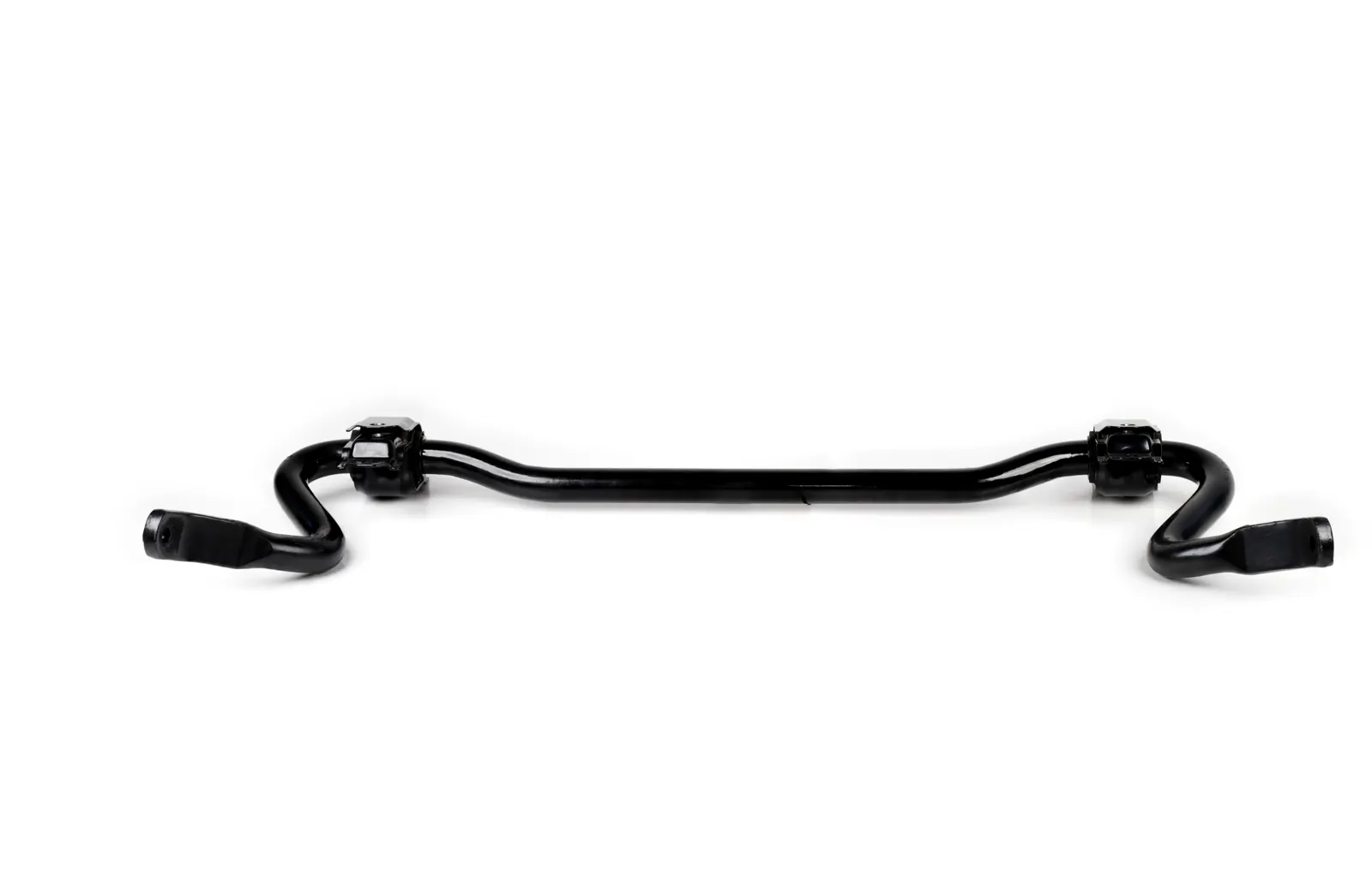

**Sway Bar - Front - TLC300 - 39mm**OASU3830001Heavier sway bar that controls body roll under load.

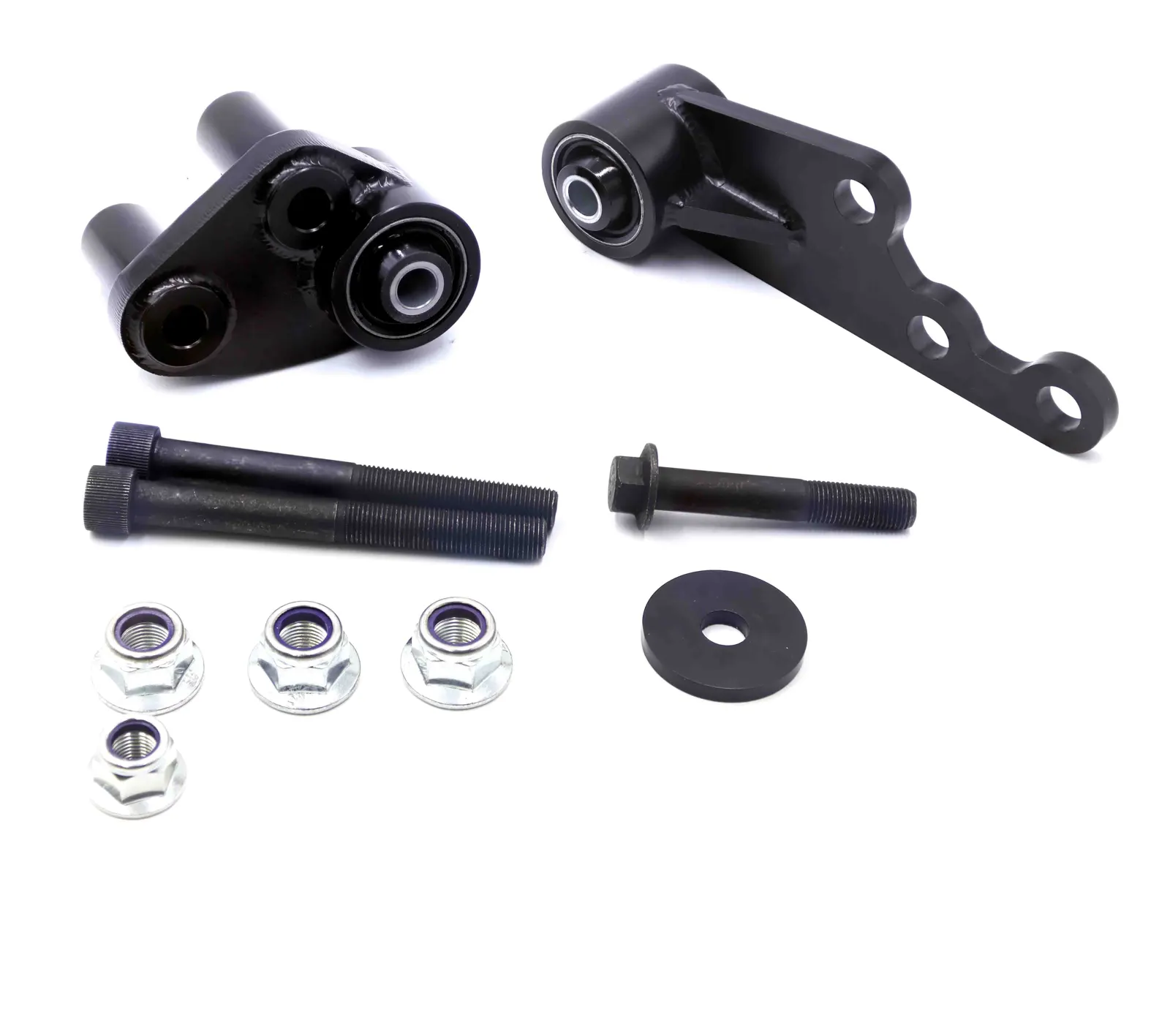

**Diff Drop Kit - Toyota Landcruiser 300 Series/Tundra Gen 3 (20mm)**OASU3230001Diff drop kit that keeps CV angles in range after a front lift.

Rear end

Rear components

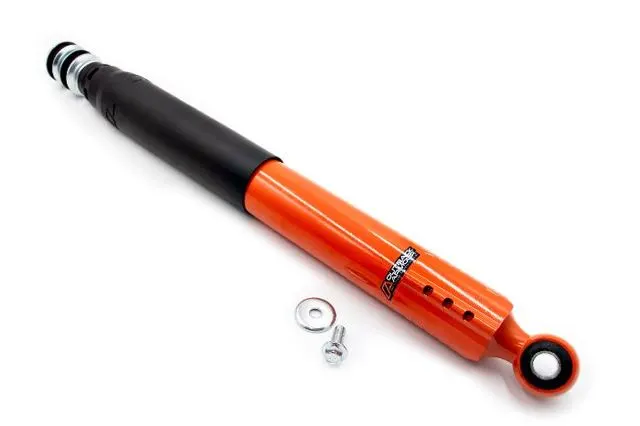

**Shock Absorber - Rear - TLC300 - Digressive (DSV)**OASU0140033-DSVShock absorber that controls spring movement and keeps the tyres in contact on rough ground.

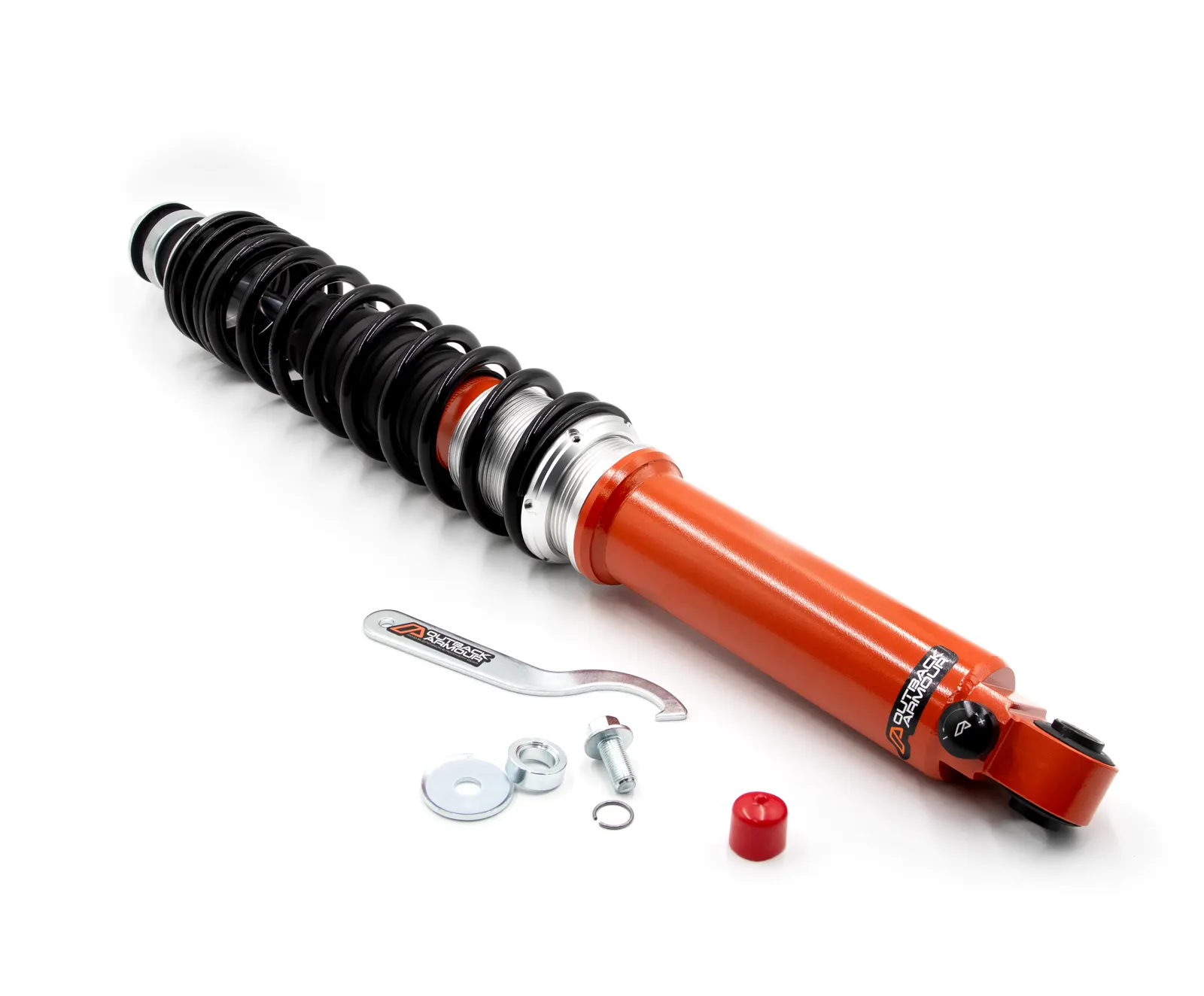

**Shock Absorber - Rear - TLC300 Series Coilover - Adjustable**OASU0165094-ADJShock absorber that controls spring movement and keeps the tyres in contact on rough ground.

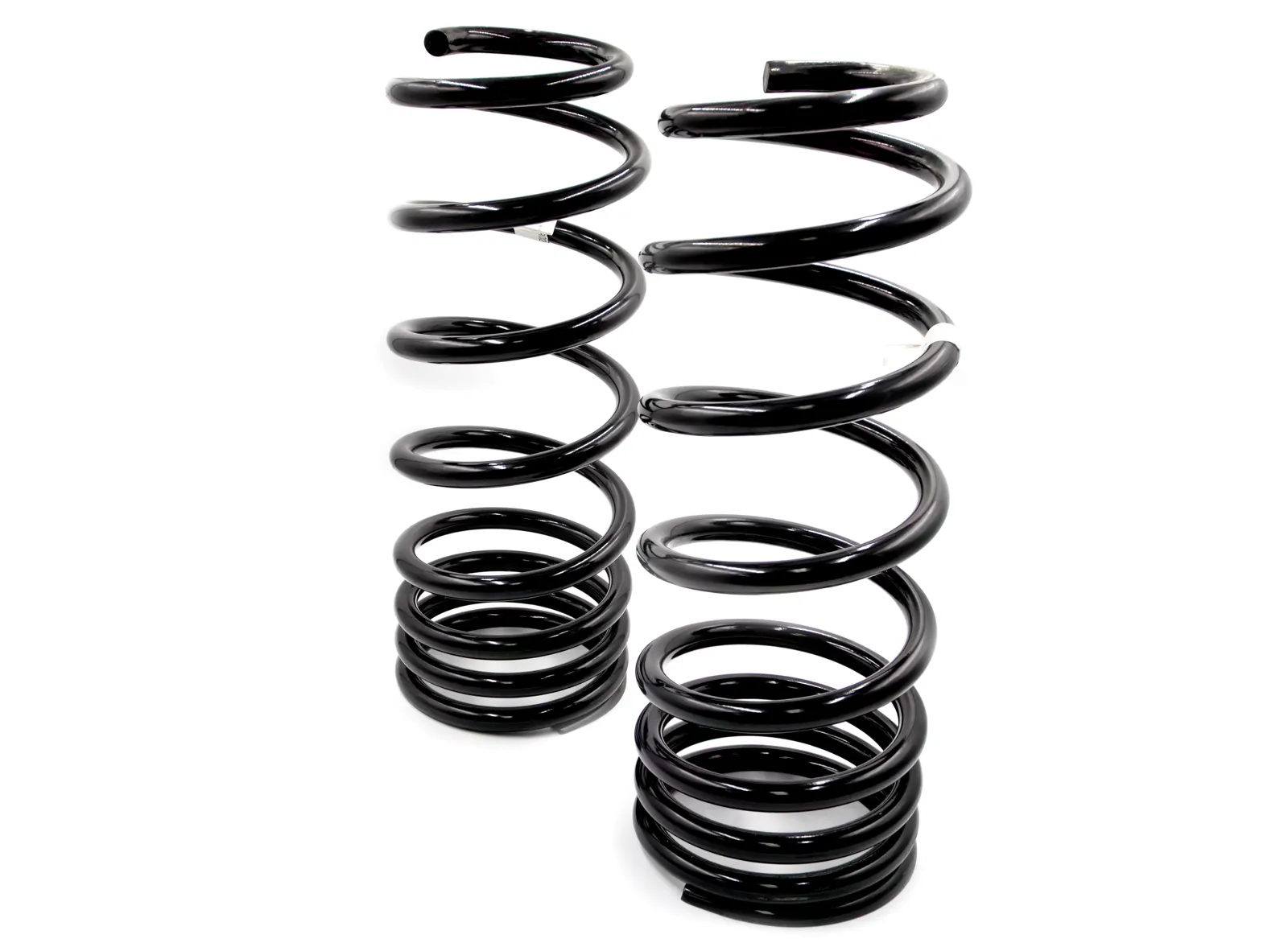

**Coil Springs - Rear - TLC300 - Expedition**OASU1020026Rear coil spring that sets ride height and carries the rear load.

Coil Springs - Rear - TLC300 GR - ExpeditionOASU1020026-GRRear coil spring that sets ride height and carries the rear load.

**Coil Springs - Rear - TLC300 - Expedition HD**OASU1020028Rear coil spring that sets ride height and carries the rear load.

Coil Springs - Rear - TLC300 GR - Expedition HDOASU1020028-GRRear coil spring that sets ride height and carries the rear load.

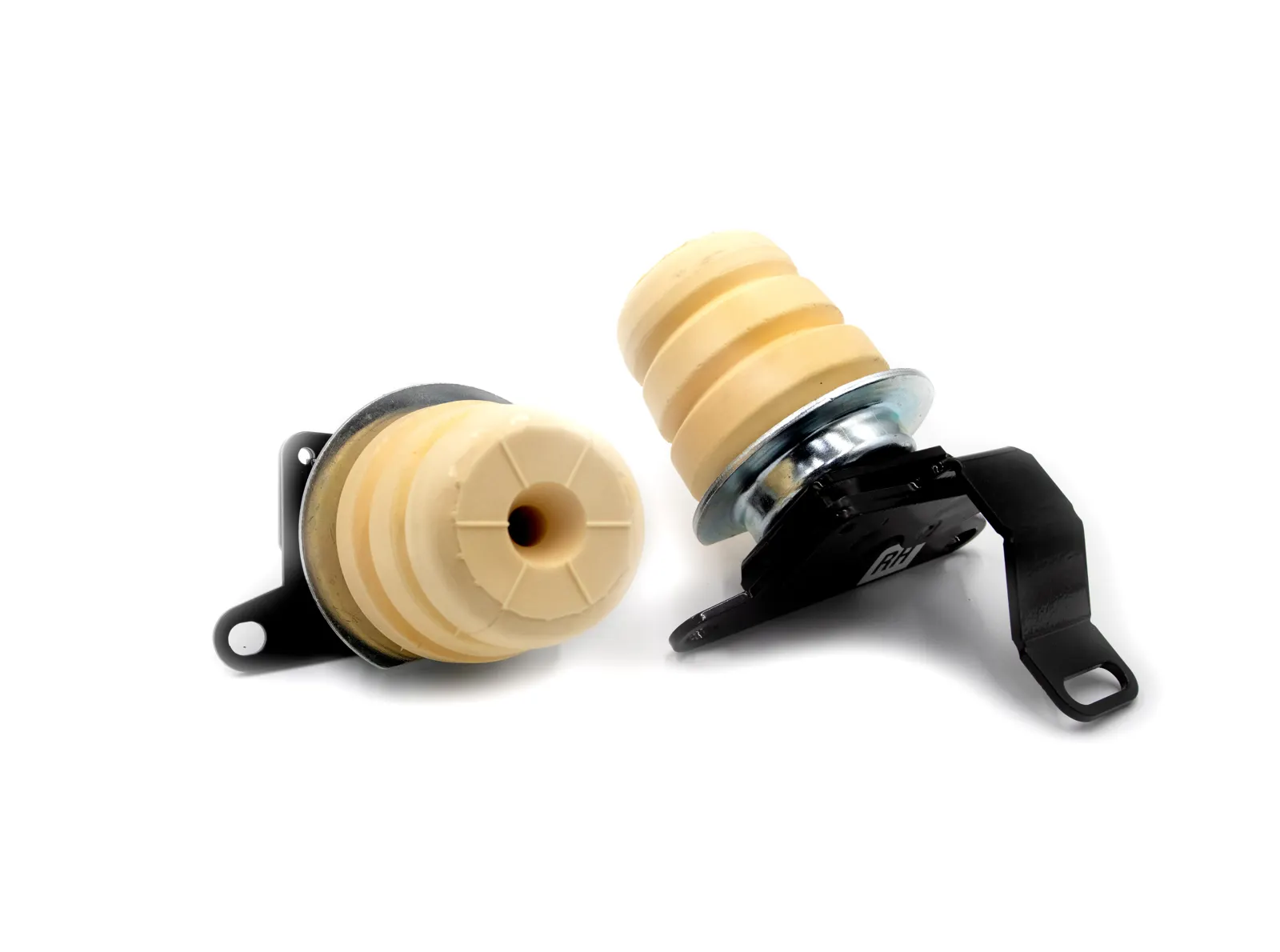

**Bump Stop Kit - Rear - TLC300 4x4 (2x per kit)**OASU4210302Bump stops that limit suspension travel and cushion full compression.

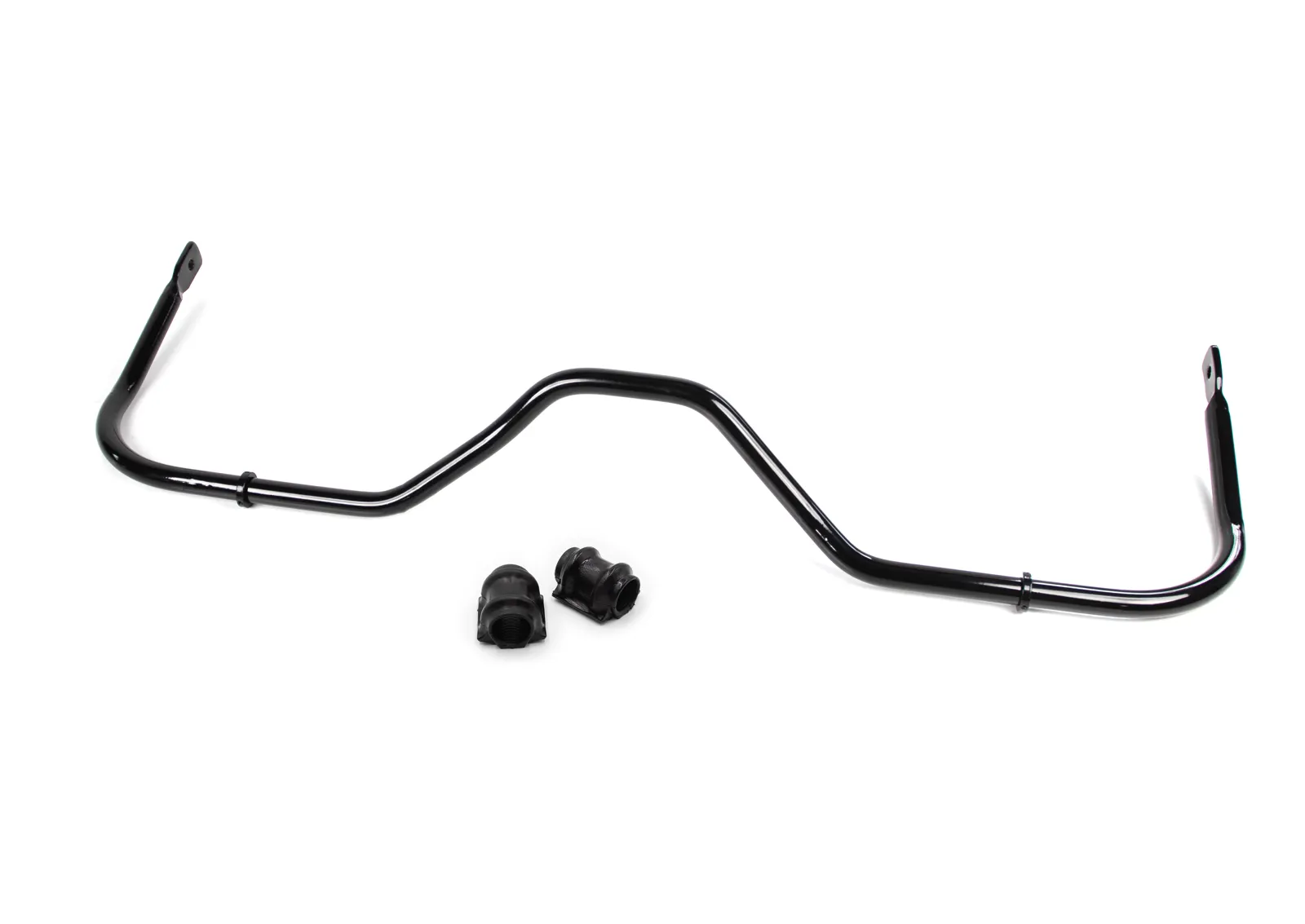

**Sway Bar - Rear - TLC300 - 26mm**OASU3830002Heavier sway bar that controls body roll under load.

Show all 14 rear parts

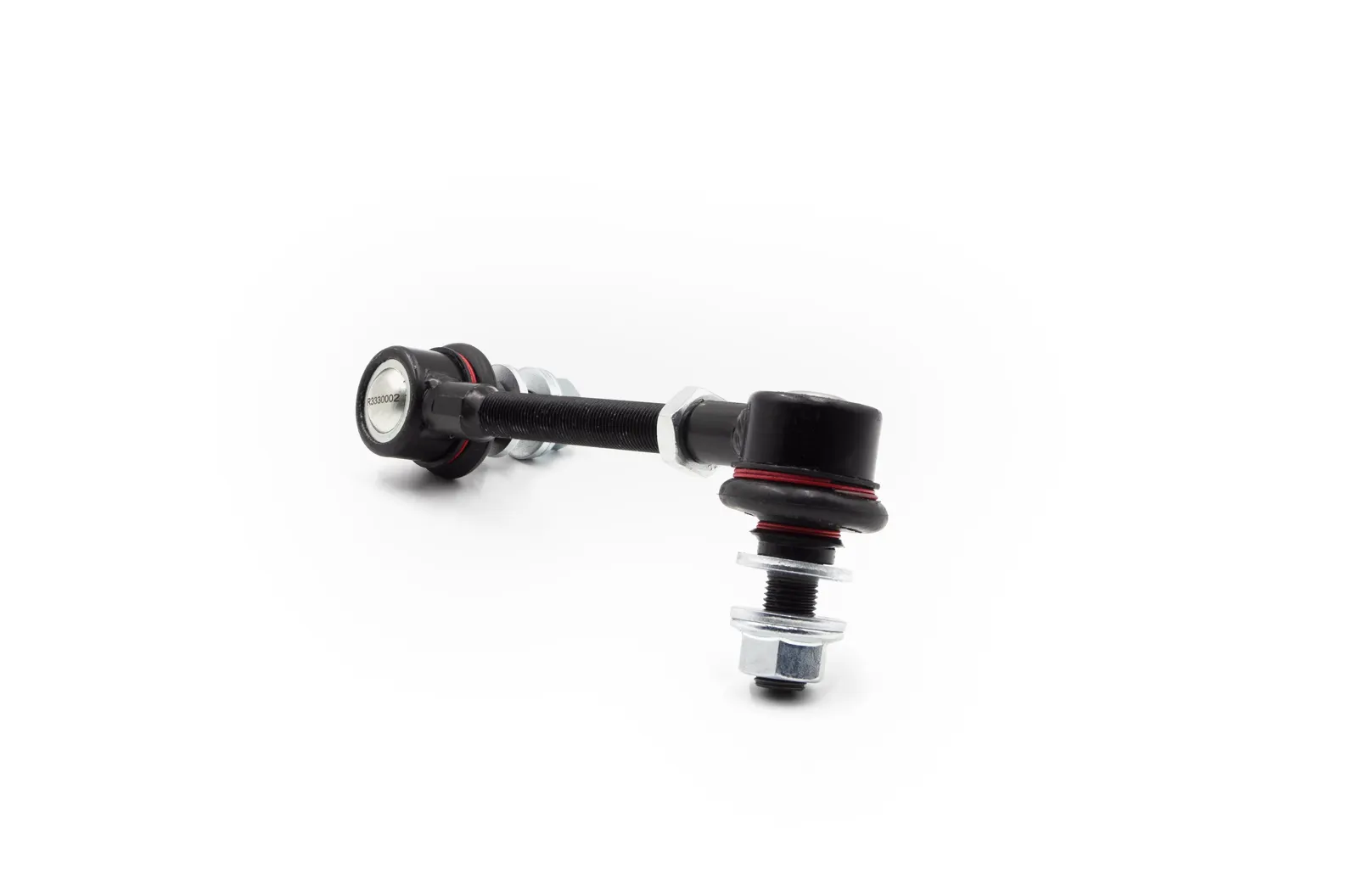

**Sway Bar Link - Rear - TLC300 (non KDSS)**OASU3330002Sway bar link sized for the lifted ride height.

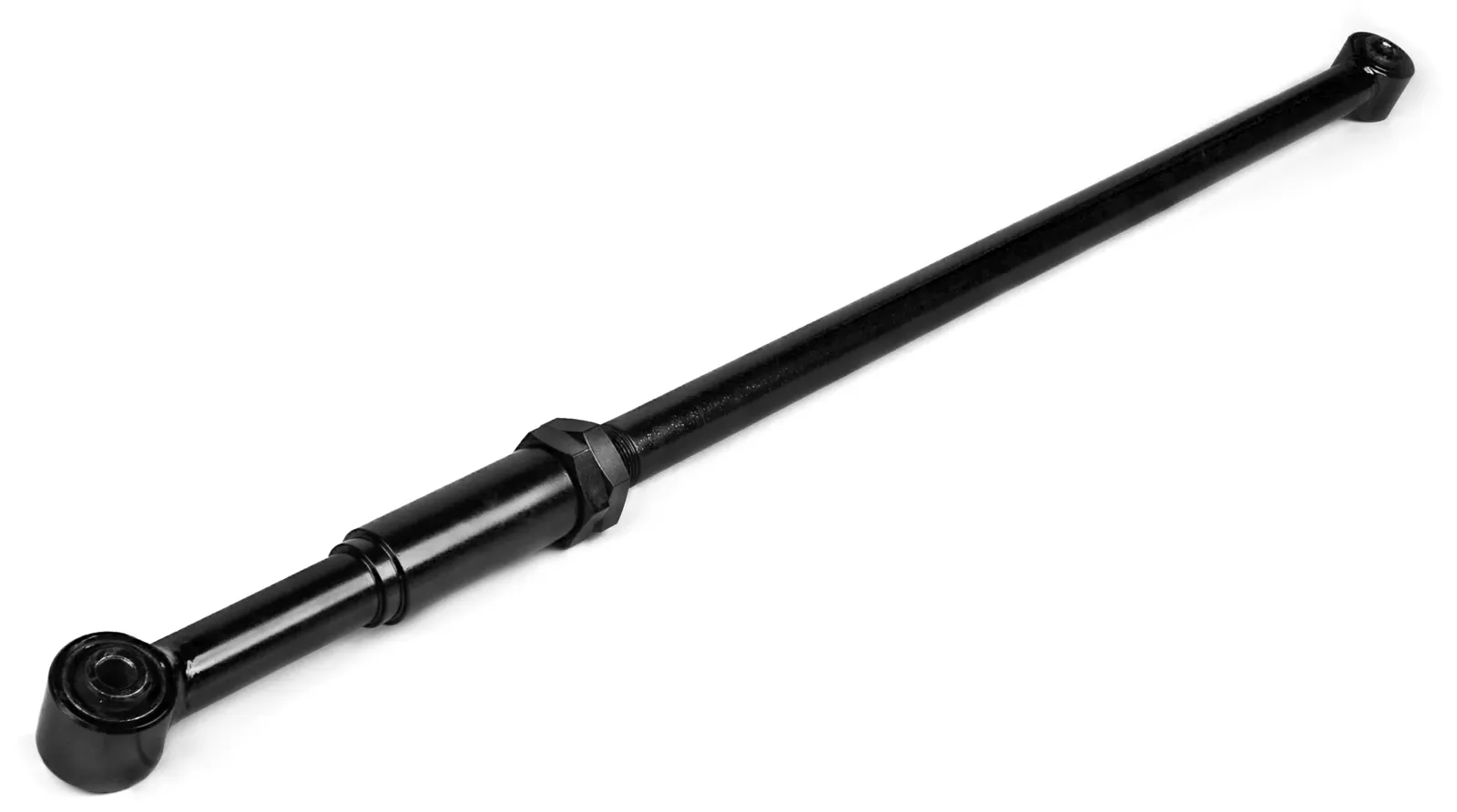

**Panhard Rod - Adjustable - TLC200/TLC300 - Rear**OASU3420002Adjustable panhard rod that centres the axle under the body after a lift.

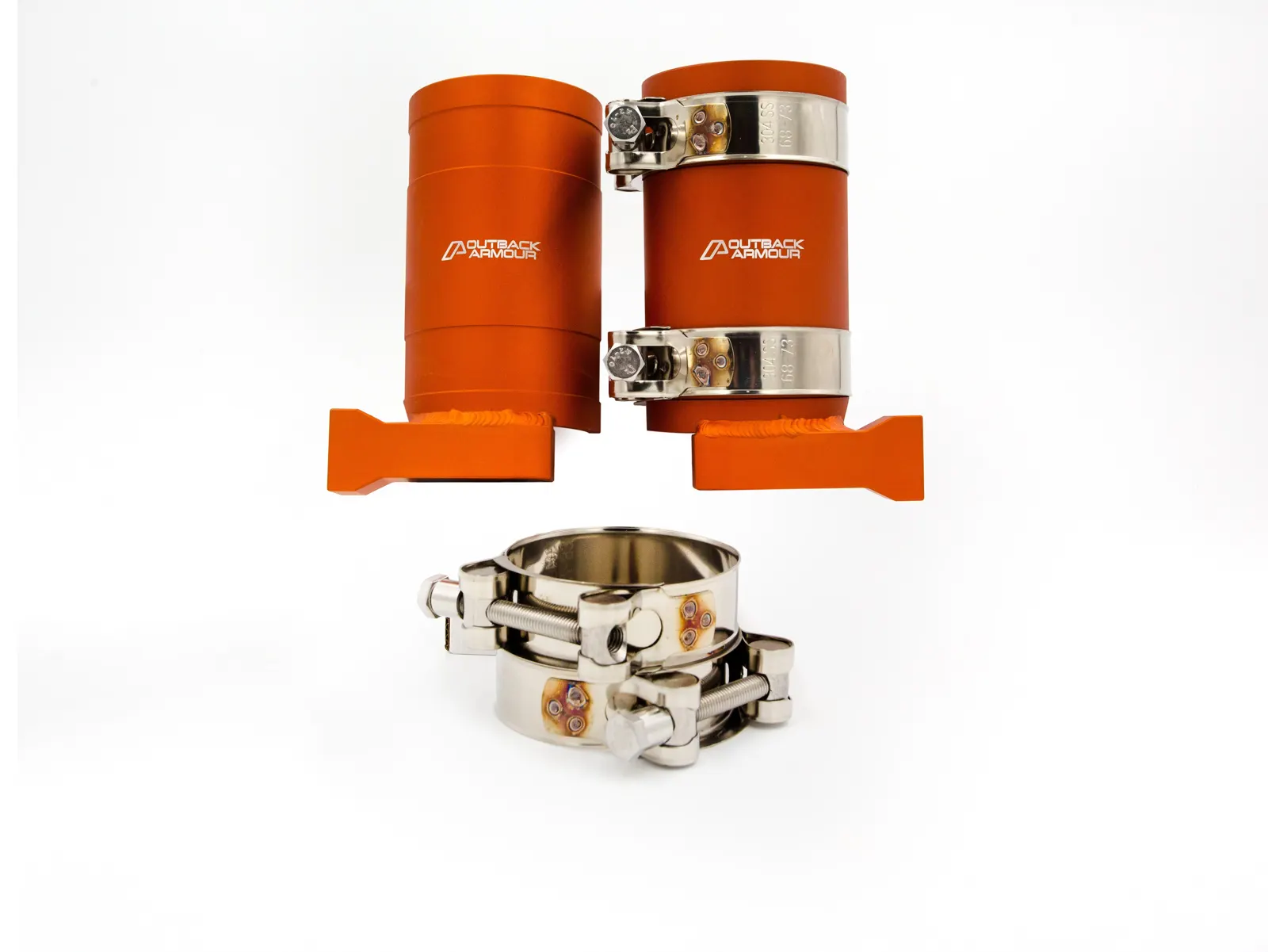

**Shock Absorber Stone Shield Kit - Rear - Includes T-bolt clamps**OASU3720004Stone shield that protects the rear shock bodies.

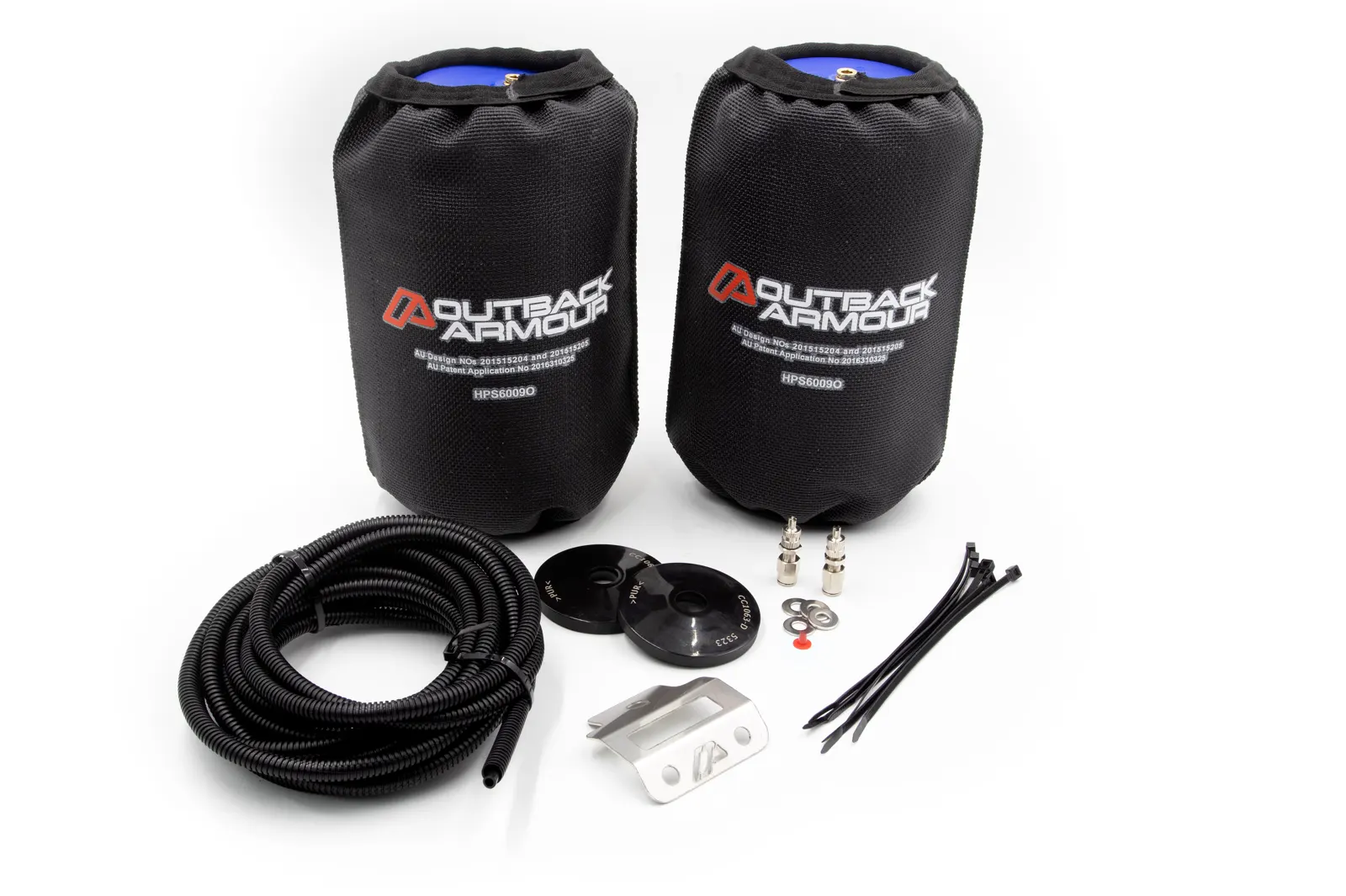

**Airbag Kit Rear- Raised- LC300 Series**OASU1205051HPRear air bag kit that supports the coil springs under heavy load.

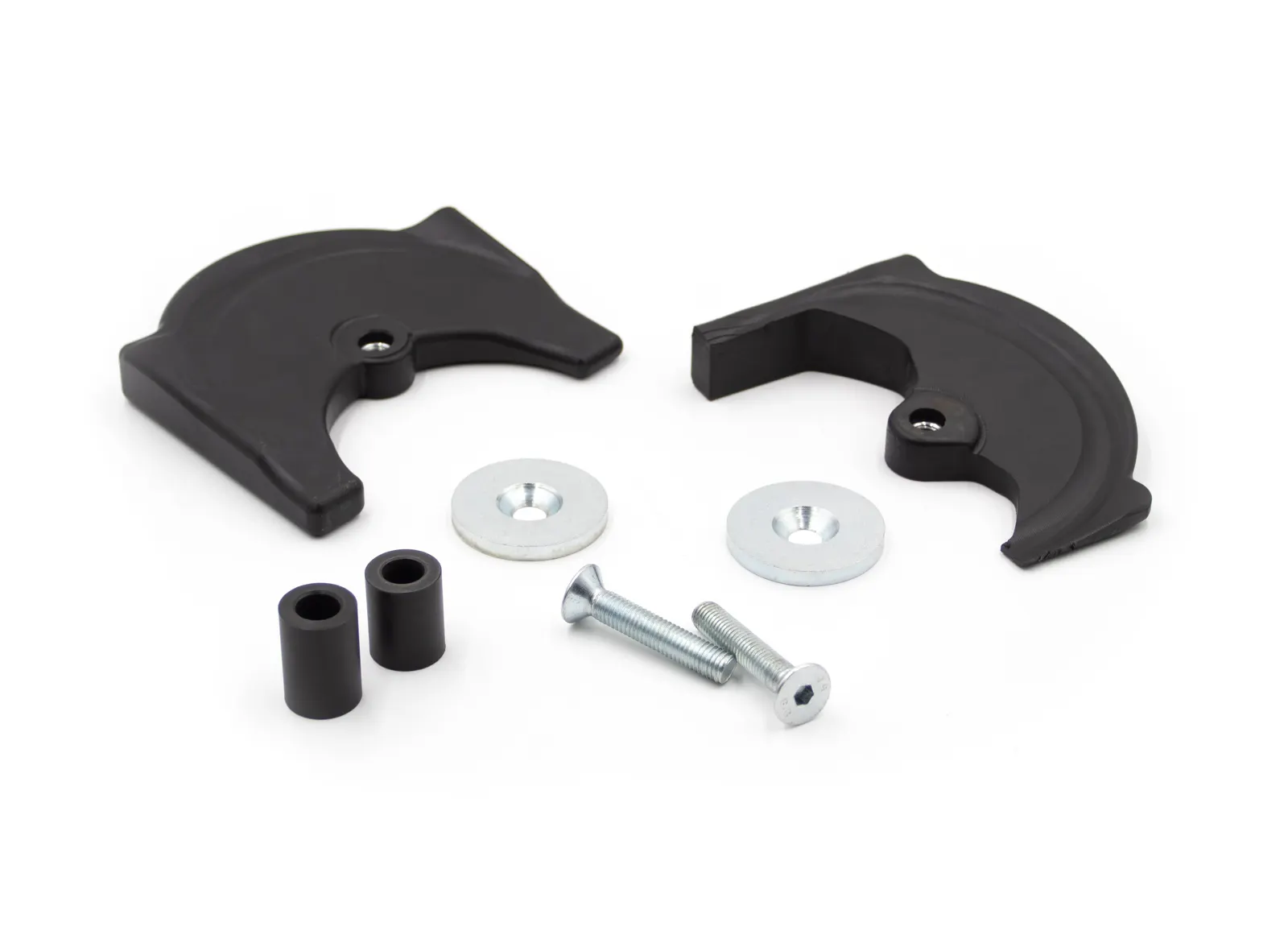

**Coil Perch Reinforcement Kit - LC300**OASU3730009Reinforcement kit for the rear coil spring perches.

**Coil Spring Seat - TLC300 Rear (suits airbags only)**OASU4210305Rear air bag kit that supports the coil springs under heavy load.

Compliance

Certification items

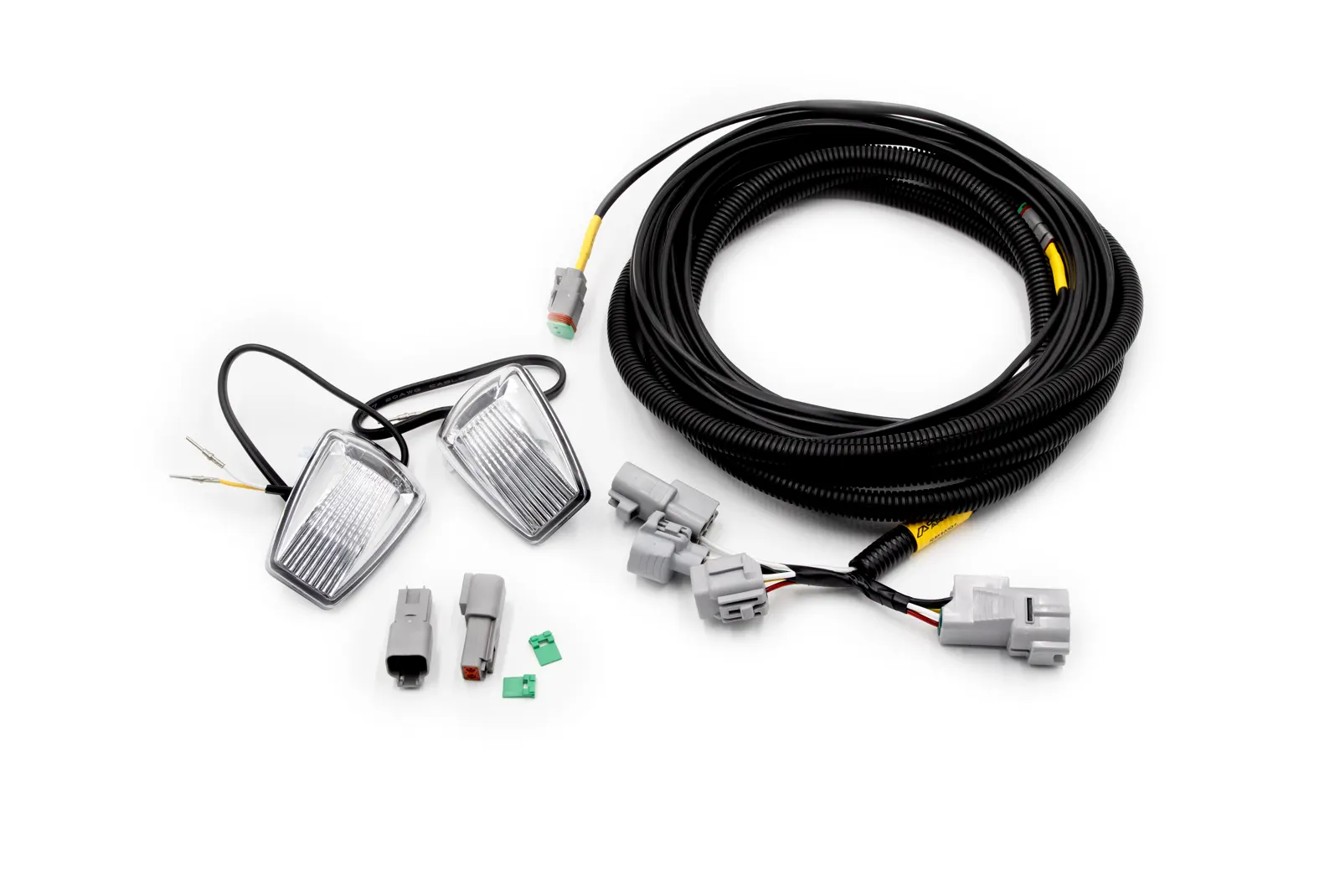

**TLC300 GVM - CAT 6 Indicator & Wiring Harness Kit**OASU4510301Side indicator kit needed for ADR compliance after the upgrade.

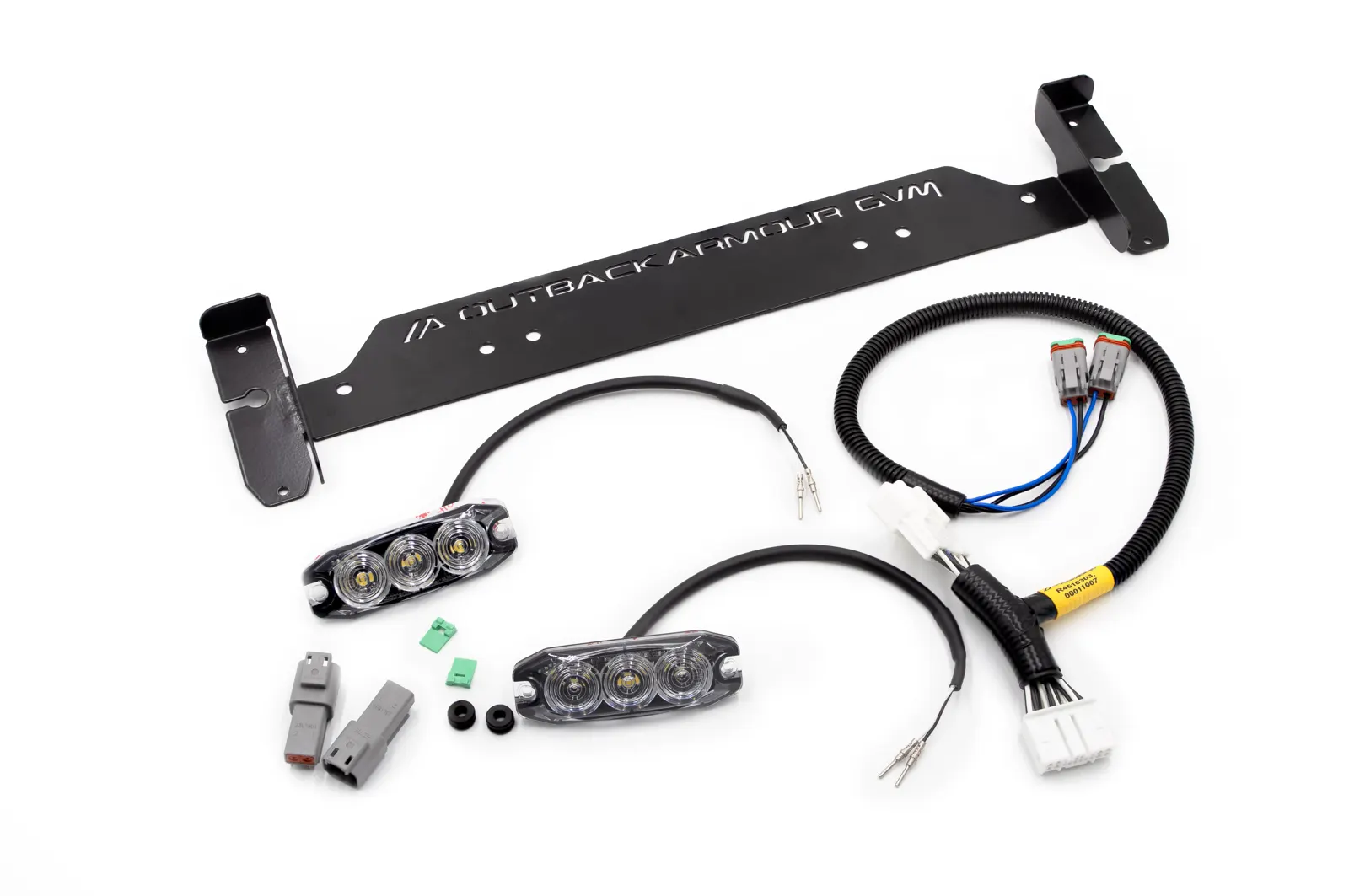

**Auxiliary Reverse Light Kit - LC300**OASU4510303Reverse light kit that keeps the reverse lights compliant on the lifted vehicle.

**GVM Document Pack (OMS+TPL) - TLC300 3800kg GVM**OAGVM063170-3800GVM document pack for the upgraded vehicle.

Outback Armour SVI Plate (AU)OASVIPLATE-AUSecure vehicle identification plate fitted as part of the GVM approval.

GVM Upgrade - SSM Approval (AU)OAGVM-SSM-AUFederal SSM approval used for pre registration GVM upgrades.

Vehicle Modification Plate - (WA)OAMODPLATE-WAState modification plate used for post registration approvals.

Vehicle Modification Plate - (NT)OAMODPLATE-NTState modification plate used for post registration approvals.

**GVM Document Pack (OMS+TPL) - TLC300 4200kg GVM**OAGVM063170-4200GVM document pack for the upgraded vehicle.

Specifications

Original GVM	3,280 kg
New GVM	3,800 kg or 4,200 kg
Front axle	1,630 kg to 1,800 kg
Rear axle	1,930 kg to 2,400 kg
GCM	6,750 kg; unchanged by the upgrade
Towing	3,500 kg braked (unchanged). Towing at full GVM: 2,950 kg (3,800 kg upgrade), 2,550 kg (4,200 kg upgrade)
Lift front	35mm
Lift rear	50mm
Registration	Pre or post registration (pre registration under the federal SSM approval through selected Outback Armour dealers; post registration as a state based approval, independently certified)
Approval	VTA-063170 (VTA, federal SSM approval)
Vehicle category	MC to NB1

Warranty

Outback Armour warranty

5 years, unlimited km on shocks, struts, coil and leaf springs, U-bolts, shackles and pins. Strut and shock bushes 1 year. Upper control arms 1 year or 20,000 km. Lifts over 50 mm are excluded.

Fitted by us in Miami and backed by the Opposite Lock network nationwide.

Fitted and certified in Miami

We fit and certify it on site

We fit Outback Armour GVM upgrades at our Miami workshop and complete the certification on site, so you drive away with the paperwork done.

An approved GVM kit has to be fitted complete, under its own kit part number, to be certified. We fit every part in the approved kit for your exact vehicle, and nothing is swapped or left out.

How GVM upgrades work, pre and post registration
