Outback Armour

GVM upgrade

Toyota LandCruiser 79 single cab (J7, 2023 on), 4 cyl and V8

Outback Armour's GVM upgrade for the Toyota LandCruiser 79 single cab (J7, 2023 on), 4 cyl and V8: a complete approved kit that lifts the legal weight your vehicle can carry. We fit it in Miami and complete the certification paperwork.

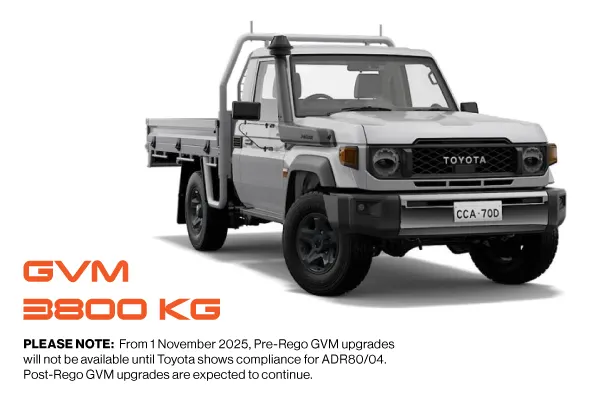

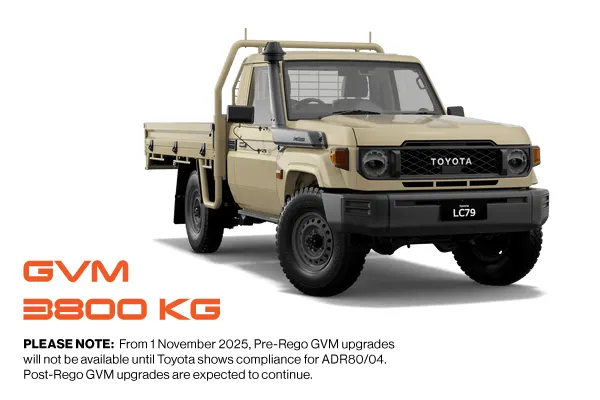

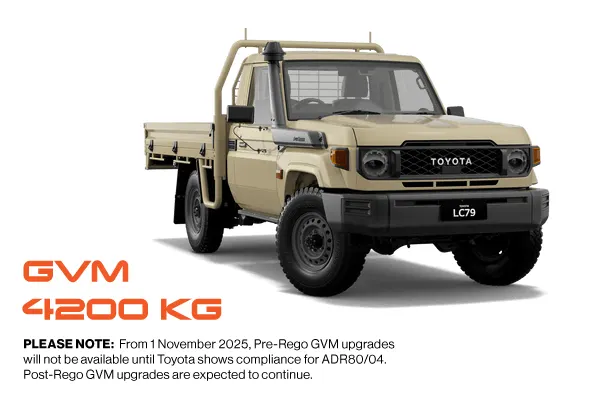

New GVM: 3,800 kg or 4,200 kg
Original GVM: 3,510 kg
Lift front / rear: 40 to 50mm / 50mm
Registration: Pre or post rego

Call or click for fitted price Fitting and certification are quoted for your vehicle.

Get your fitted price Call (07) 5572 1711 Text us

★ 4.9 from 1,732 Google reviews of The Garage Miami, home of Opposite Lock Gold Coast
Opposite Lock network member, nationwide warranty
Fitted in our Miami workshop. We only fit parts we supply.
Zip and Afterpay

We text you a fitted price within one business day.

Options

Trail (front)

OEM bumper, unladen

Expedition (front)

approx 50 to 100kg constant front load, such as a steel bullbar

Expedition HD (front)

approx 100 to 150kg constant front load, such as a steel bullbar and winch

Expedition (rear, 3,800 kg GVM)

50mm lift at approx 400kg; 200kg minimum rear load recommended

Expedition HD (rear, 3,800 kg GVM)

50mm lift at approx 600kg; 400kg minimum rear load required

Expedition HD (rear, 4,200 kg GVM)

50mm lift at approx 600kg; 400kg minimum rear load recommended

Digressive (DSV) shocks

Outback Armour: designed for endurance and to resist shock fade and heat, specifically for touring and fleet vehicles, with comfort and control on corrugations and rough roads.

Adjustable Internal Bypass (ADJ) shocks

Outback Armour: 20+ damping settings to set and forget or adjust; suits vehicles with varying loads, on and off road.

Ready to book it in? Tell us your vehicle and what you carry, and we text you a fitted price within one business day.

Get your fitted price Call (07) 5572 1711

Front end

Front components

**DSV - Shock Absorber - Front - LC70 / GU Patrol**OASU0140014-DSVShock absorber that controls spring movement and keeps the tyres in contact on rough ground.

**Shock Absorber - Front - GU Patrol/LC79 - Adjustable**OASU0165014-ADJShock absorber that controls spring movement and keeps the tyres in contact on rough ground.

**Shock Absorber - Front - LC70 Series - Adjustable (GVM) 2"**OASU0165014-GVMShock absorber that controls spring movement and keeps the tyres in contact on rough ground.

Steering Damper (Foam Cell) - LC70 Series (V8) & 2007+ 6cyl models — **Steering Damper (Foam Cell) - LC70 Series (V8) & 2007 on 6cyl models**OASU0954001Steering damper that settles steering shake on rough roads.

**Coil Springs - Front - TLC70 - Trail 50**OASU1070002Front coil spring that sets ride height and carries front accessory weight.

**Coil Springs - Front - TLC70 - Expedition**OASU1070003Front coil spring that sets ride height and carries front accessory weight.

**Bump Stop Spacer Kit - TLC70 - front (inside coil spring)**OASU3770003Bump stop spacer that keeps suspension travel in range with the lift.

**Bump Stop Spacer Kit - TLC70 - front chassis**OASU3770004Bump stop spacer that keeps suspension travel in range with the lift.

Show all 14 front parts

**Bump Stop 140 x 55 rubber LC70 front ( inside coil )**OASU4210070Bump stops that limit suspension travel and cushion full compression.

**Sway Bar - Front - 33mm - TLC78/79 (V8 Diesel)**OASU3870005Heavier sway bar that controls body roll under load.

**Caster Correction Kit - Patrol & L/Cruiser - 2 Deg Rubber**OASU210100KCaster correction bushes that restore steering caster after the lift.

**Coil Spring Isolator TLC70 - Front (10mm Rubber)**OASU2170010Rubber isolator that seats the front coil spring.

**Sway Bar Extension Bracket Kit - TLC70 Series**OASU3322006Sway bar spacer brackets that suit the lifted ride height.

Front Brake Line spacer Kit - TLC70 (2024+) 4cyl — **Front Brake Line spacer Kit - TLC70 (2024 on) 4cyl**OASU3770012Brake line part that gives the brakes room after the lift.

Rear end

Rear components

**Shock Absorber - Rear - TLC70 - Digressive (DSV)**OASU0140032-DSVShock absorber that controls spring movement and keeps the tyres in contact on rough ground.

**Shock Absorber - Rear - LC70 Series - Adjustable**OASU0165032-ADJShock absorber that controls spring movement and keeps the tyres in contact on rough ground.

**Shock Absorber - Rear - TLC79 Coilover - Adjustable** OASU0165103-GVMShock absorber that controls spring movement and keeps the tyres in contact on rough ground.

**Leaf Spring - LC78/79 Series - Expedition**OASU1178002Rear leaf spring pack that sets ride height and carries the rear load.

**Leaf Spring - LC78/79 Series - Exped HD**OASU1178010Rear leaf spring pack that sets ride height and carries the rear load.

**Leaf Spring - LC78/79 Series - Exped XHD**OASU1178016Rear leaf spring pack that sets ride height and carries the rear load.

**Greasable Shackle - TLC70 Series (long)**OASU2400058Greasable shackle that lets the leaf spring change length as it flexes.

**Greasable Pin - TLC76/78/79 Series**OASU2500043Spring pin that locates the leaf spring eye.

Show all 16 rear parts

**Leaf Spring Bush Kit - TLC76/78/79 Series**OASU210025KPolyurethane bushes for the leaf spring eyes and shackles.

**U-Bolt - M14 x 84 ID (RND) x 235 L**OASU2384002U bolts that clamp the leaf spring to the axle.

**U-Bolt - M14 x 84 ID (RND) x 245 L**OASU2384004U bolts that clamp the leaf spring to the axle.

**U-Bolt - M14 x 84 ID (RND) x 255 L**OASU2384005U bolts that clamp the leaf spring to the axle.

**Bump Stop Kit - Rear - TLC70 Series (2x per kit)**OASU4270004Bump stops that limit suspension travel and cushion full compression.

**U-Bolt Skid Plate - TLC70 Series V8**OASU1570002Skid plate that protects the U bolts and spring under the axle.

**Handbrake Cable Bracket Kit - TLC70 Series**OASU3770002Handbrake cable bracket or spacer that gives the cable room after the lift.

**ABS Bracket Kit (Front/Rear) - TLC70 Series**OASU3770011ABS bracket kit that gives the sensor leads room after the lift.

Compliance

Certification items

GVM Upgrade - SSM Approval (AU)OAGVM-SSM-AUFederal SSM approval used for pre registration GVM upgrades.

Vehicle Modification Plate - (WA)OAMODPLATE-WAState modification plate used for post registration approvals.

Outback Armour SVI Plate (AU)OASVIPLATE-AUSecure vehicle identification plate fitted as part of the GVM approval.

Vehicle Modification Plate - (NT)OAMODPLATE-NTState modification plate used for post registration approvals.

**GVM Document Pack (OMS+TPL) - TLC70 J7 (78,79) 3800kg GVM**OAGVM064236-3800GVM document pack for the upgraded vehicle.

**GVM Document Pack (OMS+TPL) - TLC70 J7 (78,79) 4200kg GVM**OAGVM064236-4200GVM document pack for the upgraded vehicle.

Specifications

Original GVM	3,510 kg
New GVM	3,800 kg or 4,200 kg
Front axle	1,500 kg to 1,700 kg
Rear axle	2,300 kg to 2,600 kg
GCM	7,010 kg; unchanged by the upgrade
Towing	3,500 kg braked (unchanged). Towing at full GVM: 3,210 kg (3,800 kg upgrade), 2,810 kg (4,200 kg upgrade)
Lift front	40 to 50mm
Lift rear	50mm
Registration	Pre or post registration (pre registration under the federal SSM approval through selected Outback Armour dealers; post registration as a state based approval, independently certified)
Approval	VTA-064236 (VTA, federal SSM approval)
Vehicle category	NB1 (unchanged)

Warranty

Outback Armour warranty

5 years, unlimited km on shocks, struts, coil and leaf springs, U-bolts, shackles and pins. Strut and shock bushes 1 year. Upper control arms 1 year or 20,000 km. Lifts over 50 mm are excluded.

Fitted by us in Miami and backed by the Opposite Lock network nationwide.

Fitted and certified in Miami

We fit and certify it on site

We fit Outback Armour GVM upgrades at our Miami workshop and complete the certification on site, so you drive away with the paperwork done.

An approved GVM kit has to be fitted complete, under its own kit part number, to be certified. We fit every part in the approved kit for your exact vehicle, and nothing is swapped or left out.

How GVM upgrades work, pre and post registration

Ready to book it in? Tell us your vehicle and what you carry, and we text you a fitted price within one business day.

Get your fitted price Call (07) 5572 1711

Downloads

Video

Video: Outback Armour suspension range: the DSV — Outback Armour suspension range: the DSV

Video: Suspension FYI Series ADJ Range — Suspension FYI Series ADJ Range

More for this vehicle

Outback Armour suspension kitToyota LandCruiser 200 Series

Outback Armour suspension kitToyota LandCruiser 300 Series

Outback Armour suspension kitToyota LandCruiser 76 Series Wagon

Outback Armour suspension kitToyota LandCruiser 78 Series Troop Carrier

Ready to book it in? Tell us your vehicle and what you carry, and we text you a fitted price within one business day.

Get your fitted price Call (07) 5572 1711

Prices are the supplier's recommended retail price for the part, plus fitment by our technicians, excluding freight. Freight is charged where stock is shipped to us for your job. Every part is fitted in our Miami workshop and covered by the maker's warranty plus our workmanship guarantee. Prices checked 21 October 2026.
