TrailMax
TrailMax Tub Rack

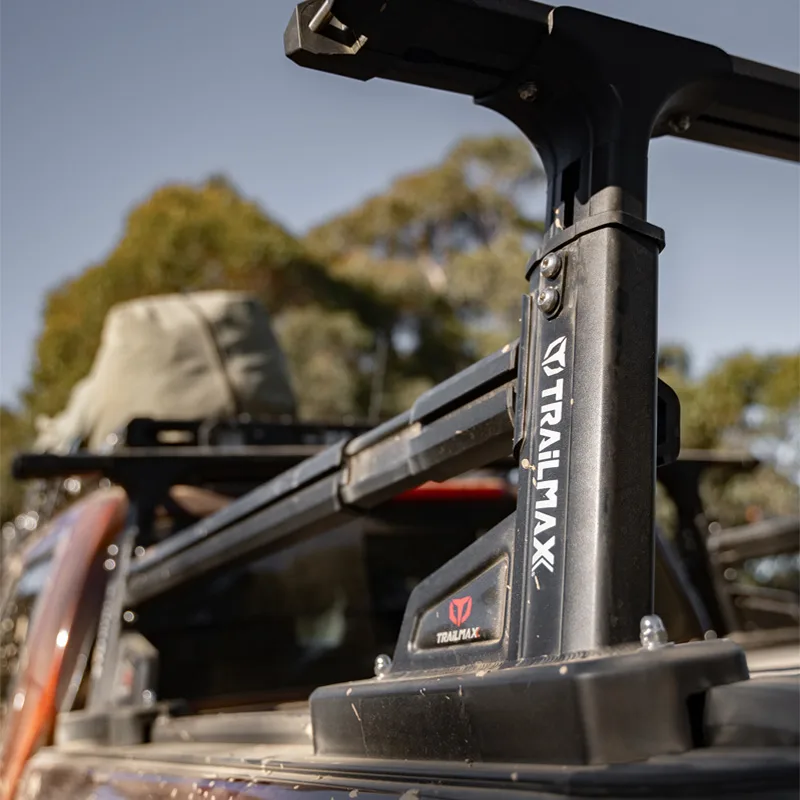

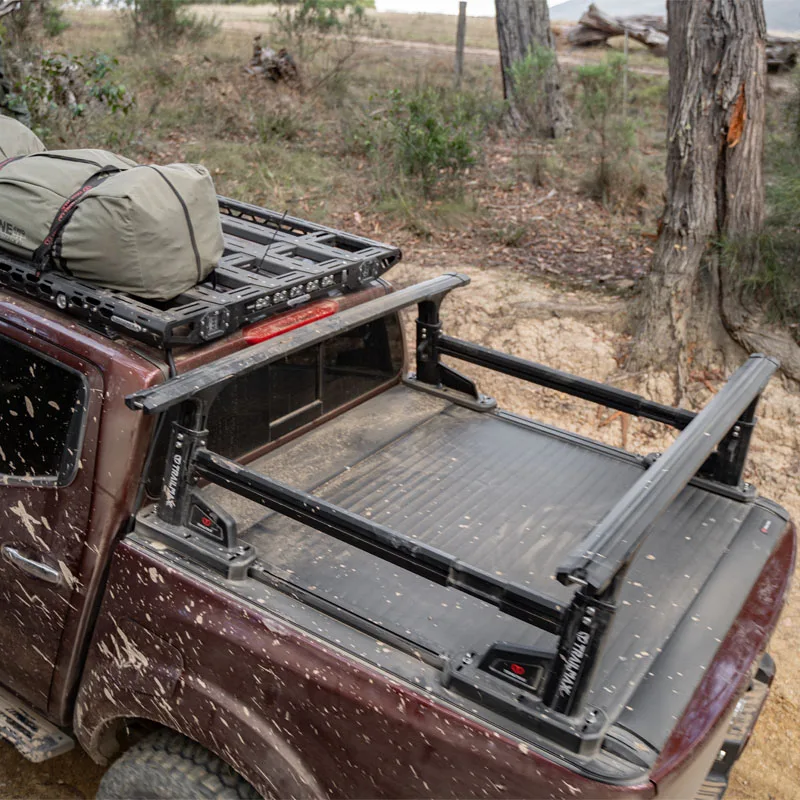

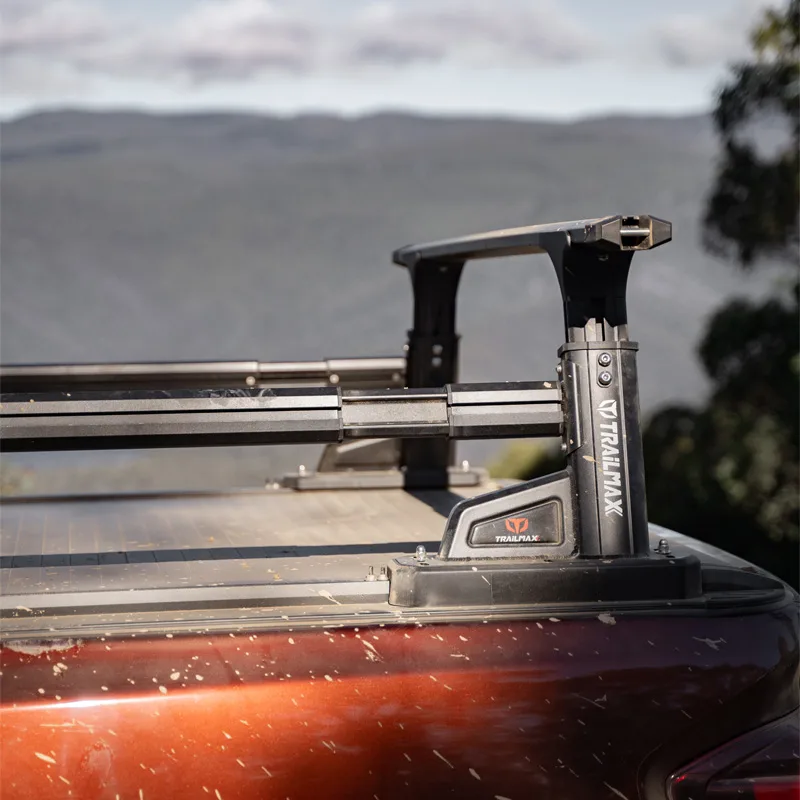

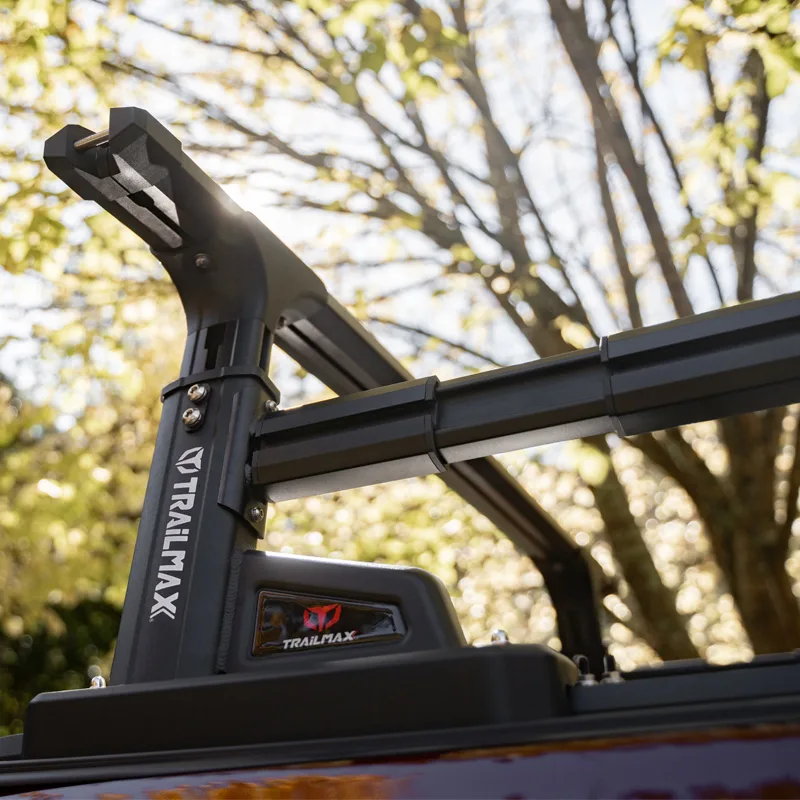

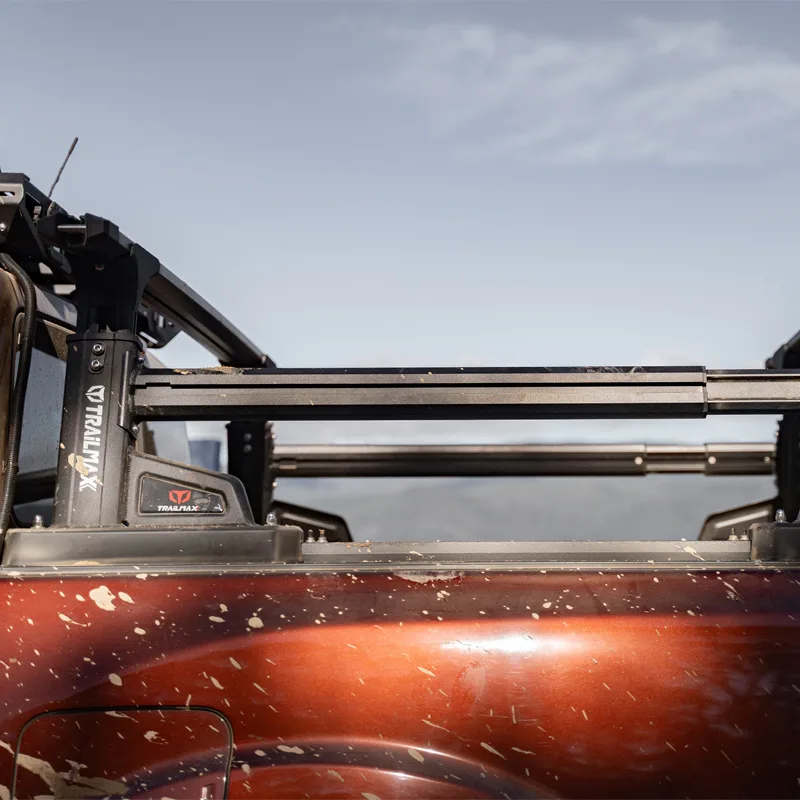

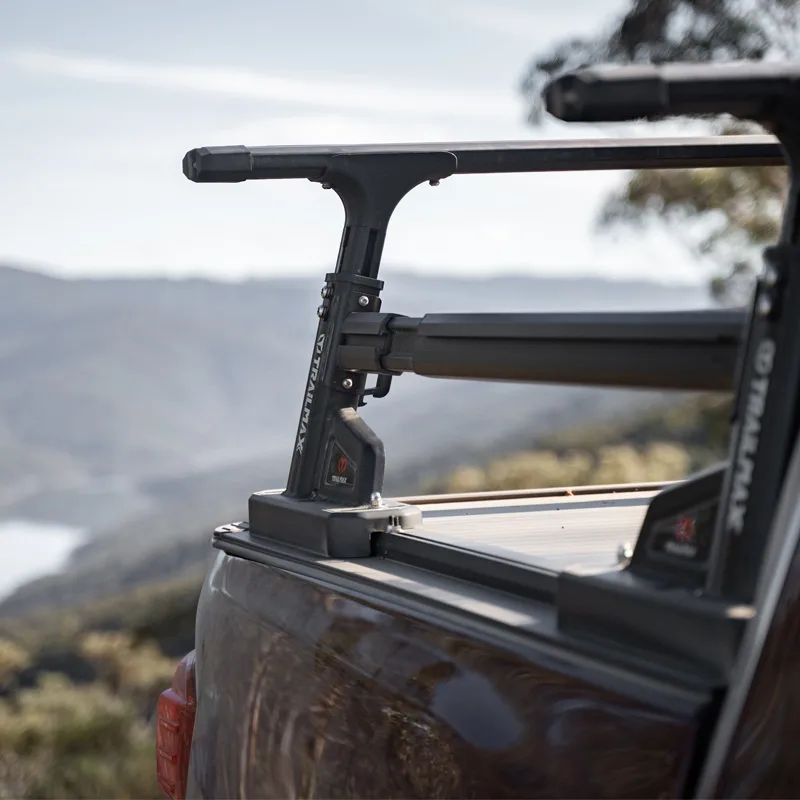

An all alloy, height and length adjustable tub rack that mounts directly on the TrailMax electric roller shutter without drilling, or straight onto a ute tub.
From RRP $1,960 + fitment (excl. freight)
- ★ 4.9 from 1,732 Google reviews of The Garage Miami, home of Opposite Lock Gold Coast
- Opposite Lock network member, nationwide warranty
- Fitted in our Miami workshop. We only fit parts we supply.
- Zip and Afterpay
About the Tub Rack
An all alloy, height and length adjustable tub rack that mounts directly on the TrailMax electric roller shutter without drilling, or straight onto a ute tub.
It weighs 39 kg and is rated to 230 kg dynamic and 150 kg off road.
It pairs with a TrailMax roof rack for more mounting options.
Features
- Mounts on the roller shutter No drilling on the TrailMax electric roller shutter

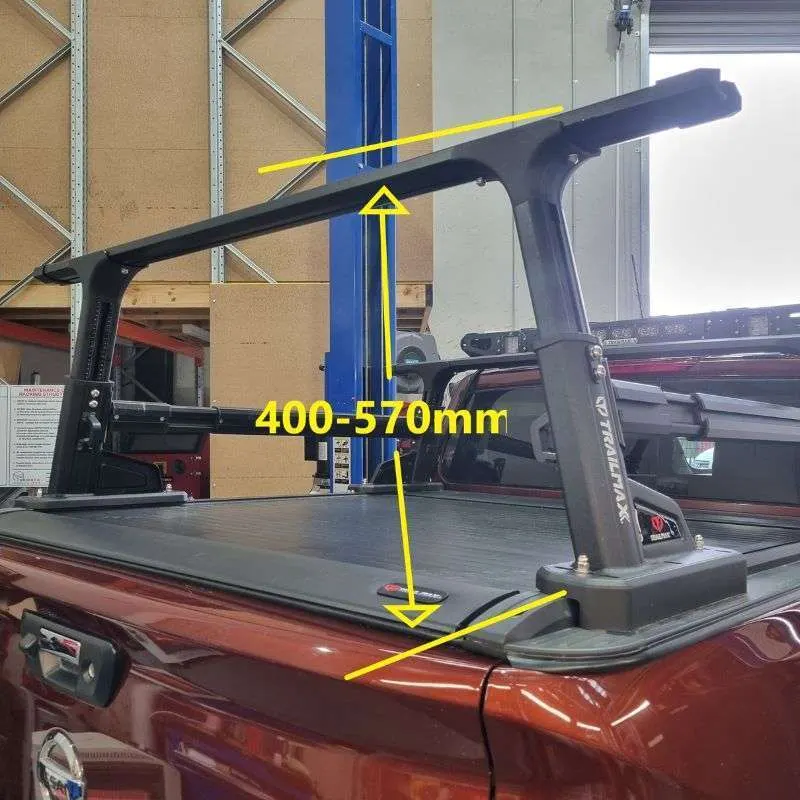

- Height adjustable 400 to 570 mm on small utes, 430 to 590 mm on large American utes
- All alloy 39 kg, black powder coat
- Load rated 230 kg dynamic, 250 kg static, 150 kg off road
- Full longitudinal adjustment
Options
Dual cab utes such as Triton MV, Ranger, HiLux
Full size American trucks
Want it fitted? Tell us your ute and we text you a fitted price within one business day.
Get your fitted priceCall (07) 5572 1711Specifications
| Weight | 39 kg |
|---|---|
| Height | 400 to 570 mm (small ute), 430 to 590 mm (large American ute) |
| Length adjustment | 1280 to 1860 mm (large American ute) |
| Load rating | 230 kg dynamic, 250 kg static, 150 kg off road |
| Material | Alloy, black powder coat |
| What's in the box | Tub rack uprights and cross members, Mounting hardware |
| Brand | TrailMax |
| Warranty | 2 year TrailMax warranty. |
| Price | From RRP $1,960 + fitment (excl. freight) |
Downloads
Fitted in Miami
We fit it at our Miami workshop and check everything is secure and working before you drive away.
Vehicles it suits
1 fitments listed. Prices are RRP plus fitment, excluding freight.
| Vehicle | Part number | RRP | Quote |
|---|---|---|---|
| Ute tubs, TrailMax Roller Shutter and others; listing shown for Mitsubishi Triton MV 2024 on | TR | $1,960 | Get price |
Often fitted with the Tub Rack
Related products
Want it fitted? Tell us your ute and we text you a fitted price within one business day.
Get your fitted priceCall (07) 5572 1711Prices are the supplier's recommended retail price for the part, plus fitment by our technicians, excluding freight. Freight is charged where stock is shipped to us for your job. Every part is fitted in our Miami workshop and covered by the maker's warranty plus our workmanship guarantee. Prices checked 21 October 2026.
