Maxliner Venture Canopy Gen 2
The Venture Gen 2 is Maxliner's colour coded dual cab canopy with a steel reinforced internal frame, push button lift up side windows and a front lift up window.
From RRP $5,195 + fitment (excl. freight)
- ★ 4.9 from 1,732 Google reviews of The Garage Miami, home of Opposite Lock Gold Coast
- Opposite Lock network member, nationwide warranty
- Fitted in our Miami workshop. We only fit parts we supply.
- Zip and Afterpay
About the Venture Canopy Gen 2
The Venture Gen 2 is Maxliner's colour coded dual cab canopy with a steel reinforced internal frame, push button lift up side windows and a front lift up window.
Gen 2 adds window switches on both sides and a hard wired interior light.
It fits with no drilling and works with the vehicle's central locking.
Features
- Steel reinforced frame Internal steel structure carries roof racks, rooftop tents and trade gear
- Push button entry Handle free lift up side windows on gas struts, central locking on all windows
- Dual side switching Window and rear door switches on both sides, hard wired LED interior light
- Front lift up window Ventilation and easy cleaning of the cab rear window
- Factory look Rear spoiler and colour coded lower glass trim, body colour or two tone black accent
- No drill fitting Vehicle specific fit, premium roof rails included
Options
Painted in the vehicle's factory colour code
Factory colour with black accent panels
Matched to each vehicle's factory colours; the part number changes with the colour
Optional sliding or lift up side window for dogs (F554018796)
Optional solid side panel in place of a window (F554018897)

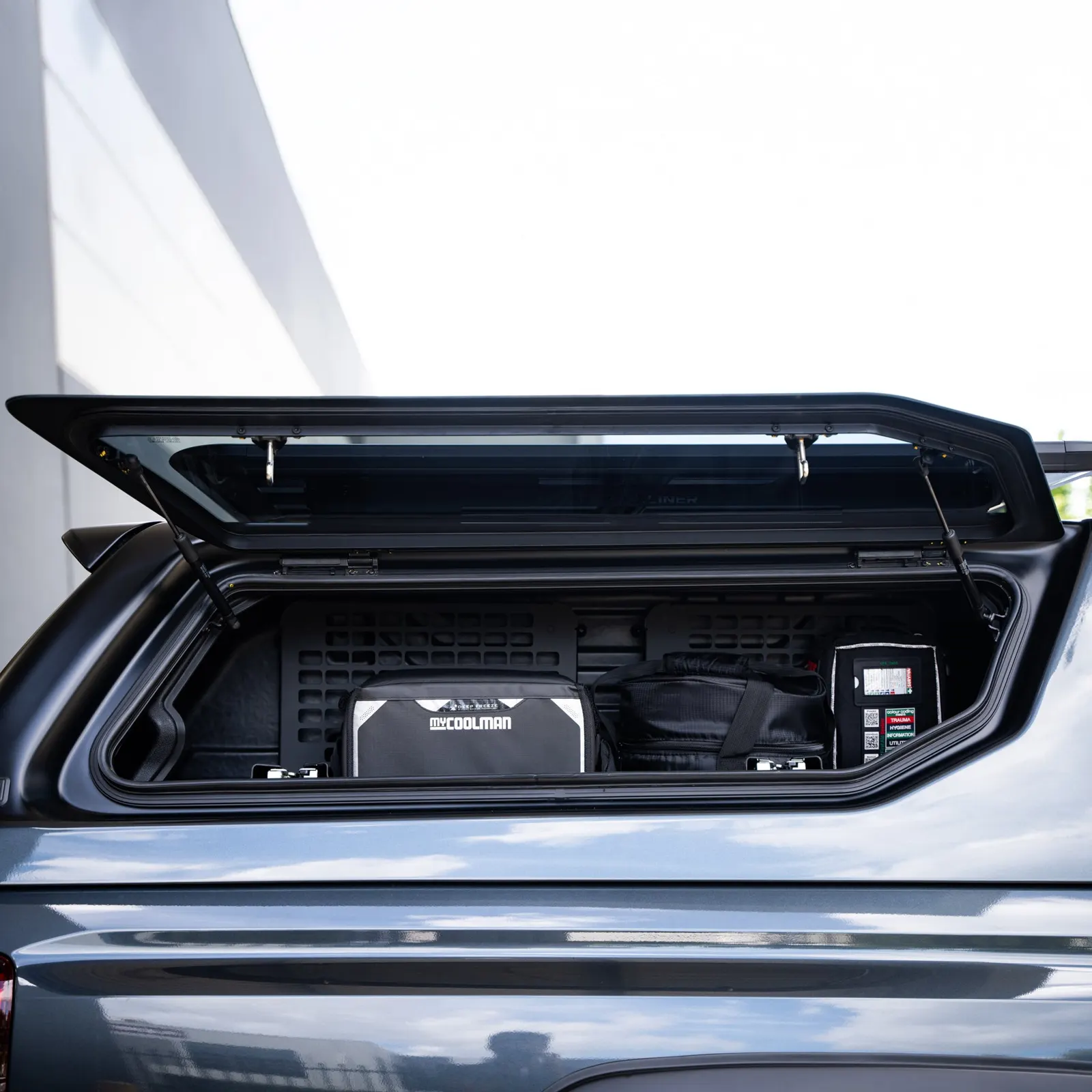

Storage box that sits in the side window cavity, sold separately
Roof rack legs, X-Country platform racks and solar shades sold separately
Want it fitted? Tell us your ute and we text you a fitted price within one business day.
Get your fitted priceCall (07) 5572 1711Specifications
| Roof load | 150 kg dynamic, 350 kg static |
|---|---|
| Canopy weight | 95 kg (BT-50), 96 kg (HiLux 2026), 97 kg (Navara 2026, Triton MV) |
| Construction | Painted canopy shell with internal steel reinforcement |

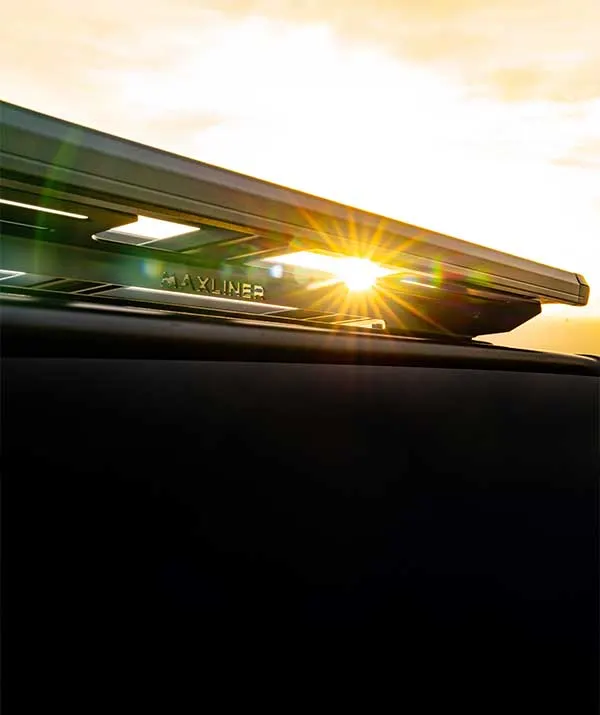

| Roof rails | Premium roof rails included |
| Lighting | Hard wired 12V LED interior light, activated via the rear door |
| Locking | Central locking compatible on all external windows and rear door |
| Cab type | Dual cab |
| Dimensions | See the Maxliner dimension drawings (Ranger 2022 on, HiLux 2015 to 2025, D-Max and BT-50 2020 on) |
| What's in the box | Venture canopy, painted to order, Premium roof rails, Vehicle specific no drill fitting kit |
| Brand | Maxliner |
| Warranty | Maxliner states a three year warranty on the Venture canopy. Canopy glass is not covered under Maxliner's warranty terms. |
| Price | From RRP $5,195 + fitment (excl. freight) |
Downloads
- Venture Canopy dimensions, Ford Ranger 2022 onPDF from Maxliner
- Venture Canopy dimensions, Toyota HiLux 2015 to 2025PDF from Maxliner
- Venture Canopy dimensions, Isuzu D-Max and Mazda BT-50 2020 onPDF from Maxliner
- Maxliner Ford Ranger 2022 on range flyerPDF from Maxliner
- Maxliner Toyota HiLux 2015 to 2025 range flyerPDF from Maxliner
- Maxliner Toyota HiLux 2026 on accessory rangePDF from Maxliner
- Maxliner Isuzu D-Max 2020 on range flyerPDF from Maxliner
- Maxliner Mazda BT-50 2020 on range flyerPDF from Maxliner
- Maxliner Volkswagen Amarok 2023 on product rangePDF from Maxliner
- Maxliner Nissan Navara 2026 on range flyerPDF from Maxliner
- Maxliner Mitsubishi Triton MV range flyerPDF from Maxliner
- Maxliner BYD Shark Venture Canopy brochurePDF from Maxliner
Fitted in Miami
We fit it at our Miami workshop and check everything is secure and working before you drive away.
Vehicles it suits
11 fitments listed. Prices are RRP plus fitment, excluding freight.
| Vehicle | Part number | RRP | Quote |
|---|---|---|---|

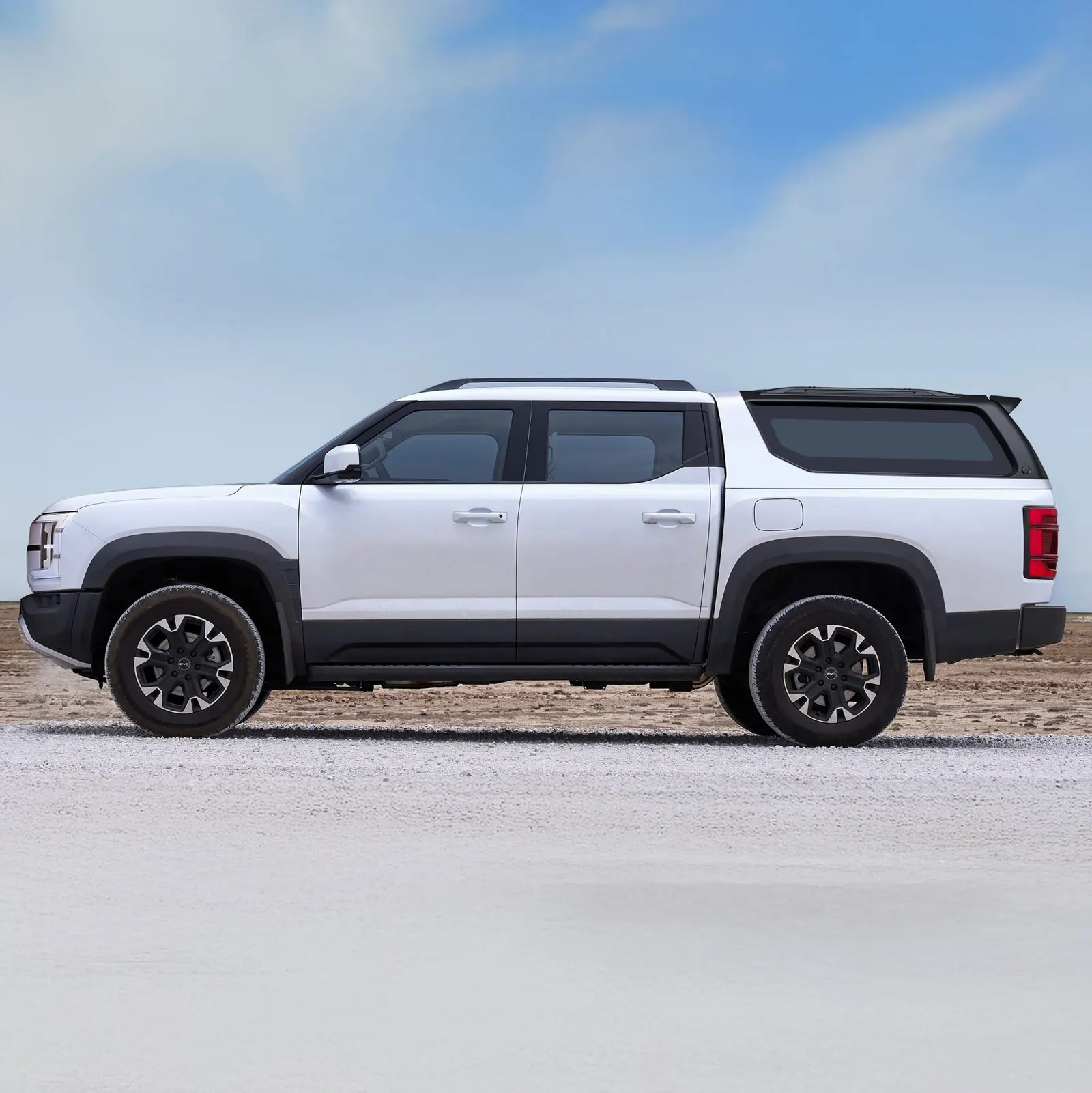

| BYD Shark 6 dual cab | S358K01BYDM5DSB | $5,195 | Get price |
| Ford Ranger Next Gen July 2022 on dual cab | S358J01FODM5M68 | $5,195 | Get price |
| Isuzu D-Max 2020 on dual cab | S358H01ISDM5587 | $5,195 | Get price |
| Mazda BT-50 TF 2020 on dual cab | S358H01MADM517Y | $5,195 | Get price |

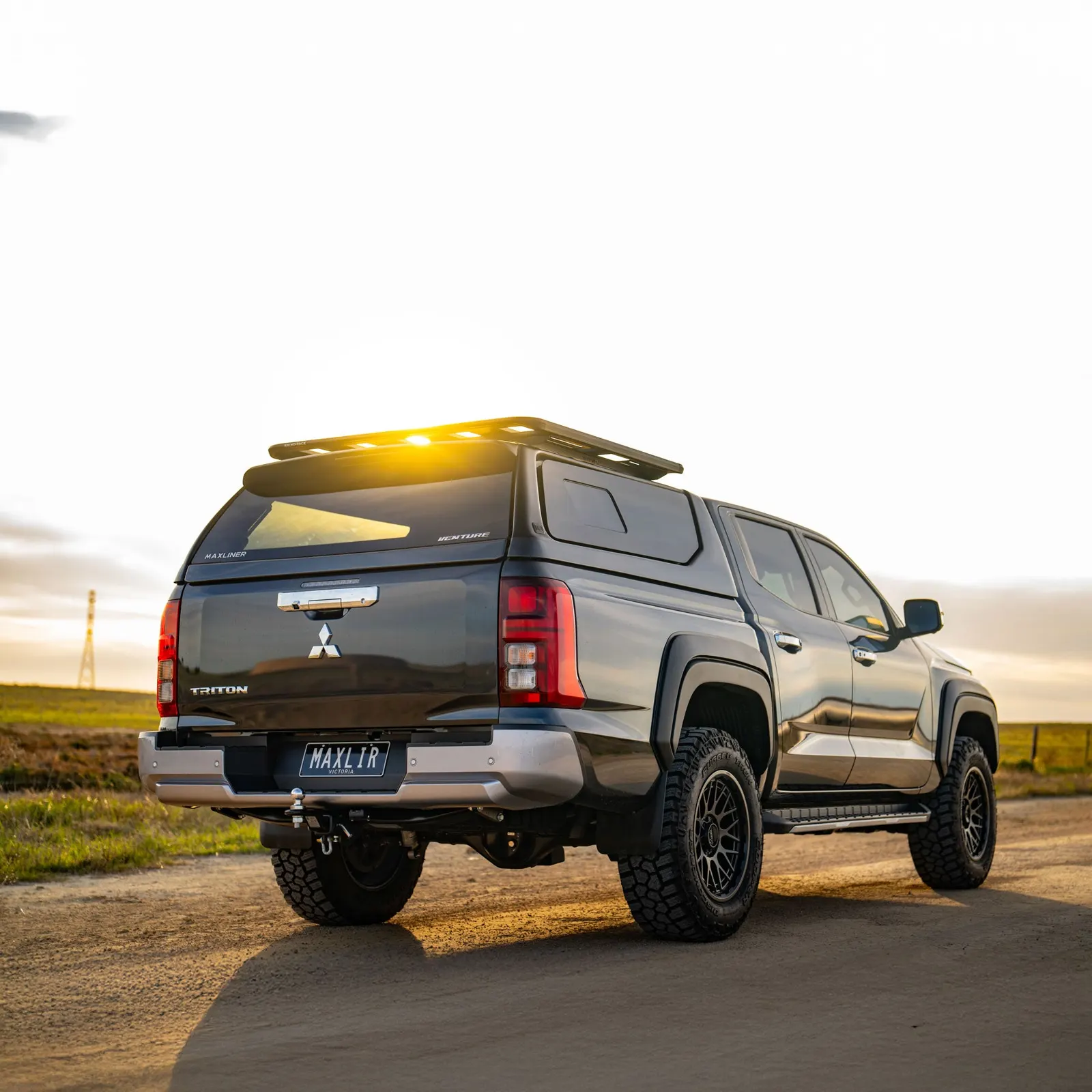

| Mitsubishi Triton MV 2024 on dual cab | S358H01MIDM5D232 | $5,195 | Get price |

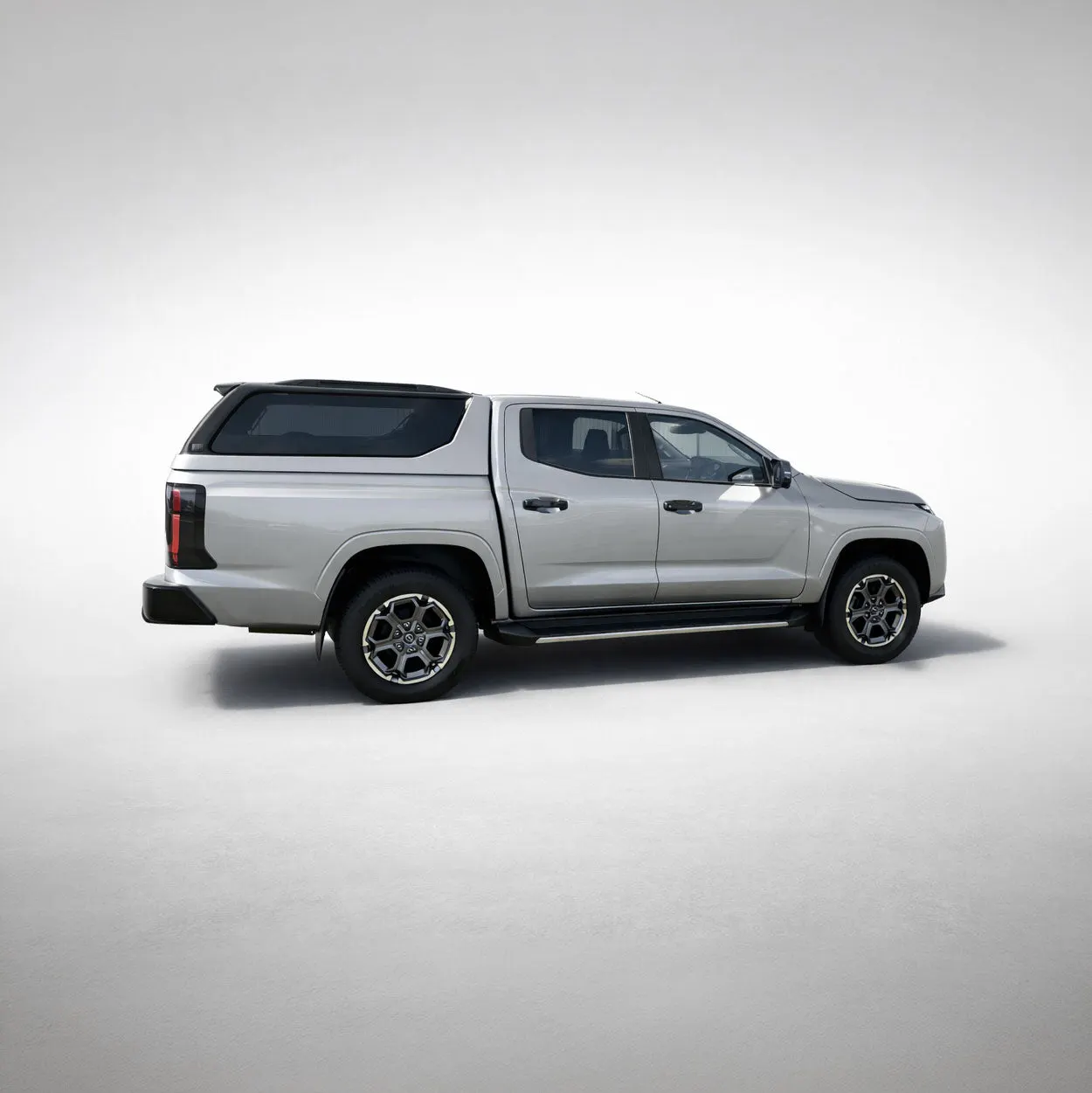

| Nissan Navara D27 2026 on dual cab | VENTGEN2NAV262TECR | $5,195 | Get price |

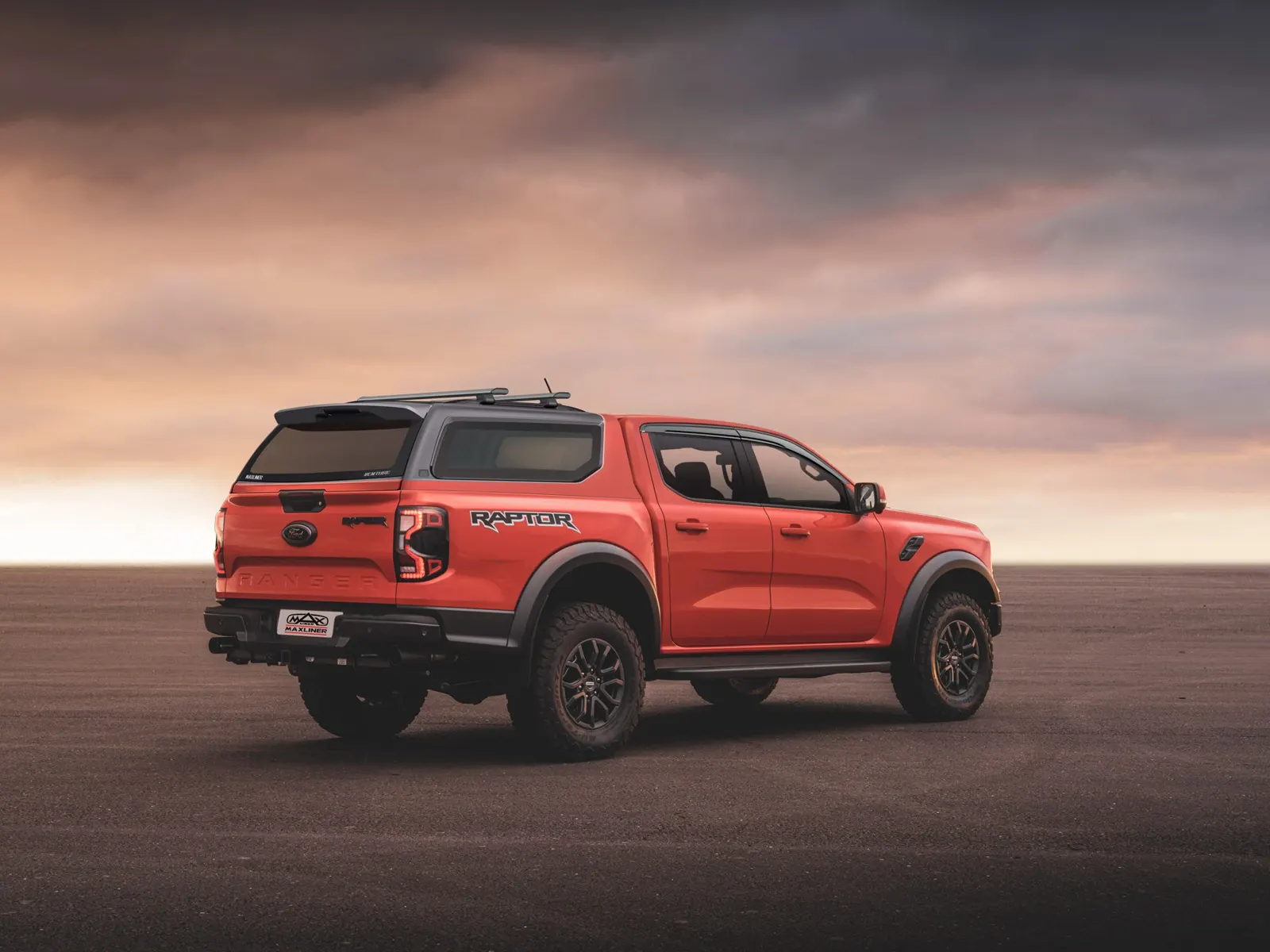

| Ranger 2022 on (incl. Raptor) | On request | $5,195 | Get price |
| Ranger 2022 on (incl. Raptor, Super Duty), HiLux 2015 to 2025, HiLux 2026 on, D-Max 2020 on, BT-50 2020 on, Amarok 2023 on, Navara 2026 on, BYD Shark, MV Triton | On request | $5,195 | Get price |
| Toyota HiLux N80 2015 to 2025 dual cab | S358J01TODM58X2 | $5,195 | Get price |

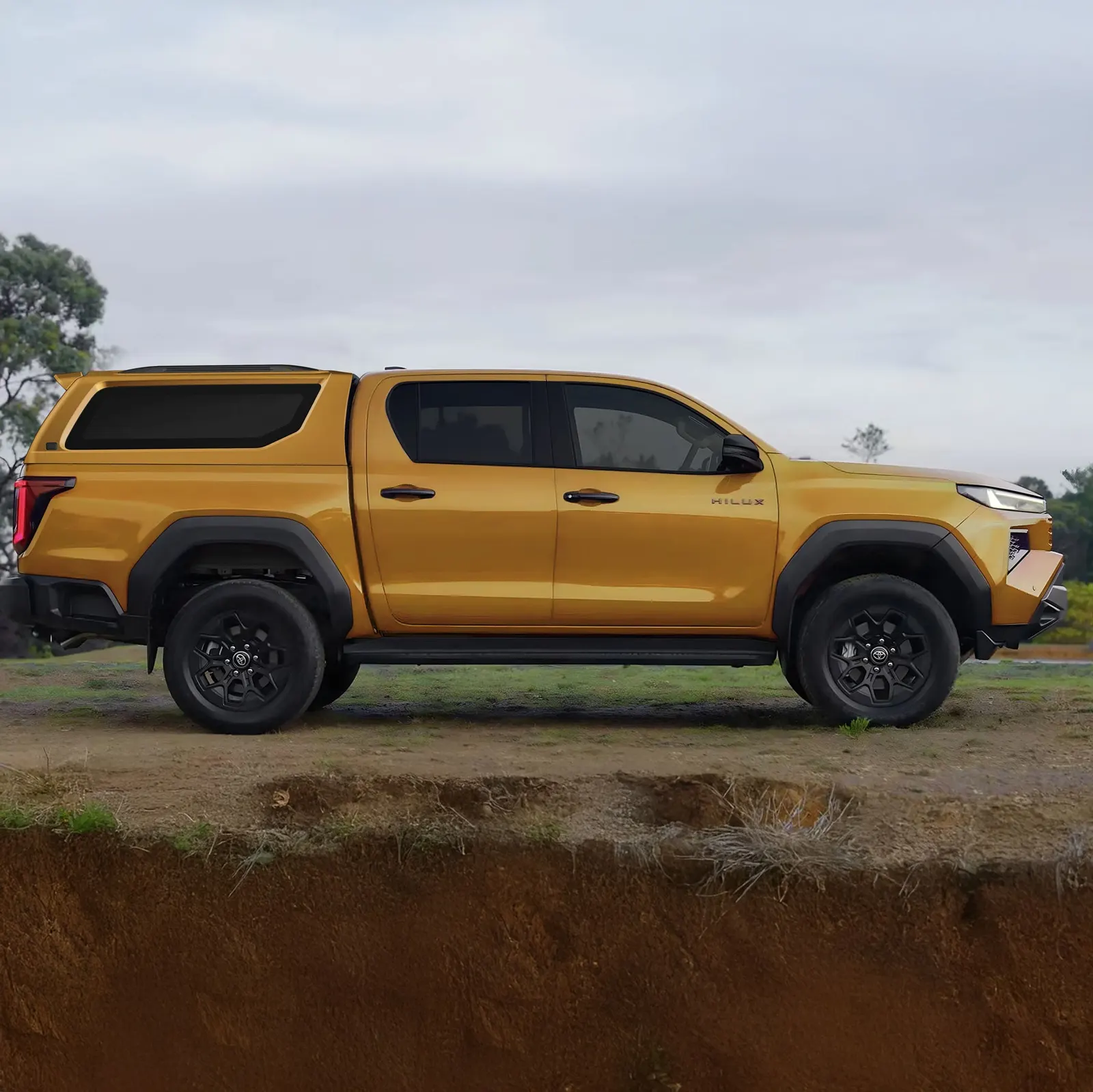

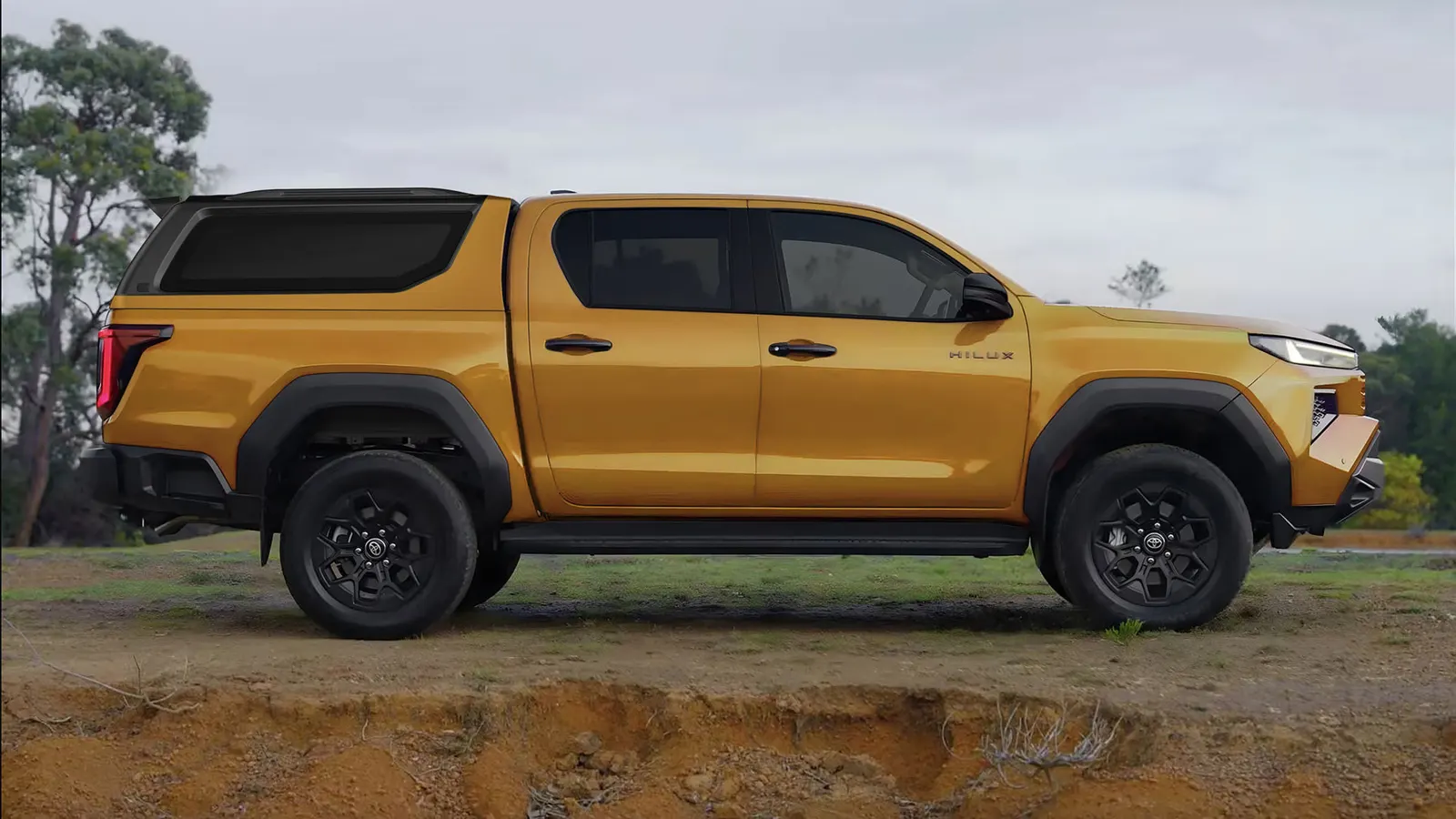

| Toyota HiLux N90 2026 on dual cab | S358J04TODM55C7 | $5,195 | Get price |

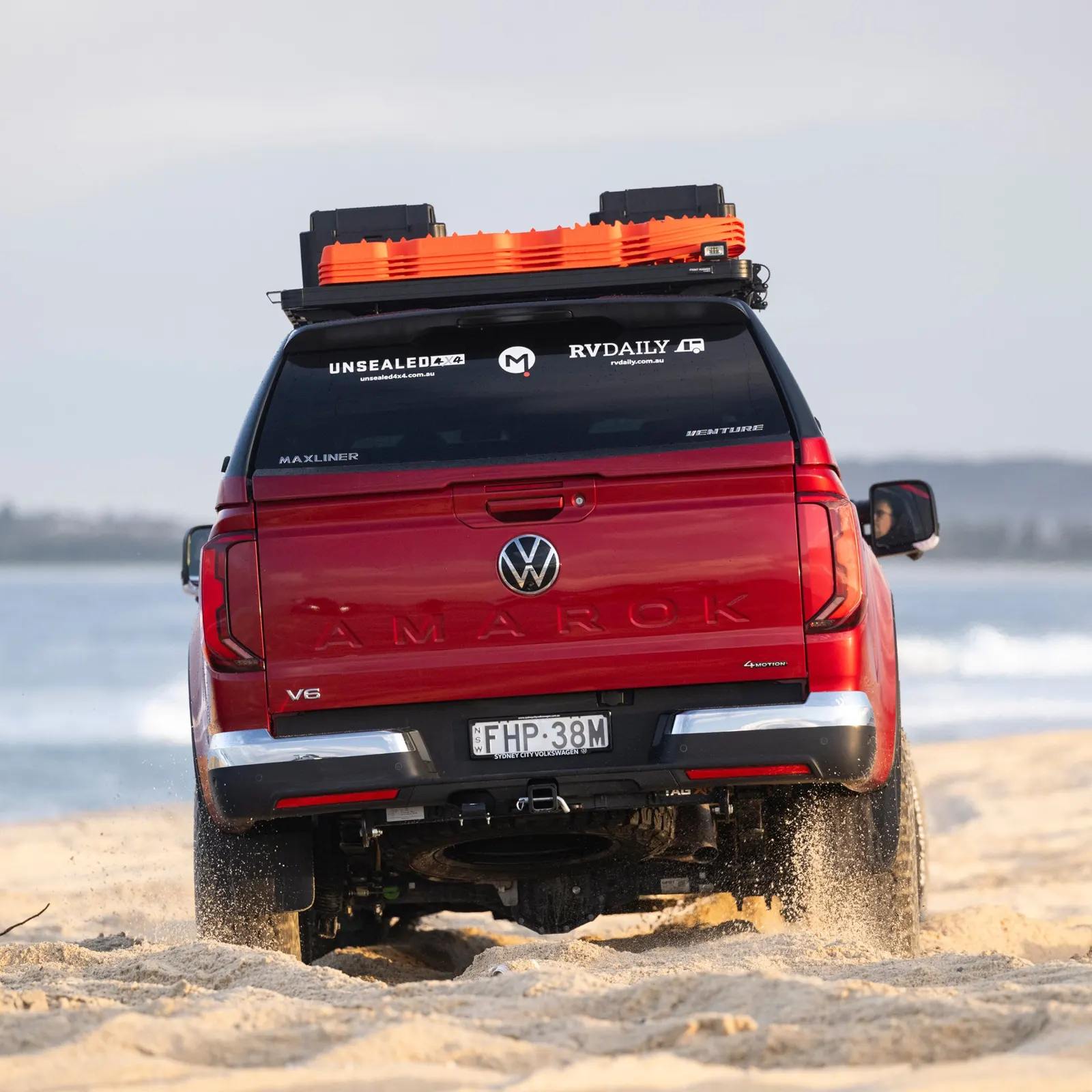

| Volkswagen Amarok 2023 on dual cab | S358E01VODV57I72 | $5,195 | Get price |
Video
Often fitted with the Venture Canopy Gen 2
Venture Canopy Side Window BoxMaxliner · From RRP $495

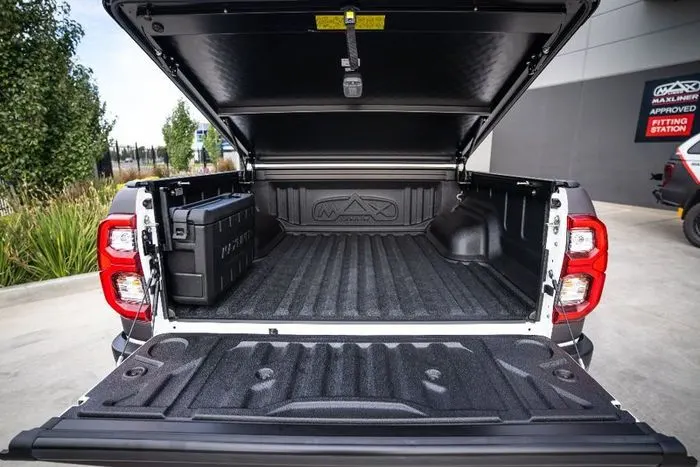

5 Piece Tub LinerMaxliner · From RRP $545

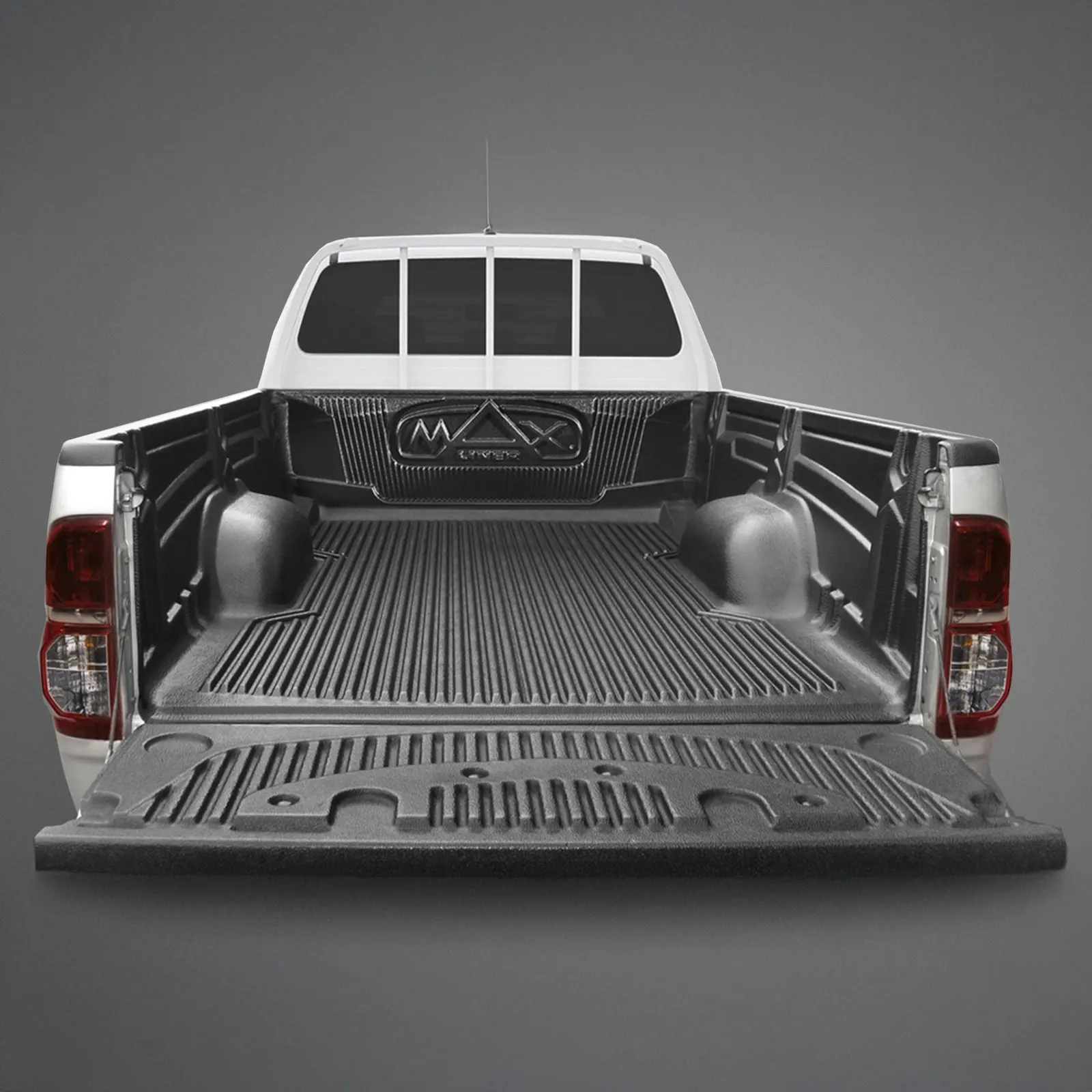

1 Piece Tub LinerMaxliner · From RRP $445Related products
