Nissan Patrol GU (Y61)

Every Tough Dog lift kit for the Nissan Patrol GU (Y61), with the springs matched to the weight you carry. Pick your setup below and we'll text you a fitted price.

Lift: 50 mm
Shock ranges: 4
Kit options: 36
Warranty: Up to 4 years

From RRP $2,331 + fitment (excl. freight)

Get your fitted price Call (07) 5572 1711 Text us

★ 4.9 from 1,732 Google reviews of The Garage Miami, home of Opposite Lock Gold Coast
Opposite Lock network member, nationwide warranty
Fitted in our Miami workshop. We only fit parts we supply.
Zip and Afterpay

We text you a fitted price within one business day.

Choose your setup

Options for the Nissan Patrol GU (Y61)

Foam Cell

The all-rounder for daily driving, touring and towing on a sensible budget.

40mm Adjustable (9 stage)

Owners who tow or change load often and want to tune ride without changing parts.

45mm Adjustable (9 stage)

Heavy wagons, big lifts and hard off-road or touring use where extra oil volume and rod strength count.

Ralph

Heavily loaded tourers and work vehicles that need maximum oil capacity on a fixed valving.

Foam Cell 9 kitsTough Dog's best selling all round shock, whether you head bush on the occasional weekend or most of the year.

Setup and load	Front and rear part numbers	Parts RRP	Quote
No bullbar / alloy bullbar, Light rear load (0-300KG)50 mm front, 50 mm rear	FC41047, TDC734L FC41404, BPN-010	$2,331	Get price
Steel bullbar, Light rear load (0-300KG)50 mm front, 50 mm rear	FC41047, TDC734L FC41404, BPN-010	$2,331	Get price
Bullbar + winch, Light rear load (0-300KG)50 mm front, 50 mm rear	FC41047, TDC734HL FC41404, BPN-010	$2,341	Get price
No bullbar / alloy bullbar, Medium rear load (300KG+ CONSTANT)50 mm front, 50 mm rear	FC41047, TDC734L FC41404, BPN-010H	$2,421	Get price
Steel bullbar, Medium rear load (300KG+ CONSTANT)50 mm front, 50 mm rear	FC41047, TDC734L FC41404, BPN-010H	$2,421	Get price
Bullbar + winch, Medium rear load (300KG+ CONSTANT)50 mm front, 50 mm rear	FC41047, TDC734HL FC41404, BPN-010H	$2,431	Get price
No bullbar / alloy bullbar, Heavy rear load (500KG+ CONSTANT)50 mm front, 50 mm rear	FC41047, TDC734L FC41404, FS39M-LH	$2,641	Get price
Steel bullbar, Heavy rear load (500KG+ CONSTANT)50 mm front, 50 mm rear	FC41047, TDC734L FC41404, FS39M-LH	$2,641	Get price
Bullbar + winch, Heavy rear load (500KG+ CONSTANT)50 mm front, 50 mm rear	FC41047, TDC734HL FC41404, FS39M-LH	$2,651	Get price

40mm Adjustable (9 stage) 9 kitsFor 4WDs that do it all (family car, tourer, tow rig, work ute); 9 stages to fine tune the ride.

Setup and load	Front and rear part numbers	Parts RRP	Quote
No bullbar / alloy bullbar, Light rear load (0-300KG)50 mm front, 50 mm rear	BM401047, TDC734L BM401404, BPN-010	$2,451	Get price
Steel bullbar, Light rear load (0-300KG)50 mm front, 50 mm rear	BM401047, TDC734L BM401404, BPN-010	$2,451	Get price
Bullbar + winch, Light rear load (0-300KG)50 mm front, 50 mm rear	BM401047, TDC734HL BM401404, BPN-010	$2,461	Get price
No bullbar / alloy bullbar, Medium rear load (300KG+ CONSTANT)50 mm front, 50 mm rear	BM401047, TDC734L BM401404, BPN-010H	$2,541	Get price
Steel bullbar, Medium rear load (300KG+ CONSTANT)50 mm front, 50 mm rear	BM401047, TDC734L BM401404, BPN-010H	$2,541	Get price
Bullbar + winch, Medium rear load (300KG+ CONSTANT)50 mm front, 50 mm rear	BM401047, TDC734HL BM401404, BPN-010H	$2,551	Get price
No bullbar / alloy bullbar, Heavy rear load (500KG+ CONSTANT)50 mm front, 50 mm rear	BM401047, TDC734L BM401404, FS39M-LH	$2,761	Get price
Steel bullbar, Heavy rear load (500KG+ CONSTANT)50 mm front, 50 mm rear	BM401047, TDC734L BM401404, FS39M-LH	$2,761	Get price
Bullbar + winch, Heavy rear load (500KG+ CONSTANT)50 mm front, 50 mm rear	BM401047, TDC734HL BM401404, FS39M-LH	$2,771	Get price

45mm Adjustable (9 stage) 9 kitsBig bore adjustable for big lift applications, up to six inches over factory in some vehicles.

Setup and load	Front and rear part numbers	Parts RRP	Quote
No bullbar / alloy bullbar, Light rear load (0-300KG)50 mm front, 50 mm rear	BMX1047/2, TDC734L BMX1404/2, BPN-010	$2,771	Get price
Steel bullbar, Light rear load (0-300KG)50 mm front, 50 mm rear	BMX1047/2, TDC734L BMX1404/2, BPN-010	$2,771	Get price
Bullbar + winch, Light rear load (0-300KG)50 mm front, 50 mm rear	BMX1047/2, TDC734HL BMX1404/2, BPN-010	$2,781	Get price
No bullbar / alloy bullbar, Medium rear load (300KG+ CONSTANT)50 mm front, 50 mm rear	BMX1047/2, TDC734L BMX1404/2, BPN-010H	$2,861	Get price
Steel bullbar, Medium rear load (300KG+ CONSTANT)50 mm front, 50 mm rear	BMX1047/2, TDC734L BMX1404/2, BPN-010H	$2,861	Get price
Bullbar + winch, Medium rear load (300KG+ CONSTANT)50 mm front, 50 mm rear	BMX1047/2, TDC734HL BMX1404/2, BPN-010H	$2,871	Get price
No bullbar / alloy bullbar, Heavy rear load (500KG+ CONSTANT)50 mm front, 50 mm rear	BMX1047/2, TDC734L BMX1404/2, FS39M-LH	$3,081	Get price
Steel bullbar, Heavy rear load (500KG+ CONSTANT)50 mm front, 50 mm rear	BMX1047/2, TDC734L BMX1404/2, FS39M-LH	$3,081	Get price
Bullbar + winch, Heavy rear load (500KG+ CONSTANT)50 mm front, 50 mm rear	BMX1047/2, TDC734HL BMX1404/2, FS39M-LH	$3,091	Get price

Ralph 9 kitsLargest bore shock in the range; Tough Dog says if you drive a fully laden off road tourer these are the shocks for you.

Setup and load	Front and rear part numbers	Parts RRP	Quote
No bullbar / alloy bullbar, Light rear load (0-300KG)50 mm front, 50 mm rear	TDR1047B, TDC734L TDR1404, BPN-010	$2,731	Get price
Steel bullbar, Light rear load (0-300KG)50 mm front, 50 mm rear	TDR1047B, TDC734L TDR1404, BPN-010	$2,731	Get price
Bullbar + winch, Light rear load (0-300KG)50 mm front, 50 mm rear	TDR1047B, TDC734HL TDR1404, BPN-010	$2,741	Get price
No bullbar / alloy bullbar, Medium rear load (300KG+ CONSTANT)50 mm front, 50 mm rear	TDR1047B, TDC734L TDR1404, BPN-010H	$2,821	Get price
Steel bullbar, Medium rear load (300KG+ CONSTANT)50 mm front, 50 mm rear	TDR1047B, TDC734L TDR1404, BPN-010H	$2,821	Get price
Bullbar + winch, Medium rear load (300KG+ CONSTANT)50 mm front, 50 mm rear	TDR1047B, TDC734HL TDR1404, BPN-010H	$2,831	Get price
No bullbar / alloy bullbar, Heavy rear load (500KG+ CONSTANT)50 mm front, 50 mm rear	TDR1047B, TDC734L TDR1404, FS39M-LH	$3,041	Get price
Steel bullbar, Heavy rear load (500KG+ CONSTANT)50 mm front, 50 mm rear	TDR1047B, TDC734L TDR1404, FS39M-LH	$3,041	Get price
Bullbar + winch, Heavy rear load (500KG+ CONSTANT)50 mm front, 50 mm rear	TDR1047B, TDC734HL TDR1404, FS39M-LH	$3,051	Get price

Prices are Tough Dog's published RRPs for the parts, checked 21 October 2026, plus fitment and a wheel alignment, excluding freight. Tough Dog publishes one price per complete kit.

Ready to book it in? Tell us your vehicle and what you carry, and we text you a fitted price within one business day.

Get your fitted price Call (07) 5572 1711

Front end

Front components

**Foam Cell front shock absorber**FC41047Foam Cell shock (twin tube with a micro-cellular foam insert that fights shock fade, 18mm double chrome-plated rod).

**Ralph front shock absorber**TDR1047BRalph shock (50mm bore, 70mm body, 20mm rod, carries the most oil for heavily loaded tourers).

**40mm Adjustable front shock absorber**BM40104740mm Adjustable shock (40mm bore, 60mm body, 18mm rod, Foam Cell, 9 stage external adjustment).

**45mm Adjustable front shock absorber**BMX1047/245mm Adjustable shock (45mm bore, 70mm body, 22mm rod, Foam Cell, 9 stage external adjustment).

**Front coil springs (pair)**TDC734HL, TDC734LFront coils matched by Tough Dog to the front accessory setup (no bar, steel bar, bar and winch and so on).

**Greasable front shackles**TDGS-357Greasable shackles let you push grease through the joint and flush out dirt, protecting the bushes.

**Adjustable front panhard rod (optional)**TDPR-004Optional extra.

**EXT heavy duty steering damper (optional)**EXT5000Optional extra.

Show all 10 front parts

**Return to centre steering damper (optional)**SS5000-P/SOptional extra.

**SV 9 stage adjustable steering damper (optional)**SV5000Optional extra.

Rear end

Rear components

**Foam Cell rear shock absorber**FC41404Foam Cell shock (twin tube with a micro-cellular foam insert that fights shock fade, 18mm double chrome-plated rod).

**Ralph rear shock absorber**TDR1404Ralph shock (50mm bore, 70mm body, 20mm rod, carries the most oil for heavily loaded tourers).

**40mm Adjustable rear shock absorber**BM40140440mm Adjustable shock (40mm bore, 60mm body, 18mm rod, Foam Cell, 9 stage external adjustment).

**45mm Adjustable rear shock absorber**BMX1404/245mm Adjustable shock (45mm bore, 70mm body, 22mm rod, Foam Cell, 9 stage external adjustment).

**Rear leaf springs, 0-300kg**BPN-010Progressive rate leaf pack rated for 0-300kg of permanent load, military wrap.

**Rear leaf springs, constant 300kg**BPN-010HProgressive rate leaf pack rated for constant 300kg of permanent load, military wrap.

**Rear leaf springs, constant 500kg**FS39M-LH, FS39M-RHProgressive rate leaf pack rated for constant 500kg of permanent load, military wrap.

**U-bolt kit**TDUB-023New high tensile U-bolts.

Show all 12 rear parts

**Urethane bush kit**TDUK-012, TDUK-054/2Urethane spring and shackle bushes, tougher and longer lasting than rubber.

**Greasable rear spring pins**TDGP-667Greasable spring pins that keep dust and salt out of the bushes.

**Air Assist bellows airbags (optional)**TDAA-110Optional extra.

**Wireless Air on-board compressor kit (optional)**TDAS-001Optional extra.

Specifications

Vehicle	Nissan Patrol GU (Y61) (1997-2016)
Brand	Tough Dog
Shock ranges	Foam Cell, 40mm Adjustable (9 stage), 45mm Adjustable (9 stage), Ralph
Lift heights	50 mm front, 50 mm rear
Front loads	Bullbar + winch, No bullbar / alloy bullbar, Steel bullbar
Rear loads	Heavy rear load (500KG+ CONSTANT), Light rear load (0-300KG), Medium rear load (300KG+ CONSTANT)
Shock ranges	Foam Cell, Ralph, 40mm Adjustable, 45mm Adjustable
Lift front	50mm
Lift rear	50mm
Rear load options	Light rear load, 0-300kg; Medium rear load, 300kg+ constant; Heavy rear load, 500kg+ constant
Front setups	no bull bar or alloy bull bar; steel bull bar; bull bar and winch
Foam Cell shocks	twin tube with a micro-cellular foam insert that fights shock fade, 18mm double chrome-plated rod
Ralph shocks	50mm bore, 70mm body, 20mm rod, carries the most oil for heavily loaded tourers
40mm Adjustable shocks	40mm bore, 60mm body, 18mm rod, Foam Cell, 9 stage external adjustment
45mm Adjustable shocks	45mm bore, 70mm body, 22mm rod, Foam Cell, 9 stage external adjustment
Kit RRP (Tough Dog Build & Buy)	$2,331 to $3,091

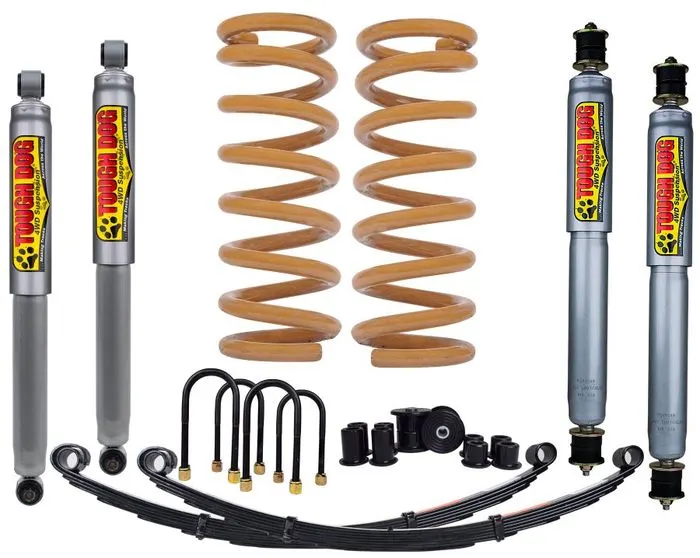

Kit layout images	td-kits-coil-leaf.jpg

Warranty

Tough Dog warranty

Ralph & 45mm Adjustable Shocks: 4 year/unlimited km recreational, 3 year/unlimited km commercial.

Fitted by us in Miami and backed by the Opposite Lock network nationwide.

Fitted in Miami

Set up properly, aligned and road legal

We fit Tough Dog kits at our Miami workshop with a wheel alignment, and pick the springs for what you actually carry. In Queensland you can lift a 4WD up to 50 mm with suspension without engineering, as part of a 75 mm total with tyres. Carrying a heavy canopy or touring load? We also check your build against your GVM.

Ready to book it in? Tell us your vehicle and what you carry, and we text you a fitted price within one business day.

Get your fitted price Call (07) 5572 1711

Downloads

Tough Dog product brochure (shocks, springs, airbags, UCAs, steering dampers)PDF from Tough Dog

Video

Video: Anatomy Part 4 - Leaf Springs — Anatomy Part 4 - Leaf Springs
